| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | RMG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD50000-100000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 18-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Port Container Gantry Crane With Spreader | Max. Lifting Height: | 12m~21m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 80t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 35-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | RMG Double Girder Gantry Crane,40ft Container Double Girder Gantry Crane,35m Span Port Container Crane |
||
RMG Crane for 40ft Container Double Girder Gantry Crane For Port
Description:
Container gantry cranes are suitable for handling, loading and unloading containers in railway station yards, ports, takeaways, etc. This type of crane uses a U-shaped frame, which is divided into two types:
One is the rail-mounted gantry crane, and the other is the tire-mounted gantry crane. The clear space for the container to move to the sides is greater. The whole crane moves on rails mounted on the ground or directly on the ground, faster and more stable. The power supply is a cable reel. The whole job duty is A6, we can design non-standard according to your request.
Technical characteristics of rail-mounted container gantry cranes:
1. The energy feedback device can effectively save energy.
2. The eight-rope anti-sowing mechanism in the container spreader space can effectively prevent the spreader from swinging and twisting.
3. The intelligent fault detection system can better perform fault analysis and early warning on the equipment.
4. The separate electrical room and the running trolley reduce the running load of the trolley and reduce the energy consumption.
5. The advanced automatic deviation correction system for carts reduces the problem of the carts gnawing on the rails and improves the service life of the equipment.
6. The intelligent safety monitoring and management system is better suited to the needs of cargo yard safety monitoring and automated management.
Specification:
Rail mounted container gantry crane drawing:
1.Crane power supply system
2.Trolley power supply system
3.Main girder
4.Trolley assembly
5.Ton board
6. Handrail
7. Electrical box
8.Rail clamping device
9.Bogie
10.Anchor
11.Maintenance crane
12.Anemoscope & lightning conductor
|
Capacity (under the spreader)/t |
35 |
40.5 |
50 |
65 |
||
|
Working class |
A6~A7 |
|||||
|
Span/m |
35 |
|||||
|
Overhung length/m |
12 |
|||||
|
Base distance/m |
16 |
|||||
|
Lifting height/m |
15.4 |
15.4 |
18.2 |
18.2 |
||
|
Speed |
Hoisting/m/min |
Load |
12 |
12 |
18 |
18 |
|
No-load |
24 |
24 |
36 |
36 |
||
|
Trolley travelling/m/min |
60 |
60 |
75 |
75 |
||
|
Crane travelling/m/min |
45 |
45 |
45 |
45 |
||
|
Total power/kw |
~200 |
~230 |
~255 |
~300 |
||
|
Max. working load of wheel |
260 |
265 |
280 |
300 |
||
|
Crane steel rail recommended |
QU70 |
QU70 |
QU70 |
QU80 |
||
|
Power supply |
3AC 380~660V 50/60Hz |
|||||
Application:
RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
Crane Detail:
Rubber tyre container gantry crane

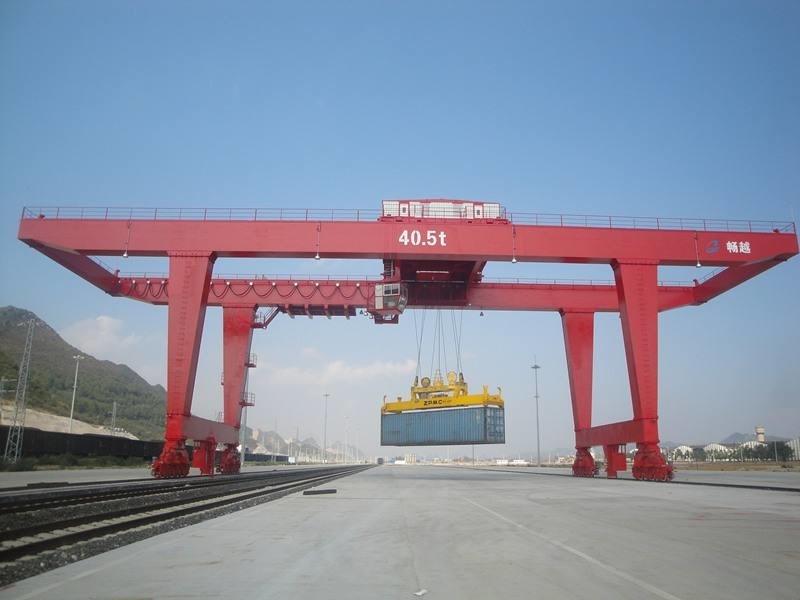

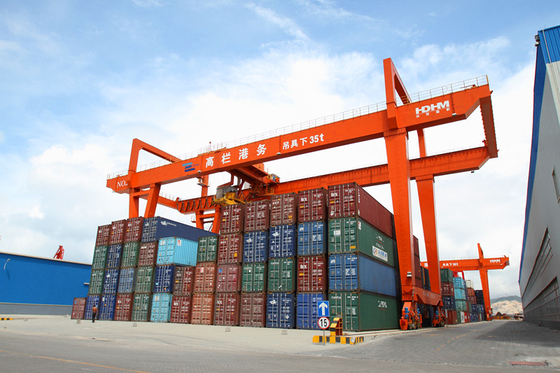

Rail Mounted Container Gantry Cranes
