| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz 3P | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Hoisting Speed: | Standard, Single Speed / Double Speed | ||
| High Light: | 11.2mm 5 Ton Electric Chain Hoist,Dia 6.3mm 5 Ton Electric Chain Hoist,1 ton electric chain hoist with motorized trolley |
||
Stable Rapid And Low Noise Electric Chain Hoist With Electric Motorized Trolley 1 Ton 2 Ton 3 Ton 5 Ton
Product Overviews:
"Electric chain hoist", also known as electric chain hoist, is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. The most advanced technology in the world is adopted, with fine workmanship and tight fit between the gears.
Technical Parameter:
|
Model |
Loading capacity |
Lifting speed |
Lifting height |
Chain Dia. |
Power supply |
|
|
Single speed |
Dual speed |
|||||
|
Ton |
m/min |
m |
mm |
V,HZ,Phase |
||
|
0.5-01 |
0.5 |
11.8 |
11.8/2.4 |
1~130 |
6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
|
01-01 |
1 |
6.6 |
6.9/2.3 |
7 |
||
|
1.5-01 |
1.5 |
8.8 |
8.9/2.9 |
10 |
||
|
02-01 |
2 |
6.6 |
6.8/2.3 |
10 |
||
|
02-02 |
2 |
3.3 |
3.3/1.1 |
7.1 |
||
|
2.5-01 |
2.5 |
5.4 |
5.4/1.8 |
11.2 |
||
|
03-01 |
3 |
5.4 |
5.4/1.8 |
11.2 |
||
|
03-02 |
3 |
4.4 |
4.5/1.5 |
10 |
||
|
03-03 |
3 |
2.2 |
2.3/0.8 |
7.1 |
||
|
05-02 |
5 |
2.7 |
2.7/0.9 |
11.2 |
||
|
7.5-03 |
7.5 |
1.8 |
1.8/0.6 |
11.2 |
||
|
10-04 |
10 |
2.7 |
2.7/0.9 |
11.2 |
||
|
15-06 |
15 |
1.8 |
1.8/0.6 |
11.2 |
||
|
20-08 |
20 |
1.4 |
1.3/0.4 |
11.2 |
||
|
25-10 |
25 |
1.3 |
1.2/0.4 |
11.2 |
||
|
30-10 |
30 |
1 |
|
11.2 |
||
|
35-12 |
35 |
0.9 |
|
11.2 |
||
|
40-16 |
40 |
0.7 |
|
11.2 |
||
|
45-16 |
45 |
0.6 |
|
11.2 |
||
|
50-20 |
50 |
0.54 |
|
11.2 |
||
Application :
The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters. The characteristics of the electric chain hoist: advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range, and heavy lifting. It is very convenient for loading and unloading, maintenance of equipment, and lifting of goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects.
Advantages & Features of Chain Hoist:
* Electric Chain Hoist is highly effective and Compact Aluminum Body
* Electric chain hoist is light weight
* With Extremely durable and reliable Pull Rotor Motor Brake.
* Durable Push-Button Pendant for easy, one-handed operation
* Easy Maintenance, fast, easy, and trouble free
* Long-Life Friction Clutch protects hoist from damage and prevents over winding
* Suction rotary motor brake, precisely and effectively make the hoist stop running, even when low power.
* Low-noise transmission gear: intensive alloy steel are soaked in the oil so that the hoist will serve longer life.
Photos:
 |

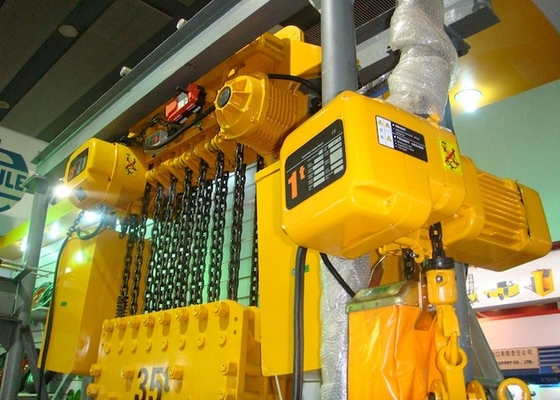

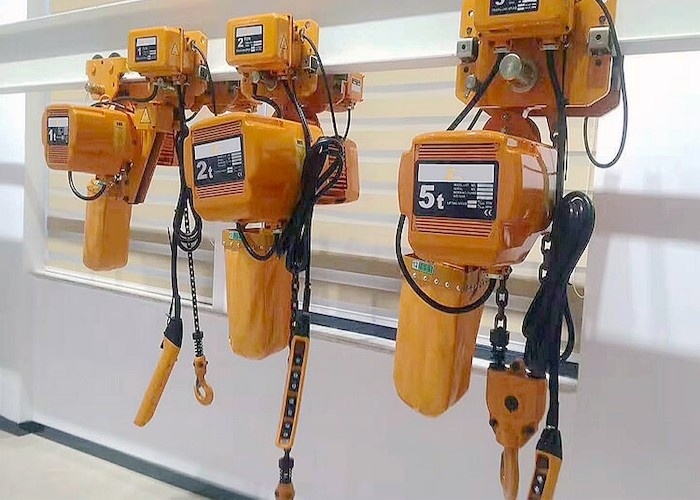

Electric chain hoist with electric trolley
|
Electric chain hoist with manual plain trolley
|
 |
 |
Suspend hook electric chain hoist
|
Low headroom electric chain hoist
|
 |
 |
Heavy duty electric chain hoist
|
