| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | HHBB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-8000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Chain Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | IP55 6 ton chain hoist,SANTO 6 ton chain hoist,0.1Ton Light Weight chain hoist |
||
Small Size Light Weight Electric Chain Hoist 0.1t To 6t Lifting Height 3m To 120m
Product Overviews:
"Electric chain hoist", also known as electric chain hoist, is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. The most advanced technology in the world is adopted, with fine workmanship and tight fit between the gears.
The chain hoist series was designed for heavy duty industrial applications, which greatly reduce down time and operational costs. Santo chain hoists tolerate large loads with ease and require little maintenance. They provide more allowance for side pulling, and provide true vertical lift and no extra cost.
Specification:
|
Lifting capacity : |
0.5~50 ton |
|

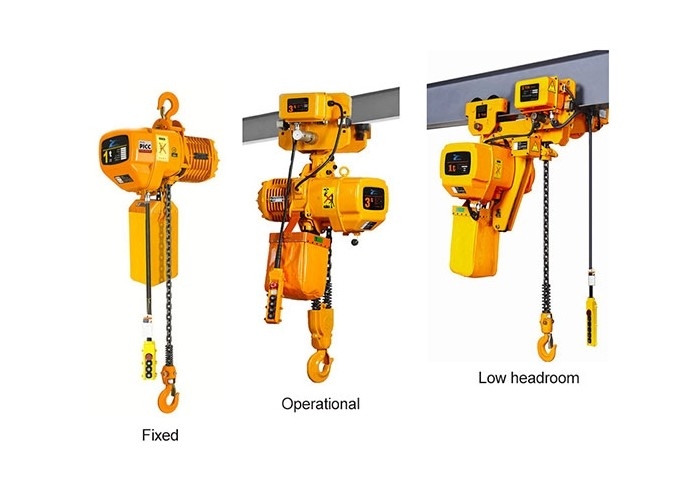

Type : |
Hook suspension, Mortorized trolley, Manual plain / geared trolley |
|
Sling Type : |
Chain |
|
Maximum Lifting Height : |
130m |
|
Controller : |
Pendant control, remote control |
|
Low noise : |
81db |
|
Insulation grade : |
F class |
|
Working temperature : |
-40 ℃ ~ +40 ℃ |
|
Power supply : |
200V~690V,50~60HZ, 1 or 3 Phase |
|
Safe voltage : |
24/36/48V |
|
Protection class : |
IP55 |
|
Working grade : |
M4 |
|
Certification : |
ISO9001:2008, CE |
Technical Parameters:
| Model | Loading capacity | Lifting speed | Lifting height | Chain Dia. | Power supply | |
| Single speed | Dual speed | |||||
| Ton | m/min | m | mm | V,HZ,Phase | ||
| 0.5-01 | 0.5 | 11.8 | 11.8/2.4 | 1~130 | 6.3 |
220~690V,50/60HZ Three phase, single phase optional. |
| 01-01 | 1 | 6.6 | 6.9/2.3 | 7 | ||
| 1.5-01 | 1.5 | 8.8 | 8.9/2.9 | 10 | ||
| 02-01 | 2 | 6.6 | 6.8/2.3 | 10 | ||
| 02-02 | 2 | 3.3 | 3.3/1.1 | 7.1 | ||
| 2.5-01 | 2.5 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-01 | 3 | 5.4 | 5.4/1.8 | 11.2 | ||
| 03-02 | 3 | 4.4 | 4.5/1.5 | 10 | ||
| 03-03 | 3 | 2.2 | 2.3/0.8 | 7.1 | ||
| 05-02 | 5 | 2.7 | 2.7/0.9 | 11.2 | ||
| 7.5-03 | 7.5 | 1.8 | 1.8/0.6 | 11.2 | ||
| 10-04 | 10 | 2.7 | 2.7/0.9 | 11.2 | ||
| 15-06 | 15 | 1.8 | 1.8/0.6 | 11.2 | ||
| 20-08 | 20 | 1.4 | 1.3/0.4 | 11.2 | ||
| 25-10 | 25 | 1.3 | 1.2/0.4 | 11.2 | ||
| 30-10 | 30 | 1 | 11.2 | |||
| 35-12 | 35 | 0.9 | 11.2 | |||
| 40-16 | 40 | 0.7 | 11.2 | |||
| 45-16 | 45 | 0.6 | 11.2 | |||
| 50-20 | 50 | 0.54 | 11.2 | |||

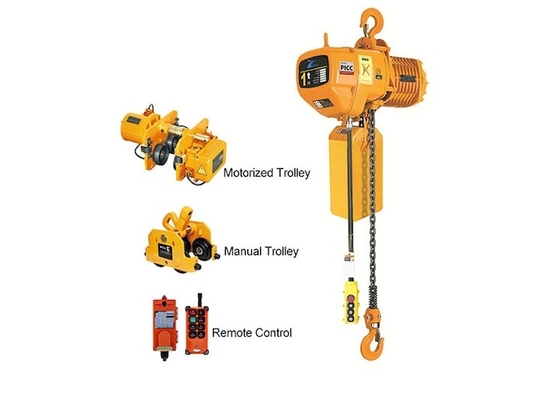

Trolley model:
Applications:
Electric Chain Hoists are high quality products built for long service in industrial applications.
Electric chain hoist is widely used in factories, warehouse, workshop, harbour, docks, especially in raising working efficiency and improving working condition.
Advantages & Design Features:
With suspension hook. push, geared or electric trolley.
Standard lift height 3 m, control cable 2.5m
Operating voltage 220-440V, 50/60Hz, 1-3 phase
Low voltage control 36V is standard.
High efficient energy-saving motor, asbestos free brake system.
Light weight, compact and solid body case.
Top and bottom hooks are fitted with safety latches as standard.
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
Solid chain bucket.
Super strong surface hardened chain
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
Overload protection and thermal protection.
