| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | RMG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD50000-100000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 18-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Port Container Gantry Crane With Spreader | Max. Lifting Height: | 12m~21m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 80t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 35-50t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 40' 20' Port Container Crane,220V Port Container Crane,SANTO shipping container crane |
||
Prevent Swinging And Twisting Port Container Crane Suitable For 40' 20' Container
Description:
The rail-mounted container gantry crane is operated by the driver operating the linkage table in the cab. The cab is generally suspended under the trolley and runs with the trolley. All operations of the crane can be realized on the cab linkage platform. The trolley can also be operated on the running side of the trolley to facilitate the temporary displacement of the crane. When operating on the running side of the cart, it is electrically interlocked with the main operating linkage platform.
The drive control of the rail-mounted container gantry crane is currently commonly used for the AC variable frequency speed control system. The control system is mostly controlled by communication, and the interior of the container is mostly wired, which is characterized by high speed and high reliability. An optional crane integrated management system can be installed to transmit data wirelessly with the external control room, and to continuously monitor the crane's operating system, diagnose faults and collect data sets by cooperating with logic control.
Advanced Design:
Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.
The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.
The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.
The number of wheels and drive mechanisms can be customized according to your specific application.
All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.
Specification:
Rail mounted container gantry crane drawing:
1.Crane power supply system
2.Trolley power supply system
3.Main girder
4.Trolley assembly
5.Ton board
6. Handrail
7. Electrical box
8.Rail clamping device
9.Bogie
10.Anchor
11.Maintenance crane
12.Anemoscope & lightning conductor
|
Capacity (under the spreader)/t |
35 |
40.5 |
50 |
65 |
||
|
Working class |
A6~A7 |
|||||
|
Span/m |
35 |
|||||
|
Overhung length/m |
12 |
|||||
|
Base distance/m |
16 |
|||||
|
Lifting height/m |
15.4 |
15.4 |
18.2 |
18.2 |
||
|
Speed |
Hoisting/m/min |
Load |
12 |
12 |
18 |
18 |
|
No-load |
24 |
24 |
36 |
36 |
||
|
Trolley travelling/m/min |
60 |
60 |
75 |
75 |
||
|
Crane travelling/m/min |
45 |
45 |
45 |
45 |
||
|
Total power/kw |
~200 |
~230 |
~255 |
~300 |
||
|
Max. working load of wheel |
260 |
265 |
280 |
300 |
||
|
Crane steel rail recommended |
QU70 |
QU70 |
QU70 |
QU80 |
||
|
Power supply |
3AC 380~660V 50/60Hz |
|||||
Application:
RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.
Crane Detail:
Rubber tyre container gantry crane

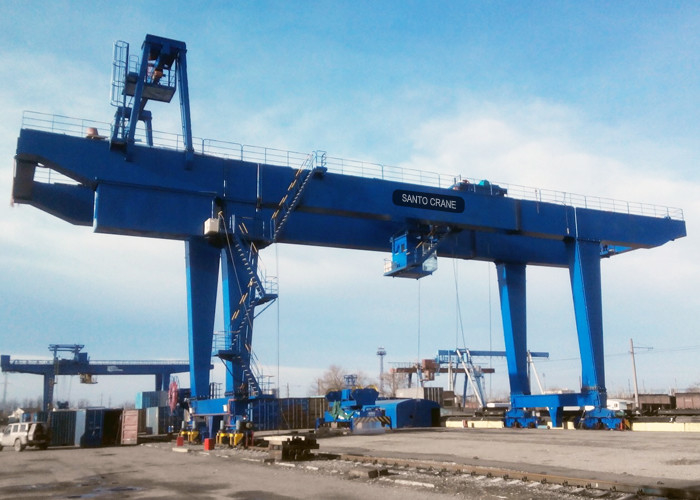

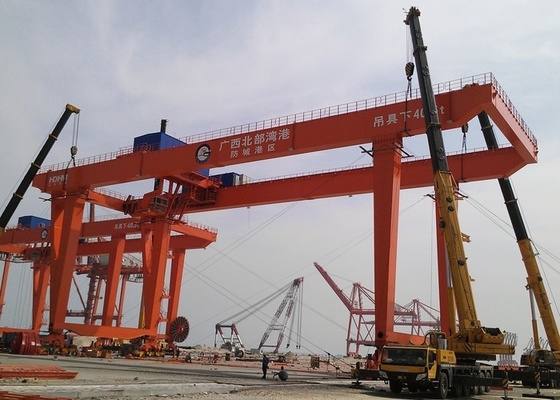

Rail Mounted Container Gantry Cranes
Looking forward to receiving your inquiry with the below detailed information:
1. SWL/ Load capacity:?
2. Span:?
3. Lift Height:?
4. Standard voltage: 380V 50Hz,3p, AC, is it ok?
5. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
