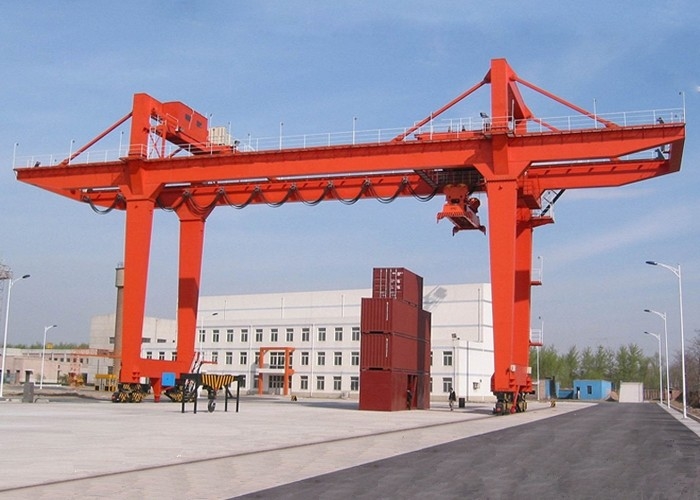

40T 50T Rail Mounted Port Container Crane Gantry Crane Rail Track 18-35m Span

40 50T Rail - Mounted Container Store Cranes , Upper Trolley Rotates Port Container Crane

Description:

Rail-mounted container store cranes are mainly used for container unloading, handling and stacking in container railway transshipment yards and large container storage and transportation yards. Rail-mounted container gantry crane is composed of main beam, rigid and flexible gantry legs, running trolley, hoisting mechanism, cart running mechanism, electrical system, operating cab, etc. Rail-mounted container gantry cranes generally require a large clearance in the width direction of the door legs, so the upper part of the door leg is opened into a U shape and the upper part of the door leg is connected, and a trolley maintenance frame is erected. The rail-mounted container gantry crane can load and unload 20', 40', 45' international standard containers. The lifting weight is generally 36t and 40.5t. Depending on the site, the container storage and transportation process and the vehicles to be loaded and unloaded; the span is divided into 26m, 30m, and 35m; the cantilever has structural forms such as cantilever, single cantilever and double cantilever; The pile is divided into four and five; the upper trolley rotates and the lower spreader rotates.

Features:

• Robust structure
• Anti-sway system
• Equipped with specific spreader
• High reliability components
• Accurate spreader positioning
• Increased productivity
• Smooth operation
• Low maintenance care
• Low energy consumption

Advanced Design:

Generally, the crane is suitable for yard stacking of containers with 3-4 layers and 6 rows wide. It can be designed and manufactured to meet your individual needs in a variety of different stacking heights and spans.

The power supply can be cable reels or slip line to reduce your operating costs and be energy-efficient.

The container crane is designed with remote and automatic control, which ensures a safe and more efficient operation.

The number of wheels and drive mechanisms can be customized according to your specific application.

All in all, backed by professional engineers, we can tailor the gantry crane to meet each and every requirement of customers.

Specification:

Rail mounted container gantry crane drawing:

• 1.Crane power supply system

• 2.Trolley power supply system

• 3.Main girder

• 4.Trolley assembly

• 5.Ton board

• 6. Handrail

• 7. Electrical box

• 8.Rail clamping device

• 9.Bogie

• 10.Anchor

• 11.Maintenance crane

• 12.Anemoscope & lightning conductor

Application:

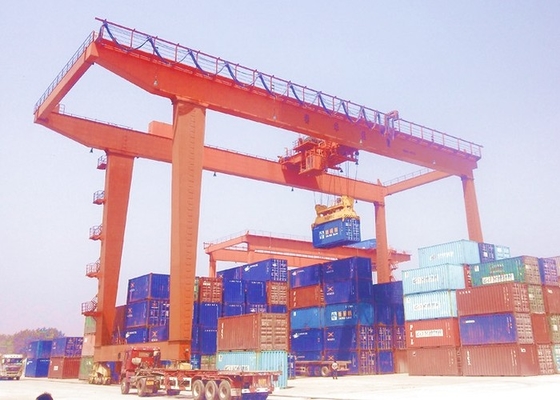

RMGs are special gantry crane equipment, is commonly used mainly used in container yard, wharf, storage and some other place which will use container, such as container terminals to handle large containers. The crane has fast running speed and high working level, gives exceptionally smooth operation and speeds up the turnover of the container carrier or other cranes. According to your specific application, we will design the most suitable crane system to maximize your work efficiency and safety.

Crane Detail:

Rubber tyre container gantry crane

Rail Mounted Container Gantry Cranes
