Light Self - Weight Double Girder Overhead Crane Heat - Resistant For Metallurgy Steel Mill
Taking advantages of the rich industrial experience and professional crane technology, Santocrane customized crane can meet the demands of all aspects of steel and metal production and processing industries. Our customized crane can be used under harsh conditions, and can work well in environment with high temperature, high grade dust and strong vibration. We can provide correct crane solutions for various kinds of applications for steel mill.
Advanced Design:
QDY Type Double Girder Overhead Crane can also achieve remote control through telemetry and remote control technology, to ensure that the equipment can be used in high dust, high pollution, high temperature and other harsh environment, improve its adaptability and greatly expand its work range.
Considering the lifting objects of metallurgical cranes are relatively complex, including liquid metal, nuclear materials, large equipment, etc., so for the safety of personnel and equipment, it is necessary to install safety brakes in the main lifting mechanism of metallurgical cranes, through the mechanical control of hydraulic mechanism.
When the QDY Type Double Girder Overhead Crane starts, the safety brake works first, and the working brake on the high-speed shaft starts working again. When the metallurgical crane brake, the working brake brake, the safety brake brake according to the preset time delay. In this way, it can be ensured that when the transmission part in the transmission link is damaged or broken, the object being hoisted is in a safe state.
Technical Specification:
1. QDY Type Steel Mill Double Girder Overhead Crane
Lifting Capacity | T | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | |
Span | m | 10.5-31.5 | |||||||
Speed | Main Hook Lifting | m/min | 15.5 | 10.4 | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
Aux. Hook Lifting | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
Traveling of Trolley | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 39.3 | 33.8 | ||
Crane travelling | 92.7/93.7 |
92.7/86.5 |
76/89 | 76/89 | 89/75.3 | 75/76.6 | 67.3 | ||
Operational Model | Cabin | ||||||||
Working Duty | A7 | ||||||||
Power Supply |
Three-phase A.C. 380V, 50Hz or customized |
2. YZ YZS Type Steel Mill Double Girder Overhead Crane
Lifting Capacity(t) | 200/50 | 225/65 | 240/80 | 280/65 | 320/80 | |
Working Class | A7 | A7 | A7 | A7 | A7 | |
Span(m) | 28 | 27 | 22 | 21 | 24.5 | |
Lifting Height | Main hook | 26 | 32 | 25 | 24 | 28 |
Auxiliary hook | 26 | 34 | 27 | 26 | 32 | |
Speed | Main hook | 6 | 11 | 7 | 10 | 7.5 |
Auxiliary hook | 10 | 11 | 9.6 | 12 | 10 | |
Main Trolley | 41 | 41 | 35 | 30 | 29 | |
Auxiliary Trolley | 38 | 39.5 | 38 | 39 | 39 | |
Crane | 78 | 84 | 80 | 76 | 58 | |
Dimensions (mm) | H | 6900 | 7000 | 7000 | 7600 | 7800 |
H1 | 6000 | 5990 | 5650 | 6400 | 6500 | |
H2 | 1650 | 1400 | 1350 | 1350 | 1500 | |
B | 1700 | 17300 | 18500 | 19200 | 19500 | |
B1 | 10000 | 10100 | 11250 | 12000 | 12500 | |
B2 | 3200 | 3300 | 3800 | 3800 | 5000 | |
Limit dimestion (mm) | b | 450 | 450 | 450 | 500 | 500 |
H3 | 6000 | 5800 | 5500 | 5900 | 6000 | |
H4 | 1000 | 1000 | 1500 | 1500 | 1700 | |
S1 | 2600 | 2500 | 2800 | 3200 | 3300 | |
S2 | 3000 | 3000 | 3200 | 3500 | 3500 | |
S3 | 2000 | 2200 | 2400 | 2400 | 2600 | |
S4 | 1600 | 1600 | 2800 | 2800 | 3000 | |
Max wheel load(kN) | 530 | 550 | 545 | 595 | 650 | |
Steel track recommended | QU120 | |||||
Power source | 3-Phase A.C. 380V 50Hz |

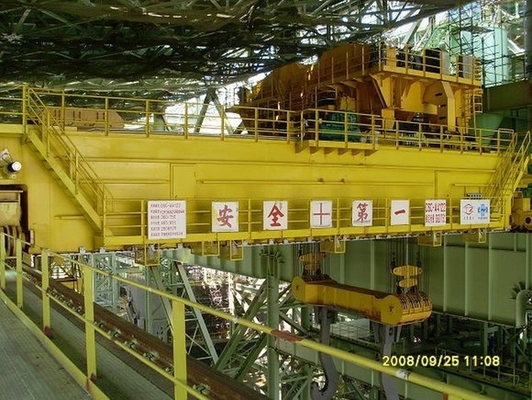

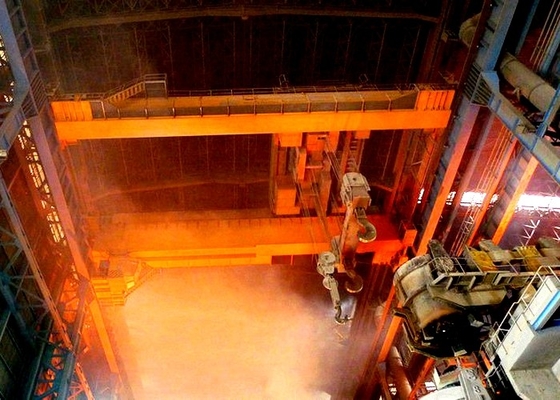

Crane Photos:
