| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | QDY, YZ, YZS, QL, QZ, QC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD10000-60000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-38m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Electric Overhead Travelling Bridge Crane | Max. Lifting Height: | 10m~35m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 320t |
| Application: | Steel Factory, Ladle Lifting, Casting, Foundry | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Double Girder Overhead Crane |
| Type: | Heavy Duty Double Girder Overhead Crane, EOT Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 280/65 Ton Overhead Steel Mill Crane,225/65 Ton Overhead Steel Mill Crane,Scrap Yard Furnace Charging Crane |
||

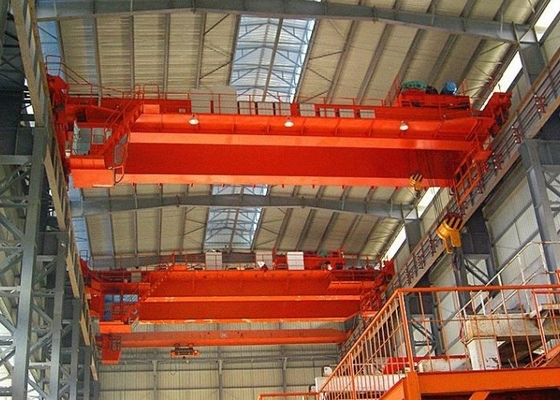

Overhead Steel Mill Crane Smooth Lifting And Less Impact For Steel And Metallurgical Industries
Introduction:
santocrane has the expertise and the technology to help you perform the tough, dangerous lifting work required in the steel and metallurgy industry. We work with you to provide equipment to lift heavy and dangerous items throughout your operation, from moving iron ore and recycled steel to pouring hot metal and shaping products in the rolling mill and finally the intelligent handling of finished steel products.
If you need detailed information and targeted solutions, please contact us, we will arrange professional technical engineers to serve you.
Capcaty of double beam overhead crane: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 74/20T.
Crane Features:
At SANTO Cranes, we have a deep understanding in the steel mill Industry! We understand what you need and require from your overhead crane at your steel mill, As our engineers have been serving the steel mills for many years. From the process of scraping metal (Scrap Handling Crane), to melting (Charging Crane), to the finished product (Billet Crane) and other process. We have customized service and upgrading plans to prevent down time.
Special used in steel plant.
Smooth starting and stopping.
Safe and reliable traveling, long life.
Heat-resistant electrical equipment and wiring.
Crane drive: IP54 or IP44, level F insulation
High quality with competitive price.
Advanced Design:
QDY Type Double Girder Overhead Crane can also achieve remote control through telemetry and remote control technology, to ensure that the equipment can be used in high dust, high pollution, high temperature and other harsh environment, improve its adaptability and greatly expand its work range.
Considering the lifting objects of metallurgical cranes are relatively complex, including liquid metal, nuclear materials, large equipment, etc., so for the safety of personnel and equipment, it is necessary to install safety brakes in the main lifting mechanism of metallurgical cranes, through the mechanical control of hydraulic mechanism.
When the QDY Type Double Girder Overhead Crane starts, the safety brake works first, and the working brake on the high-speed shaft starts working again. When the metallurgical crane brake, the working brake brake, the safety brake brake according to the preset time delay. In this way, it can be ensured that when the transmission part in the transmission link is damaged or broken, the object being hoisted is in a safe state.
Cranes We Supply for Steel Mill:

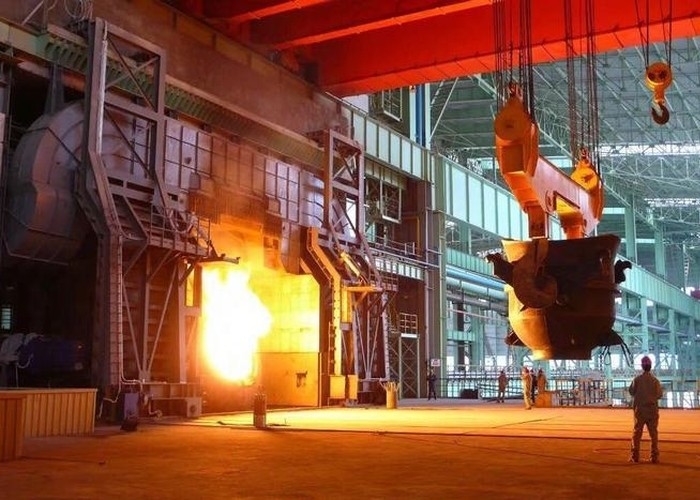

There are several kinds of steel mill ladle cranes in Santo as below:
Scrap yard crane
Furnace charging crane
Ladle crane
Railing Cranes
Teeming crane
Tundish crane
Coil slab and billet crane
Technical Specification:
1. QDY Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity | T | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | |
| Span | m | 10.5-31.5 | |||||||
| Speed | Main Hook Lifting | m/min | 15.5 | 10.4 | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
| Aux. Hook Lifting | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
| Traveling of Trolley | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 39.3 | 33.8 | ||
| Crane travelling | 92.7/93.7 |
92.7/86.5 |
76/89 | 76/89 | 89/75.3 | 75/76.6 | 67.3 | ||
| Operational Model | Cabin | ||||||||
| Working Duty | A7 | ||||||||
| Power Supply |
Three-phase A.C. 380V, 50Hz or customized |
||||||||
2. YZ YZS Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity(t) | 200/50 | 225/65 | 240/80 | 280/65 | 320/80 | |
| Working Class | A7 | A7 | A7 | A7 | A7 | |
| Span(m) | 28 | 27 | 22 | 21 | 24.5 | |
| Lifting Height | Main hook | 26 | 32 | 25 | 24 | 28 |
| Auxiliary hook | 26 | 34 | 27 | 26 | 32 | |
| Speed | Main hook | 6 | 11 | 7 | 10 | 7.5 |
| Auxiliary hook | 10 | 11 | 9.6 | 12 | 10 | |
| Main Trolley | 41 | 41 | 35 | 30 | 29 | |
| Auxiliary Trolley | 38 | 39.5 | 38 | 39 | 39 | |
| Crane | 78 | 84 | 80 | 76 | 58 | |
| Dimensions (mm) | H | 6900 | 7000 | 7000 | 7600 | 7800 |
| H1 | 6000 | 5990 | 5650 | 6400 | 6500 | |
| H2 | 1650 | 1400 | 1350 | 1350 | 1500 | |
| B | 1700 | 17300 | 18500 | 19200 | 19500 | |
| B1 | 10000 | 10100 | 11250 | 12000 | 12500 | |
| B2 | 3200 | 3300 | 3800 | 3800 | 5000 | |
| Limit dimestion (mm) | b | 450 | 450 | 450 | 500 | 500 |
| H3 | 6000 | 5800 | 5500 | 5900 | 6000 | |
| H4 | 1000 | 1000 | 1500 | 1500 | 1700 | |
| S1 | 2600 | 2500 | 2800 | 3200 | 3300 | |
| S2 | 3000 | 3000 | 3200 | 3500 | 3500 | |
| S3 | 2000 | 2200 | 2400 | 2400 | 2600 | |
| S4 | 1600 | 1600 | 2800 | 2800 | 3000 | |
| Max wheel load(kN) | 530 | 550 | 545 | 595 | 650 | |
| Steel track recommended | QU120 | |||||
| Power source | 3-Phase A.C. 380V 50Hz | |||||
