| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | MG |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD6000-40000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 35-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-35m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Gantry Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 800t |
| Product Name: | Rail Mounted Gantry Crane | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-800t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Gantry Crane, Portal Crane, Goliath Crane |
| Type: | Heavy Duty Double Girder Gantry Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Wheeled Gantry Crane 38.5m/Min,50/10 Ton Wheeled Gantry Crane,Double Beam goliath gantry crane |
||

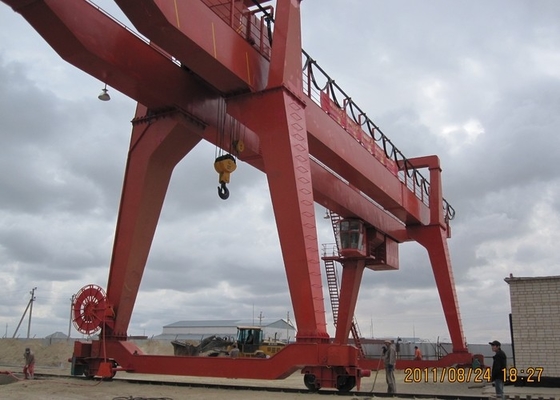

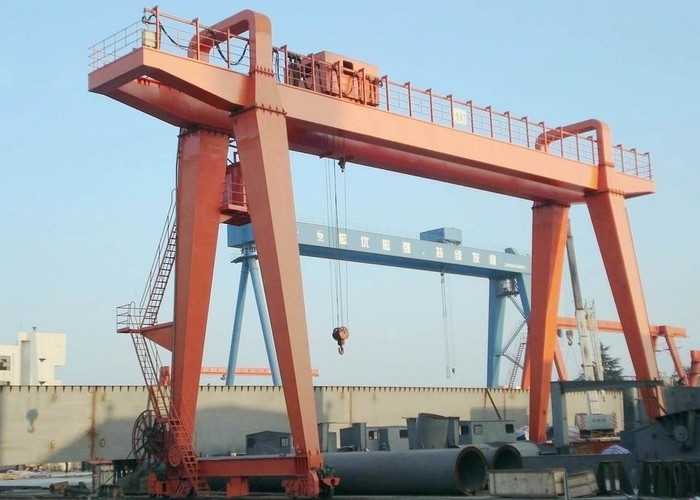

Cabin Control Heavy Duty Electric Double Girder Gantry Crane With Gantry Crane Wheel
General description:
Double girder gantry crane with hook is applied outside warehouse or railway sideways to do common lifting and unloading works.
This kind of crane is composed of bridge, supporting legs, crane travelling mechanism, trolley with strong lifting winch, electric equipment and control system.
As its heavy duty design, it can be widely used in all kinds of industrial field. As its heavy duty design, it can be widely used in all kinds of industrial field.
Advantages of Double Girder Gantry Crane:
Technical Parameters:
| Capacity (ton) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | ||
| Span (m) | 18, 22, 24, 26, 30, 35 | |||||||
| Lifting height (m) | 10, 11, 12 | |||||||
| Working class | A5 | |||||||
| Control way | Cabin control or remote control | |||||||
| Power source | 380V 50HZ 3phase (Could supply it as yours) | |||||||
| Trolley lifting mechanism | ||||||||
|
Lifting speed (m/min) |
Main hook | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |
| Auxiliary hook | - | - | 14.6 | 15.4 | 15.4 | 10.4 | ||
| Trolley traveling mechanism | ||||||||
| Traveling speed (m/min) | 37.3 | 35.6 | 36.6 | 36.6 | 37 | 36 | ||
| Crane traveling mechanism | ||||||||
| Traveling speed (m/min) | 37.3 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | ||
| Motor power(KW) | 40.8-51.8 | 41.5-52.8 | 80-77 | 84-81 | 99.3-117.3 | 126.5 | ||
| Rail track recommended | 43kg/m | 43kg/m or QU70 | ||||||
How to choose:
1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined
Double Girder Gantry Crane Details:
