| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | QDY, YZ, YZS, QL, QZ, QC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD10000-60000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 45-55 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7-38m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Electric Overhead Travelling Bridge Crane | Max. Lifting Height: | 10m~35m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 320t |
| Application: | Steel Factory, Ladle Lifting, Casting, Foundry | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Double Girder Overhead Crane |
| Type: | Heavy Duty Double Girder Overhead Crane, EOT Crane | Lifting Mechanism: | Open Winch Trolley |
| Lifting Speed: | Standard Or As Requirement | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | QDY 5Ton steel gantry crane,74/20 Ton Double Girder Steel Gantry Crane,A7 Double Hook Casting Ladle Crane |
||
China QDY Double Girder Steel Mill Foundry Castng Overhead Crane With Double Hook For Lifting Ladle Molten Metal
QDY model double beam foundry overhead crane is applied in foundry warehouse of steel factory for loading and unloading hot material or ladle. It is a heavy duty type overhead crane that satisfy frequenty using.
The main hoist is operated at high speed so as to fit in high productivity of heat handing and heat transport. The speed control range speed control ranges can be realized by an alternative of variable stator voltage control or frequency control of motor speed.
The ladle overhead crane designed with safety and reliability, advanced technique, rigid structure, good economy and durability, and easy maintenance.
Capcaty of double beam overhead crane: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 74/20T.
Crane Features:
At SANTO Cranes, we have a deep understanding in the steel mill Industry! We understand what you need and require from your overhead crane at your steel mill, As our engineers have been serving the steel mills for many years. From the process of scraping metal (Scrap Handling Crane), to melting (Charging Crane), to the finished product (Billet Crane) and other process. We have customized service and upgrading plans to prevent down time.
1. Variable speed control for each mechanism
2. Rotary lifting appliance;
3. Variable distance between gantry hooks;
4. Overload limit and warming display;
5. Load weighing and display;
6. Three dimensional lifted point location and display
7. PLC control and fault detection, display, record and printing system
8. Protection of cranes at the same bay from impacting
Cranes for Steel Mill:
There are several kinds of steel mill ladle cranes in Santo as below:
Scrap yard crane
Furnace charging crane
Ladle crane
Railing Cranes
Teeming crane
Tundish crane
Coil slab and billet crane
Technical Specification:
1. QDY Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity | T | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | |
| Span | m | 10.5-31.5 | |||||||
| Speed | Main Hook Lifting | m/min | 15.5 | 10.4 | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
| Aux. Hook Lifting | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
| Traveling of Trolley | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 39.3 | 33.8 | ||
| Crane travelling | 92.7/93.7 |
92.7/86.5 |
76/89 | 76/89 | 89/75.3 | 75/76.6 | 67.3 | ||
| Operational Model | Cabin | ||||||||
| Working Duty | A7 | ||||||||
| Power Supply |
Three-phase A.C. 380V, 50Hz or customized |
||||||||
2. YZ YZS Type Steel Mill Double Girder Overhead Crane
| Lifting Capacity(t) | 200/50 | 225/65 | 240/80 | 280/65 | 320/80 | |
| Working Class | A7 | A7 | A7 | A7 | A7 | |
| Span(m) | 28 | 27 | 22 | 21 | 24.5 | |
| Lifting Height | Main hook | 26 | 32 | 25 | 24 | 28 |
| Auxiliary hook | 26 | 34 | 27 | 26 | 32 | |
| Speed | Main hook | 6 | 11 | 7 | 10 | 7.5 |
| Auxiliary hook | 10 | 11 | 9.6 | 12 | 10 | |
| Main Trolley | 41 | 41 | 35 | 30 | 29 | |
| Auxiliary Trolley | 38 | 39.5 | 38 | 39 | 39 | |
| Crane | 78 | 84 | 80 | 76 | 58 | |
| Dimensions (mm) | H | 6900 | 7000 | 7000 | 7600 | 7800 |
| H1 | 6000 | 5990 | 5650 | 6400 | 6500 | |
| H2 | 1650 | 1400 | 1350 | 1350 | 1500 | |
| B | 1700 | 17300 | 18500 | 19200 | 19500 | |
| B1 | 10000 | 10100 | 11250 | 12000 | 12500 | |
| B2 | 3200 | 3300 | 3800 | 3800 | 5000 | |
| Limit dimestion (mm) | b | 450 | 450 | 450 | 500 | 500 |
| H3 | 6000 | 5800 | 5500 | 5900 | 6000 | |
| H4 | 1000 | 1000 | 1500 | 1500 | 1700 | |
| S1 | 2600 | 2500 | 2800 | 3200 | 3300 | |
| S2 | 3000 | 3000 | 3200 | 3500 | 3500 | |
| S3 | 2000 | 2200 | 2400 | 2400 | 2600 | |
| S4 | 1600 | 1600 | 2800 | 2800 | 3000 | |
| Max wheel load(kN) | 530 | 550 | 545 | 595 | 650 | |
| Steel track recommended | QU120 | |||||
| Power source | 3-Phase A.C. 380V 50Hz | |||||

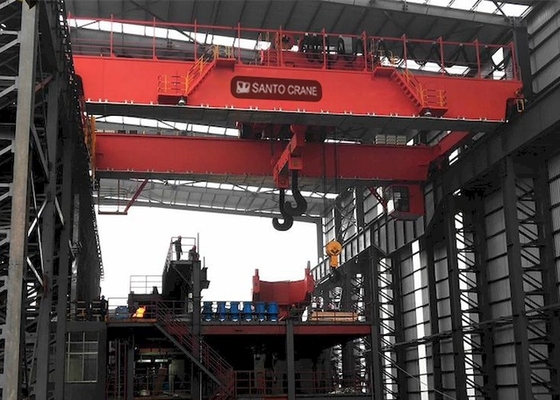

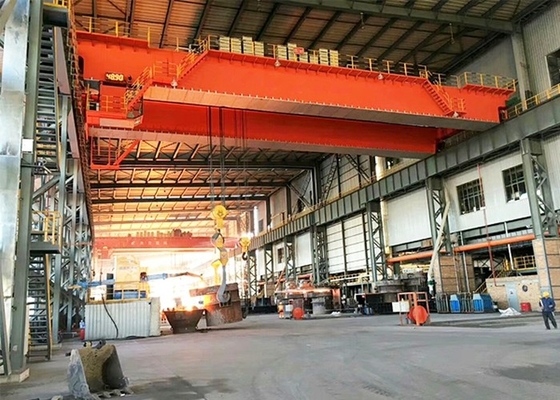

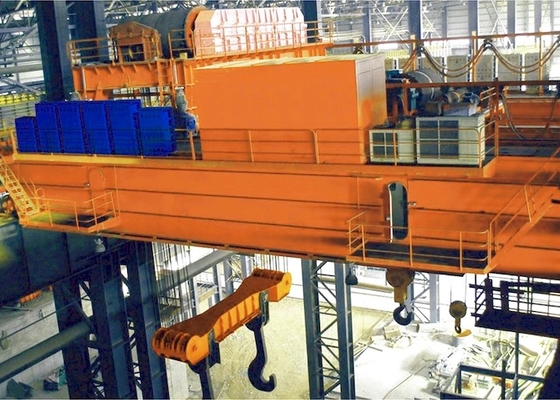

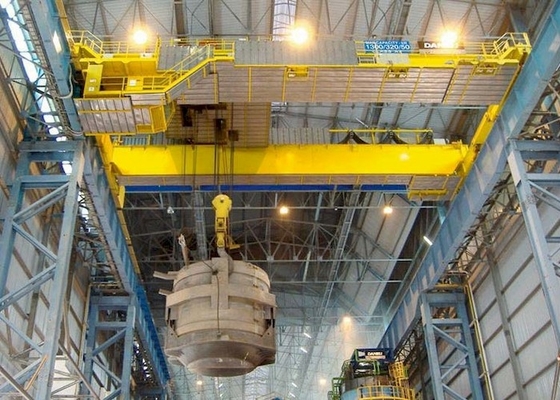

Crane Photos:
Looking forward your kindly inquiry and hope to help your strong business in near future!
Contact Person: Miss. Alice Yuan
Tel: 13569821405
