5 Ton To 50 Ton Mobile Gantry Crane

5 Ton To 50 Ton Mobile Gantry Crane

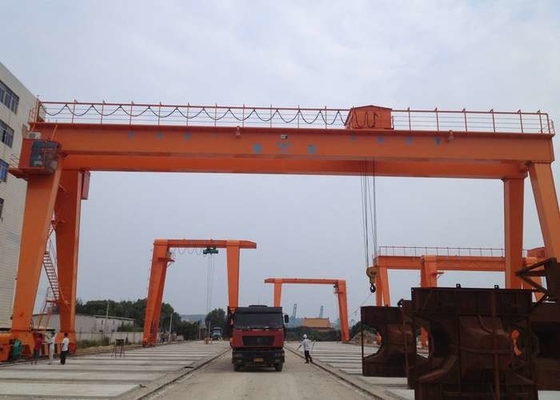

  • 5 Ton To 50 Ton Mobile Gantry Crane

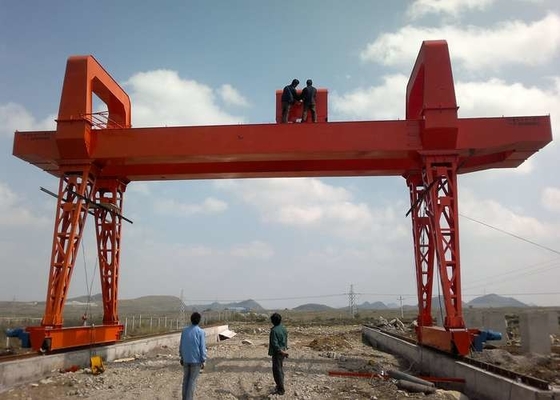

  • 5 Ton To 50 Ton Mobile Gantry Crane

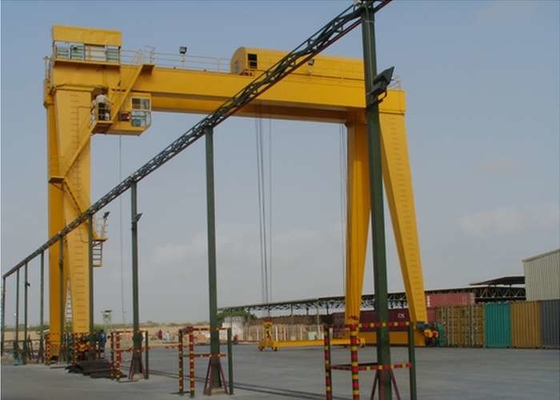

  • 5 Ton To 50 Ton Mobile Gantry Crane

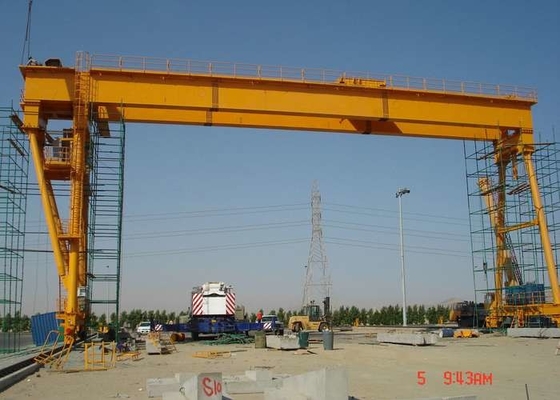

  • 5 Ton To 50 Ton Mobile Gantry Crane

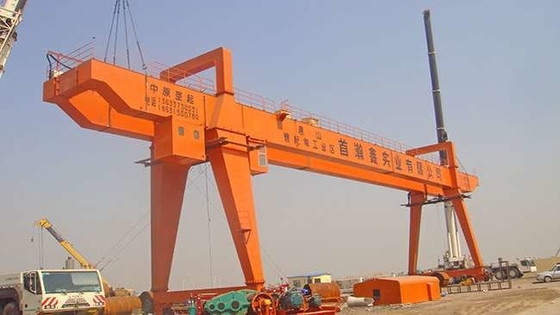

  • 5 Ton To 50 Ton Mobile Gantry Crane

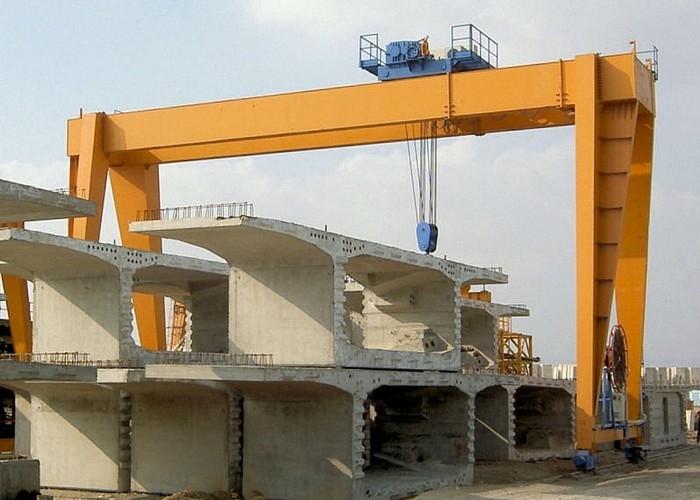

  • 5 Ton To 50 Ton Mobile Gantry Crane
5 Ton To 50 Ton Mobile Gantry Crane
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: MG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-40000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7-35m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Gantry Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 800t
Product Name: Rail Mounted Gantry Crane Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-800t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Gantry Crane, Portal Crane, Goliath Crane
Type: Heavy Duty Double Girder Gantry Crane Lifting Mechanism: Open Winch Trolley
Lifting Speed: Standard Or As Requirement Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

MG Mobile Gantry Crane


SANTO 50 ton gantry crane


ODM 5 Ton Gantry Crane

Mobile Gantry Crane Manufacturers Stock Yard Double Girder Gantry Crane 5 Ton 10 Ton 15 Ton 20 Ton 30 Ton 50 Ton




Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes.
Unlike overhead cranes, gantry cranes have legs and move on rails which are usually mounted on floor level.
Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail.
Manufacturing in accordance with the different customer´s requirements, including single girder, double girder, single leg, double leg, semi gantry, and cantilever styles.
SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 550 ton SWL.


MG Double Girder Gantry Crane Supplier With Competitive Price design and manufacture according to Chinese national standard GB/T 14406.Mainly made up of gantry frame, hoist trolley or open winch trolley, crane traveling mechanism and electrical system. All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work.
MG Double girder gantry crane main have below Types:

  • MG type double girder gantry crane

Mobile Gantry Crane Manufacturers Stock Yard Double Girder Gantry Crane 5 ton 10 ton 15 ton 20 ton 30 ton 50 ton

  • U type double girder gantry crane

Mobile Gantry Crane Manufacturers Stock Yard Double Girder Gantry Crane 5 ton 10 ton 15 ton 20 ton 30 ton 50 ton


Features & Advantages


1.Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and elegant. Suitable for different operation temperature;
2. Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc;
3. Hook: Finest steel forged hook, long using life;
4. Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency and long service life;
5. Travel mechanism: With China or world famous crane motor, reducer supplier, such as Nanjing motor, SEW etc;
6. Electrics: Chint, Schneider or Siemens etc.


Safety Device:


1. Overload protection
2. Main lifting motor with thermal protection
3. Hooks with latch
4. Rubber buffers
5. Protective earthing
6. Crane switch and travel end switch
7. Emergency switch can stop all movement when any dangerous happened
8. Sub-assemblies characteristic are tested before assembly
9. All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.



Double girder gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete warehouse, rail station, stock yard and shipyard, and many other industries.


Components of Double Beam Gantry Crane Supplier With Competitive Price:


-Gantry frame (main beam, support leg, floor beam)
-Winch trolley
-Crane travel mechanism
-Ground control/Remote control /Cabin control

5 Ton To 50 Ton Mobile Gantry Crane 2


Technical Specification:


Lifting Capacity t 5 10 16/3.2 20/5 32/5 50/10
Working Duty ISO A3-A8
Span m 7-35, customized
Lifting Height Main hook m 10 11 10 11 10 11 10 11 10 11 10 12
Aux. hook 10.275,11.275 10.446,11.446 10.73 11.73 10.918 12.918
Speed Lifting Main m/min 11.3 8.5 7.9 7.2 7.5 5.9
Aux. 14.6 15.4 15.4 10.4
Trolley traveling 37.3 35.6 36.6 37 36
Crane traveling 37.3 39.7 40.1 39.7 39.7 37.3 39.7 39.4 38.5
Recommended Tail   43kg/m 43kg/m or QU70
Power Supply   3-Phase 380V 50HZ, or as clients' requirement


Company information:


Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand.

The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.

5 Ton To 50 Ton Mobile Gantry Crane 3

5 Ton To 50 Ton Mobile Gantry Crane 4

Crane Detail:

5 Ton To 50 Ton Mobile Gantry Crane 5


5 Ton To 50 Ton Mobile Gantry Crane 6


Looking forward to receiving your inquiry with the below detailed information:

5 Ton To 50 Ton Mobile Gantry Crane 7

1. Boxed type or trussed? The type? (Single girder, double girder or as recommend)
2. SWL/ Load capacity:?
3. Span:?
4. Lift Height:?
5. Need Cantilever, if need, how long:?
6. Standard voltage: 380V 50Hz,3p, AC, is it ok?
7. Request for speed: ?
8. Need us to provide the rail system and power supply? if need, please tell us the long crane travel distance!
9. Your port? We check the lowest price for shipment, then you can make a very accurate comparision.
