| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTD |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD8000-80000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set/year |
| Span: | 7.5-31.5m | Feature: | Bridge Crane |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Product Name: | Double Girder Overhead Crane |
| Application: | Warehouse,plants,factoryand So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Rated Loading Capacity: | 5-75t | Color: | Yellow, Red, Or As Requirments |
| Power Source: | 3 Phase 380V 50hz Or Be Customized | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Lifting Mechanism: | Double Girder Electric Hoist With Trolley, Open Winch Hoist Trolley | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Material: | Q235B/Q345C | Type: | Hoist Single Girder Bridge Crane |
| High Light: | European FEM Standard double girder crane,Efficient Lifting double girder crane,Modular Structural double girder overhead crane |
||
Description:

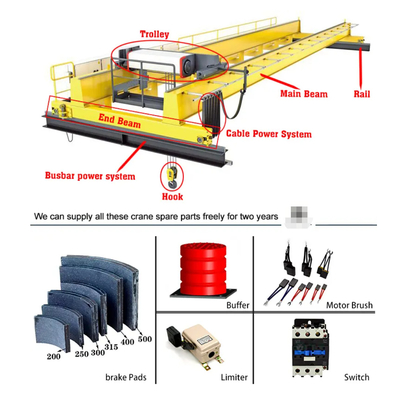

Double Girder Overhead Crane are designed with high configuration, which isdeveloped with advanced design technology referring to European FEM standard. Cranes are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other components.
This newly developed overhead crane are with compact layout and modularized structural design allows effective use of the available lifting height and reduce the investment on the steel structure of workshop.
Specification:
| Model No | CXTD |
| Type | European Double girder overhead crane |
| Load Capacity(t) | 1-500t |
| Lifting Height(m) | 3-35m, or customized |
| Span(m) | 7.5-31.5m,or customized |
| Travel Rail | P43,QU70-QU100 |
| Long Traveling speed | 3-30M/Min |
| Cross Traveling speed | 2--20M/Min |
| Working Class | A4-A8 |
| Origin | Henan,China |
| Power Supply | Three-phase A.C. 380V, 50Hz or customized |
| Way to control | Ground control,remote control and the combination control of two |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
Advanced Manufacturing Technology:
1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;
2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;
3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;
4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
