| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t |
| Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Single Girder Bridge Crane, Single Girder Overhead Crane | Lifting Mechanism: | Electric Single Girder Hoist |
| Lifting Speed: | Inverter Speed Or Dual Speed 0~5m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | CXTS 10T European Overhead Crane,10T European Overhead Crane IP54,IP54 Electric Overhead Travelling Cranes |
||

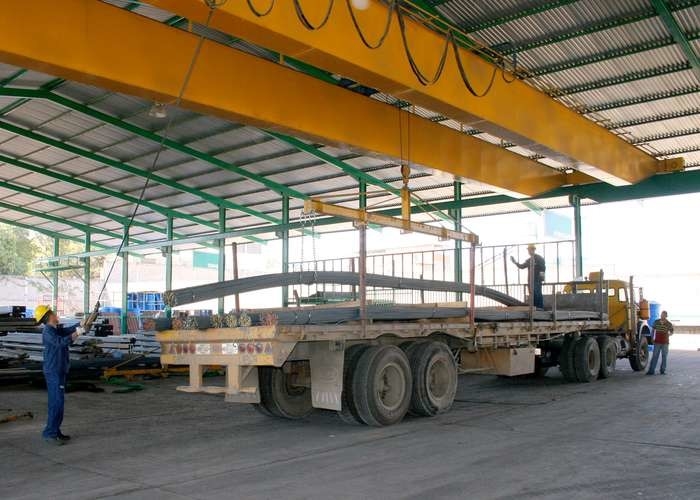

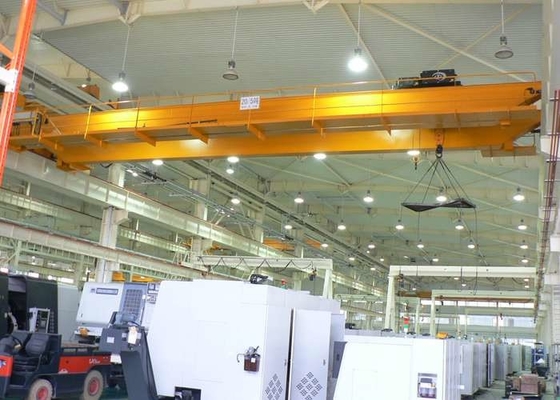

10t European Overhead Crane Energy Saving , Electric Overhead Travelling Bridge Crane
Description:
European crane is a medium and high-end bridge gantry crane. There is no concept of European crane in professional terms. It is a summary of domestic crane users. Domestic cranes (derived from Soviet design and manufacturing technology) are reliable, versatile, and inexpensive. Advanced crane technology, compact structure, light weight, energy saving, low noise and other characteristics, the requirements for bridge gantry cranes put forward according to the characteristics of China's use are a clear market demand and a new definition for medium and high-end bridge gantry cranes.
The concept of European crane is formed in the industry in recent years, the purpose is to distinguish it from the so-called domestic, Soviet (Soviet) and traditional cranes in the past. Mainly include: bridge cranes, gantry cranes, cantilever cranes, flexible beam cranes, explosion-proof cranes and other industrial cranes.
Features:
1. The lifting hoist adopts M5 working class with double lifting speed.
2. Lifting motor with ABM German brand motor.
3. Long Travelling motor uses SEW/ABM geared motor gear motors.
4. Cross and long traveling are variable travelling speed.
5. Electrical parts adopt Schneider brand.
6. The protection class is IP 54.
7. The working duty can reach to FEM 2M/ISO M5.
Adventages:
1. Reduce customer investment, make full use of plant space, and improve production efficiency
2. Good combination, many specifications and complete product series, which can cover most of the needs of customers.
3. Safe and reliable, advanced design concept, mature technology to ensure product design
4. Advanced control technology and high-quality key components ensure excellent crane performance
5. Reliable performance, low failure rate, reduce use and post-maintenance costs
6. Intelligent equipment and multiple functional interfaces are reserved to make function expansion easier
Specification:
|
Lifting Capacity (t) |
Span (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
Crane Traveling Speed (m/min) |
Recommended Rail Track |
| 1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 |
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
| Work Duty | A5 | |||||
| Power | 380V, 50Hz or Other | |||||
| Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||
| Notes: Span, lifting height is customizable as requirements | ||||||
