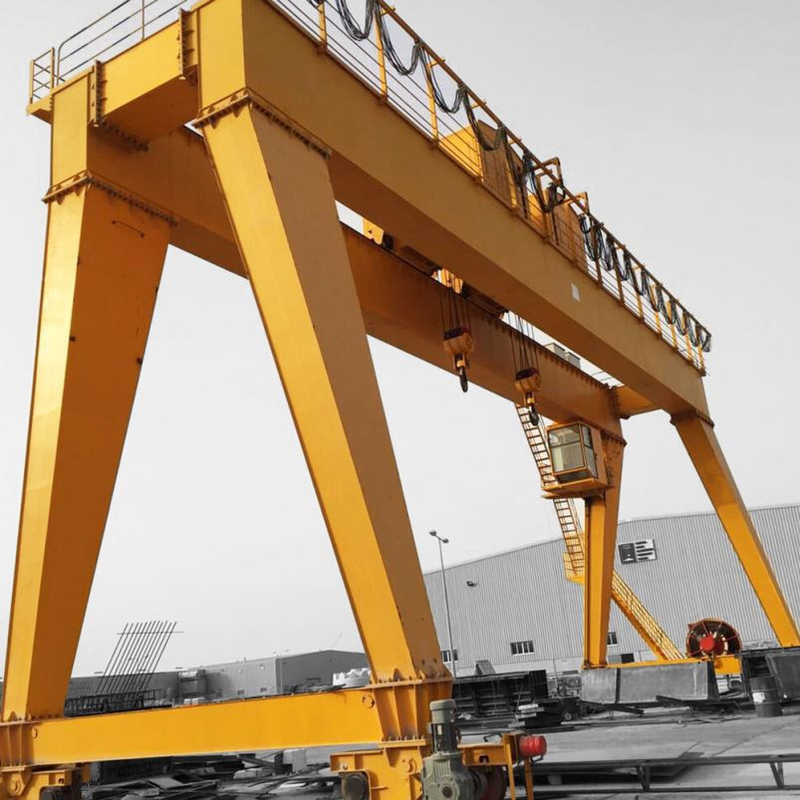

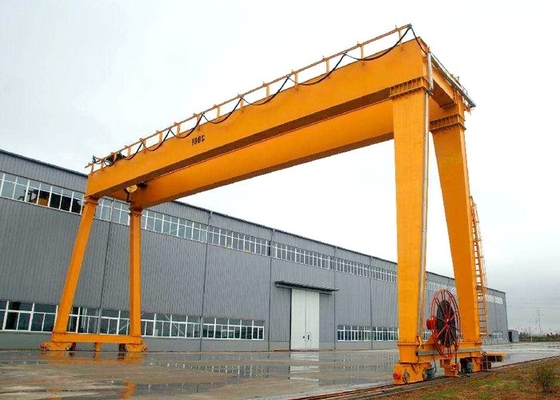

FEM DIN Single Double Girder Hoist Gantry Crane 5 Ton To 100 Ton

FEM DIN Gantry Crane With Single/Double Girder Hoist, Open Winch Hoist 5 Ton 10 Ton 20 Ton 50 Ton 100 Ton

Product Introduction:

Gantry Crane are also known as Portal crane or Goliath crane. Include single girder gantry crane, double girder gantry crane, engineer gantry crane, European type gantry crane, and operate on floor mounted rails.
Santo provide European type gantry crane solutions include single girder European type gantry crane and double girder European type gantry crane. Capacity from 1 Ton SWL up to 800 Ton SWL (we also manufacture gantry crane designed according to client special requirement).

Crane design according to FEM, DIN standard, with small limit size, high precision, low power consumption, light weight, low noise; modular design, more convenience for transportation and installation; crane equipped with frequency control, smooth operation and high efficiency.

Features:

1. Meet or exceed/Complies with the latest international standards such as FEM, DIN, HMI, ASME and CMAA

2. Modular design combined with modern technology, easy and quick replacement of parts

3. Three-in-one helical geared brake motor & rope drum arranged in U-shape makes for compact dimensions

4. Low headroom, maximizes the use of space inder the crane, excellent hook approaches & lifting height

5. Largely maintenance-free, lifetime lubricated bearings and gear train with oil bath, low wear, long service life

6. Frequency inverter control allow smooth, continuous and precise positioning of the load

7. No additional couplings or shafts between motor and helical gear reducer, meaning low inertia, low energy consumption, less wear, better approaches

8. Quiet, durable and highly efficient due to gear train consists of hardened and polished helical gears and pinions

9. Rugged, fluted aluminum alloy housing & cover provides rapid heat dissipation

10. Rope drum with precision-machined grooves and large flanges for smooth winding and extended rope life

Application:

European type gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete and many other industries.

European FEM/DIN Single & Double Girder Hoist, Heavy Duty Open Winch Hoist:

New type/generation electric hoists is a complete line of electric wire rope hoists. It is an advanced design incorporating the most recent materials and concept. The most current duty cycle and safety requirements of users are built into this line, not added on.
Variable mounting possibilities allow to new type electric hoists can be implemented with a single girder or double girder construction, or with a monorail system.

For light to medium duty service, single girder crane with SEKR/Y-Series hoist may be a cost-effective solutions due to their low dead weight.

For medium to heavy lifting, double girder crane with SFR-Series trolley hoist is ideal lifting height and easily fit into different kinds of buildings.

European type crane compared with traditional crane, the difference is it has different structure, main girder is box type, and the advantage is reduce itself height, to some extent increase the crane's lifting height. End beam is a tubular type, and different from general crane end beam by splicing.

And the main difference is that adopt good quality parts. Especially european wheel group is a key component of such parts. European wheel group has light weight, small volume, convenient installation, mainly consist of wheel shaft, wheel, bearing box, bearing four parts. Directly match with triad reducer, don't need to linked with coupling. So this kind of wheel has compact structure, high assembly accuracy, smooth operation and low noise. The wheels material for high strength 42 crmo forgings, with car axle interference fit, and the flat key links, wheel through modulation treatment, hardness of heat treatment HB300 – HB380. Car shaft for 42 crmo material, conditioning treatment after rough machining, heat treatment hardness for HB300.
