| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 1-20t |
| Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Single Girder Bridge Crane, Single Girder Overhead Crane | Lifting Mechanism: | Electric Single Girder Hoist |
| Lifting Speed: | Inverter Speed Or Dual Speed 0~5m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | 50Hz Electric Overhead Travelling Crane,380V Electric Overhead Travelling Crane,A5 lightweight overhead crane |
||

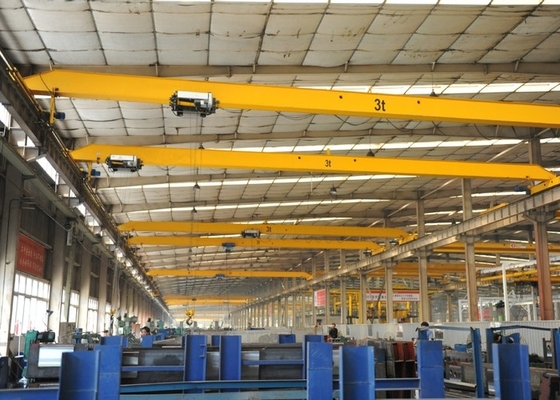

Light Weight European Overhead Travelling Crane FEM/DIN Standard
Description:
European-style cranes are based on European lightweight and modular design concepts and advanced manufacturing processes, making the entire crane compact in structure, stable in operation, reduced in weight, reduced in height, energy-saving and consumption-reduced, greatly reducing users' construction costs for crane operation workshops and cranes Operating costs, improve the overall quality and operating performance of the crane. European cranes will become the development trend of cranes and the mainstream of market demand.
Features:
1. Computer optimized design of box-typed main girder, the full length of web plate is cut and formed through numerical control and its deflection is accurate.
2. Low clearance structure of trolley and reasonable size of hook allowing the crane wide application scope.
3. Arc wheels or flat wheels, anti-friction bearings, honey-typed buffers and anti-derailment devices.
4. Three-in-one motor drive, steeples speed control, hardened reducer, safety disc brake.
5. Good performance, runs smoothly with the steeples speed control
6. Shot blasting grade reaches Sa2.5 after welding and releasing internal stresses to insure the best performance of main girder.
7. Painting epoxy zinc-rich primer, and the thickness of oil film is 140 μm.
Advanced Manufacturing Technology:
1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;
2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;
3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;
4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.
Standard Specification:
|
Lifting Capacity |
Span |
Lifting Height |
Lifting Speed |
Hoist Traveling Speed |
Crane Traveling Speed |
Rail Track Recommended |
|
(t) |
(m) |
(m) |
(m/min) |
(m/min) |
(m/min) |
(kg/m) |
|
1 |
7.5~31.5 |
6~12 |
0.8/5 |
2~20 |
3~30 |
P24 |
|
2 |
6~12 |
0.8/5 |
2~20 |
3~30 |
P24 |
|
|
3.2 |
6~12 |
0.8/5 |
2~20 |
3~30 |
P24 |
|
|
5 |
6~12 |
0.8/5 |
2~20 |
3~30 |
P24,P30 |
|
|
10 |
6~12 |
0.8/5 |
2~20 |
3~30 |
P30 |
|
|
12.5 |
6~12 |
0.66/4 |
2~20 |
3~30 |
P30 |
|
|
16 |
9~12 |
0.66/4 |
2~20 |
3~30 |
P43 |
|
|
20 |
9~12 |
0.66/4 |
2~20 |
3~30 |
P43 |
|
|
Work Duty |
A5 |
|||||
|
Power |
380V, 50Hz or Other |
|||||
|
Temperature of Working Environment |
﹣20℃~﹢40℃ |
|||||
|
Notes: Span, lifting height is customizable as requirements |
||||||
