| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTD, CXSM |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 320t |
| Product Name: | Overhead Travelling Crane,Electric Double Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 5-320t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Double Girder Bridge Crane, Double Girder Overhead Crane | Lifting Mechanism: | Double Girder Electric Hoist With Trolley, Open Winch Hoist Trolley |
| Lifting Speed: | Inverter Speed 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Lightweight European Overhead Crane,European Overhead Crane 7.5m Span,31.5m Span Bridge And Trolley Crane |
||

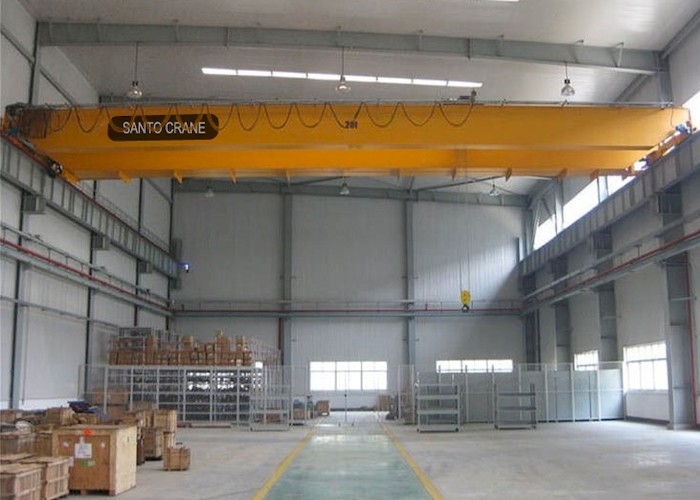

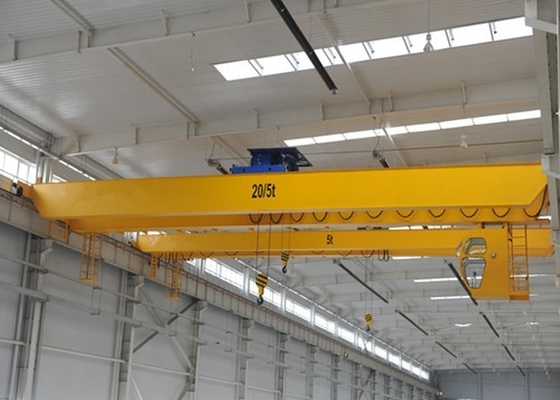

Low Noise Light Weight European Overhead Crane 5t - 320t With Trolley Hoist
Description:
European bridge cranes have light weight, compact structure and low energy consumption. A trolley and a hoisting mechanism are set on the bridge. The trolley can run forward and backward, and the cart can run and other mechanisms to achieve material objects in three-dimensional space. With unique design concept, it has the features of small size, light weight and small wheel pressure.
Features:
1. Lightweight and Modular Design, Overall height is 20%~25% lower than traditional cranes;
2. Self-weight is lighter by 20%~30%;
3. Max wheel load reduces 15%~20%;
4. Smaller limiting size increases working scope;
5. Light structure reduces the cost of workshops;
6. Every component designed to be a standard series and interchangeable;
7. Modularization design is easy for transporting;
8. Standard modular design makes good quality and fast delivery.
Advanced Manufacturing Technology:
1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;
2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;
3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;
4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.
Specification:
|
Lifting Capacity (t) |
Span (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
Crane Traveling Speed (m/min) |
Recommanded Track |
||
| 1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | ||
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |||
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |||
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |||
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| Duty Class | ISO A5 / FEM 2m / ANSI, ASME HST-4 H4 | |||||||
| Power | 380V, 50Hz or Other | |||||||
| Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||||
Advantage:
1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;
2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;
3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;
4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.
5. Low energy consumption and maintenance free;
6. Whole crane energy saving about 30%;
7. All-in-one transmission mechanism making it work more efficient;
8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;
9. Less and easy maintenance reduces the cost of maintenance;
10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost;
Intelligent:
1. Electric anti-sway tech realize accurate positioning;
2. Advanced electric control tech turn it into a crane robot with semi-automatic control and full-automatic control;
Safety Protection:
Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.
