2.2t Spider Crane Wireless Remote Control For Uneven Ground

2.2t Spider Crane Wireless Remote Control For Uneven Ground

  • 2.2t Spider Crane Wireless Remote Control For Uneven Ground
  • 2.2t Spider Crane Wireless Remote Control For Uneven Ground
2.2t Spider Crane Wireless Remote Control For Uneven Ground
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: 1.0, 3.0, 5.0, 8.0
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD14999-49999/set
Packaging Details: Standard nude packing by container, Electrical and spare parts packed by high quality plywood crate.
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Product Name: Mini Crawler Crane, Spider Crane Crane Feature: Easy Operation Hydraulic Telescopic Boom
Control Method: Wireless Remote Control, Manual Operation Power Supply: Diesel, Electric Motor, Chargeable Battery, Gasoline, 220-480V Single Phase Or 3 Phase, Or Combination
Application: Construction, Steel Erection, Glazing Industries, PowerInspectionandmaintenance, Mechanicalmaintenance Lifting Capacity: 2.2 Tons
Max Working Temperature: 50℃ Noise Level: ≤95 DB(A)
Power Source: Diesel Product Name: Spider Crane
Color: Customized Color Acceptable Condition: New
Crane Screen: Intelligent Display Screen
High Light:

2.2t spider crane


wireless remote control spider crane


uneven ground crane spider

5Tons 16m Wireless Remote Control Spider Crane For Narrow Space

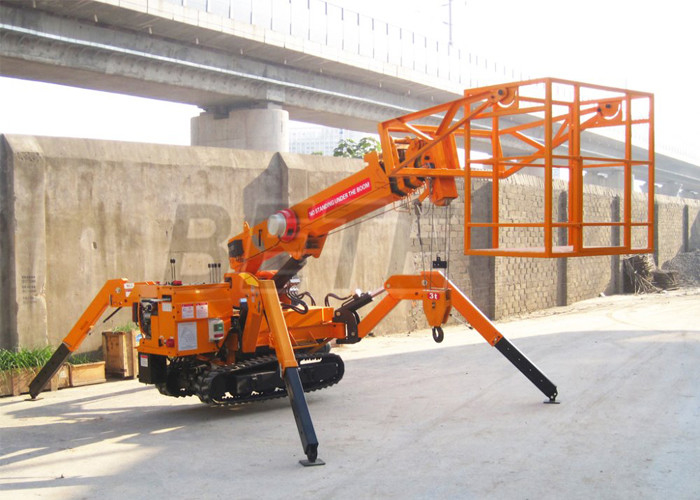

With the characteristics of small size, light weight, low pressure on the ground, and the ability to work flexibly in a limited space, the spider crane can also be used for the maintenance of some aircraft and helicopters.


The crawler design of the spider crane allows it to enter uneven ground for work and movement. The four outriggers on the equipment can fix the balance of the machine and even work on stairs. The compact body of the small spider crane can be transported to various places. It can save a lot of time and problems for customers, and can quickly help users solve work construction.


Maximum working radius
7.8m × 0.2t
Maximum ground lift
Hook up speed
Wire Rope Specifications
Telescopic device
Boom form
5 -section boom , U-shaped high-strength manganese
Boom length/time
2.8 m- 8.2 m/2 2 sec
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec
Outrigger Action Form
Manual unscrewing + hydraulic automatic support (two legs)
Maximum extension (mm)
4010 (long) X 3260 (rear) , (front)
Walking device
way of walking
Hydraulic motor drive, two-speed
Walking speed
20° (36%)
Chang Chai
Start method
Electric start
Startup performance
Diesel / 8 L
battery capacity
12v 45AH
Fuel consumption
noise level
Rated speed≤81.5dBA (1m)
Emission Standards
Country II
Operating system
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
Operating characteristics
Comai hydraulic system (optional)
The standard configuration
Diesel engine and electric motor (dual power)
Vehicle size
Length 2830*width 800*height 1650
Paint assembly process

2.2t Spider Crane Wireless Remote Control For Uneven Ground 0


Advantages & Features:

·Proportional remote controlle and proportional valve (optional)
The crane can be controlled remotely, and the lifting weight can be moved gradually.


·Moment limiter(optional)
Accurately display the weight of the object being lifted, and protect the safety of the lifting arm during the lifting operation.


·Outrigger by remote control (optional)
It can operate the outrigger in close range to avoid accidents caused by invisible outrigger operation in complex environment.


·U boom (optional)
Reasonable structure, 1 weld, large contact area between boom, high strength, long life.


·Take the elevator
Fuselage width 600mm, can enter 3 ton elevator or indoor operation.


·One key tor the level of body (optional)
Depending on the surrounding environment, the outrigger can be operated independently or controlled by the computer at the same time to achieve one-key leveling and keep the body in a horizontal state.


·Interlock system (optional)
After the boom is reset, the supporting leg can be operated and the crane can move safely.


·Travel available by forklift truck
Convenient forklift transport, the crane has a insertion position.


·Remote control walking (optional)
The machine can be operated at a long distance to walk, in the harsh environment, can better protect the safety of people.


·Sensor of outrigger on the ground
Each leg is equipped with an earthing sensor. When the leg leaves the ground in danger, the machine will alarm and stop working.Make sure the machine doesn't tip over.

2.2t Spider Crane Wireless Remote Control For Uneven Ground 1



2.2t Spider Crane Wireless Remote Control For Uneven Ground 22.2t Spider Crane Wireless Remote Control For Uneven Ground 3
