Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: 1.0, 3.0, 5.0, 8.0
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD14999-49999/set
Packaging Details: Standard nude packing by container, Electrical and spare parts packed by high quality plywood crate.
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Product Name: Mini Crawler Crane, Spider Crane Crane Feature: Easy Operation Hydraulic Telescopic Boom
Control Method: Wireless Remote Control, Manual Operation Power Supply: Diesel, Electric Motor, Chargeable Battery, Gasoline, 220-480V Single Phase Or 3 Phase, Or Combination
Application: Construction, Steel Erection, Glazing Industries, PowerInspectionandmaintenance, Mechanicalmaintenance Dimensions: 7.4m(L)×2.5m(W)×2.7m(H)
Lifting Capacity: 2.2 Tons Max Gradeability: 45%
Max Height: 19.7m Max Outreach: 11.4m
Max Reach: 14.7m Max Slewing Speed: 2.5 Rpm
Max Speed: 4.5 Km/h Max Swing Radius: 3.2m
Max Wind Speed: 14 M/s Max Working Temperature: 50℃
Noise Level: ≤95 DB(A) Power Source: Diesel
Product Name: Spider Crane Weight: 3.2 Tons
High Light:

5 tons spider lift crane

,

16m spider lift crane

,

narrow space crane spider

5Tons 16m Wireless Remote Control Spider Crane For Narrow Space




Description:



With the characteristics of small size, light weight, low pressure on the ground, and the ability to work flexibly in a limited space, the spider crane can also be used for the maintenance of some aircraft and helicopters.



The crawler design of the spider crane allows it to enter uneven ground for work and movement. The four outriggers on the equipment can fix the balance of the machine and even work on stairs. The compact body of the small spider crane can be transported to various places. It can save a lot of time and problems for customers, and can quickly help users solve work construction.



Specification
2.95t
Maximum working radius
7.8m × 0.2t
Maximum ground lift
9.2mX0.8t
Winch
Hook up speed
0-8m/min
Wire Rope Specifications
Φ8mm×45m
Telescopic device
Boom form
5 -section boom , U-shaped high-strength manganese
Boom length/time
2.8 m- 8.2 m/2 2 sec
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec
Outrigger
Outrigger Action Form
Manual unscrewing + hydraulic automatic support (two legs)
Maximum extension (mm)
4010 (long) X 3260 (rear) , (front)
Walking device
way of walking
Hydraulic motor drive, two-speed
Walking speed
0-2.5km/h
Gradeability
20° (36%)
Motor
Voltage
AC380V
Engine
Producer
Chang Chai
Type/displacement
EV80/F195
Start method
Electric start
Startup performance
-5°C~40°C
fuel/volume
Diesel / 8 L
battery capacity
12v 45AH
Fuel consumption
274g/kW-h
noise level
Rated speed≤81.5dBA (1m)
Emission Standards
Country II
Operating system
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
Operating characteristics
Comai hydraulic system (optional)
The standard configuration
Diesel engine and electric motor (dual power)
Vehicle size
Length 2830*width 800*height 1650
Craftsmanship
Paint assembly process

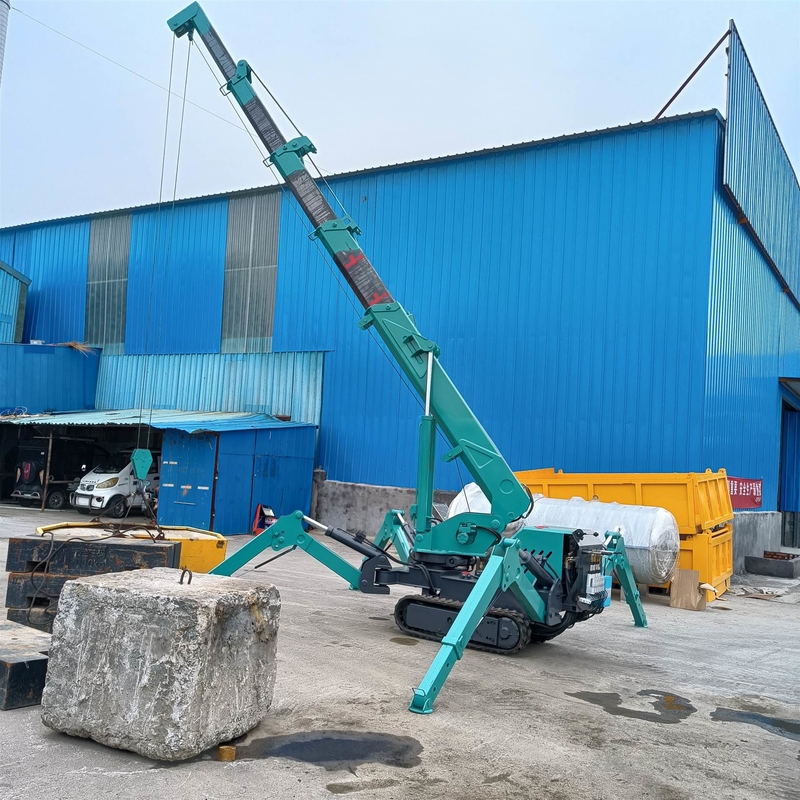

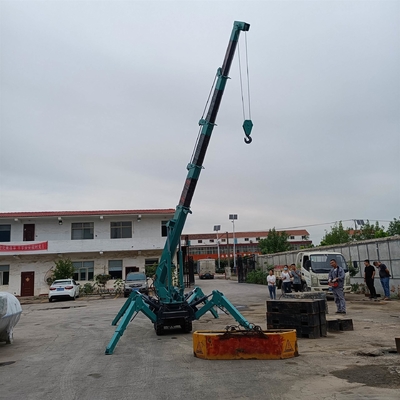

5 Tons 16m Spider Lift Crane For Narrow Space 0





5 Tons 16m Spider Lift Crane For Narrow Space 1



Photos:


5 Tons 16m Spider Lift Crane For Narrow Space 2
5 Tons 16m Spider Lift Crane For Narrow Space 3
