| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | 1.0, 3.0, 5.0, 8.0 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD25000-45000/set |
| Packaging Details: | Standard nude packing by container, Electrical and spare parts packed by high quality plywood crate. |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set/year |
| Keywords: | Spider Crane | Condition: | New |
|---|---|---|---|
| Warranty: | 12 Months | Ground Lifting Height: | 5.5m, 9.2m, 16.8m, 17.8m |
| Max. Working Radius: | 5.07m, 8.3m, 16m, 15.7m | Rated Lifting Capacity: | 1 Ton, 3 Ton, 5 Ton, 8 Ton |
| Control Method: | Wireless Remote Control, Manual Operation | Application: | Construction, Steel Erection, Glazing Industries, PowerInspectionandmaintenance, Mechanicalmaintenance |
| High Light: | 17.8m Foldable Spider Crawler Crane,Lift Height 5.5m Spider Crawler Crane,Roof Work electric spider crane |
||
Rubber Crawler Chassis Spider Crane Can Be Folded For Roof Work
Description:
Spider crane generally refers to lifting equipment with a lifting capacity of less than 8 t and is easy to transport and use. It has the advantages of general flexibility and can be folded. Such as the installation of indoor glass, the hoisting of indoor wall panels, or the transportation of various small-quality goods up and down floors. To a certain extent, spider cranes can make up for the application limitations of crane machinery, so for indoor work, spider cranes are becoming more and more popular.
Technical parameters:
| Model | KB1.0 | |
| Specification | 1.0Tx 1.5m | |
| Maximum Working Radius | 5.07m xO.2T | |
| Maximum Ground Lifting Height | 5.6m | |
| Maximum Underground Lifting Height | 18m | |
| Winch Device | Hook Speed | 10m/min(2 fall) |
| Rope | 07.7mm x 48m | |
| Telescopic System | Boom Type | Full automatic 4 section |
| Boom Length | 2.08m-5.5m | |
| Up and Downs | Boom Angle/Time | 0° ~75./14sec |
| Slew System | Slew Angle/Time | 0° 〜360° (Continuous )/40sec |
| Outrigger | Outrigger Active Form | Automatic for the 1 section, manual adjustment for 2,3 section |
| Maximum Extended Dimensions | 3600mm x 3200mm | |
| Traction system | Walking Way | Hydraulic motor driven |
| Walking Speed | 0-3.2km/h | |
| Grade Ability | 20° | |
| Ground Length x Width x 2 | 960mm x 180 mm x 2 | |
| Ground Pressure | 35.6kpa (0.356 kgf/cm2) | |
| Diesel Engine | Model | (HONDA) GX270 |
| Displacement | 270ml | |
| Maximum Output | 5.1Kw/1800rpm | |
| Starting Method | Electric starting | |
| Fuel/Tank Capacity | Petrol/6L | |
| Safety Devices | Sensor of outrigger, Emergency stop button, height limiter | |
| System Voltage | DC12V | |
| Dimension | Length x Width x Height | 2140mm x 600mm x 1413mm |
Load Chart at Maximum Extended Outriggers:
| 2.08m boom | 3.22m boom | 4.36m boom | 5.5m boom | ||||
| Working Radius (m) | Rated Load (t) |
Working Radius (m) | Rated Load (t) |
Working Radius (m) | Rated Load (t) |
Working Radius (m) | Rated Load (t) |
| <1.5 | 1.0 | <1.5 | 1.0 | <1.8 | 0.85 | <2.5 | 0.65 |
| 1.65 | 0.92 | 2.0 | 0.8 | 2.0 | 0.8 | 3.0 | 0.53 |
| 2.5 | 0.65 | 2.5 | 0.65 | 3.5 | 0.4 | ||
| 2.79 | 0.56 | 3.0 | 0.53 | 4.0 | 0.32 | ||
| 3.5 | 0.41 | 4.5 | 0.27 | ||||
| 3.93 | 0.33 | 5.00 | 0.21 | ||||
| 5.07 | 0.2 | ||||||
Applications:
1. glass engineering
Glass can be installed even under the roof by using the vacuum glass suction cups mounted on the search hook. The spider crane was born to complete the work of glass installation more efficiently. Mini spider cranes are also widely used in indoor, narrow spaces and narrow passages.
2. Curtain wall installation
The spider crane is small in size and convenient in transportation. It is widely used in the process of curtain wall construction. It can be used for vertical transportation, hoisting, etc. The lifting capacity is generally 2~3 tons, which can meet most of the hoisting requirements of the construction site. In addition, the spider crane is also particularly suitable for the installation of unit panels with large changes in the façade.
3. Working in narrow spaces
Even in tight spaces, the spider crane can make a big difference with its four support legs. By making full use of the effective working radius, it is possible to work in confined spaces avoiding obstacles (such as power lines), and also to achieve safe lifting work, which is best for working in tight locations where larger cranes cannot access.
4. roof work
Spider cranes can be placed on roofs and lift materials from the ground. Shorter construction periods and cost reductions can be achieved. Spider cranes can be easily lifted to the roof by a tower crane or elevator.
5. Steel structure and building construction
Spider cranes are suitable for steel structure installation works in various buildings and roofs, as well as steel tower installation works.
6. Municipal building construction
Spider cranes are used in hoisting projects for building materials such as airports, railway stations, and dam construction sites. With its flexibility and convenience in tight spaces, spider cranes have been used in many municipal building construction operations.
7. Areas inaccessible by large cranes
The spider crane's small and compact body design means it can work indoors or in space-constrained areas. The Spider Crane's compact body allows easy access to construction sites and reduces operating costs.
8. Installation of facilities and equipment
With its excellent accessibility, spider cranes can be used for installation work on display panels, signage, etc. in large commercial buildings such as shopping malls, gymnasiums and theaters.

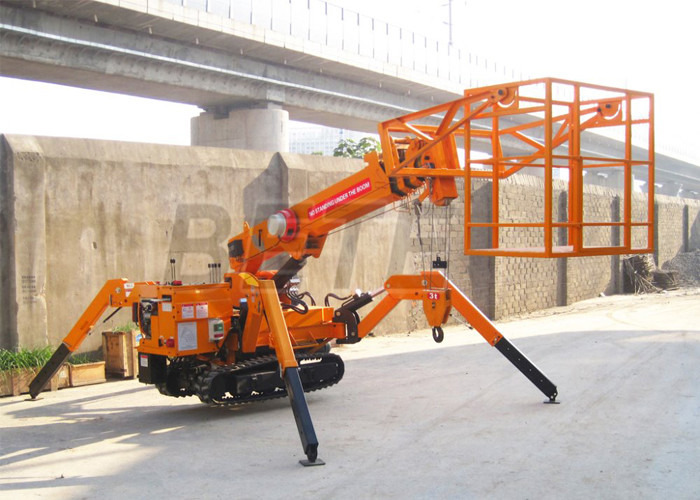

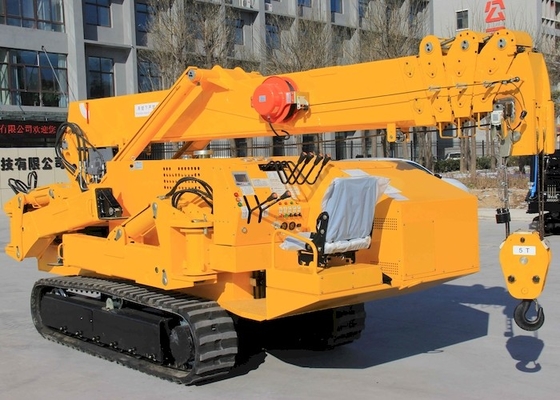

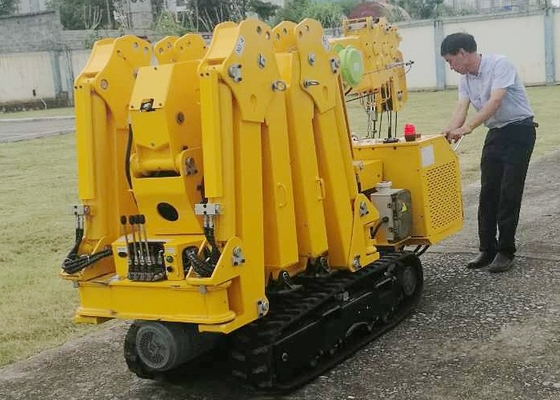

Photos:
