| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 699USD~5999USD |
| Packaging Details: | Packed by high quality plywood crate |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 9999set/year |
| Name: | Electric Hoist | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
|---|---|---|---|
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | HS Code: | 84251100 |
| Application: | Warehouse And So On,Factory | Sling Type: | Wire Rope |
| Condition: | New | Usage: | Construction Hoist,bridge Crane |
| Lifting Speed: | 8m/min (as Customised) | Power Source: | 3 Phase 380V 50Hz Or Other Standards |
| High Light: | Single Girder Wire Rope Hoist,10t Heavy Duty Wire Rope Hoist,8m/min Heavy Duty Wire Rope Hoist |
||
Hot Sale Overhead Crane 10t Single Girder Monorial Heavy Duty Wire Rope Hoist
CD Model Electric Wire Rope Hoist 1 Ton For Jib Crane Using
Description:
CD1/MD1 type electric hoist has the characteristics of compact structure, light weight, small size, convenient operation, etc. CD1 type is single-speed while MD1 type has dual speed.It can be installed on bridge cranes, gantry cranes and cantilever cranes. Therefore, it is commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, etc.
Application:
The hoist is mounted to the trolley and performs the actual lifting function via a hook or lifting attachment. There are two basic types of hoist. Our Santo Wire Rope Hoist which is very durable and will provide long term, reliable usage. The other type of hoist is Chain Hoist.
Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Standard Technical Specification of Wire Rope Electric Hoist:
| Model | CD | MD | |||
| Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 | 10, 20, 30 | ||
| Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
|
Lifting mechanism |
Lifting Speed (m/min) |
8 | 7, 3.5 | 8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
| Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
| Duty Class | M3 | ||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
| Working temperature | -20~40℃ | ||||
| Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
| Brake | Integrated on motors | ||||
| Control model |
Pendant pushbutton control or wireless remote control |
||||
NOTE: According to your needs, we can also provide electric hoist to custom.

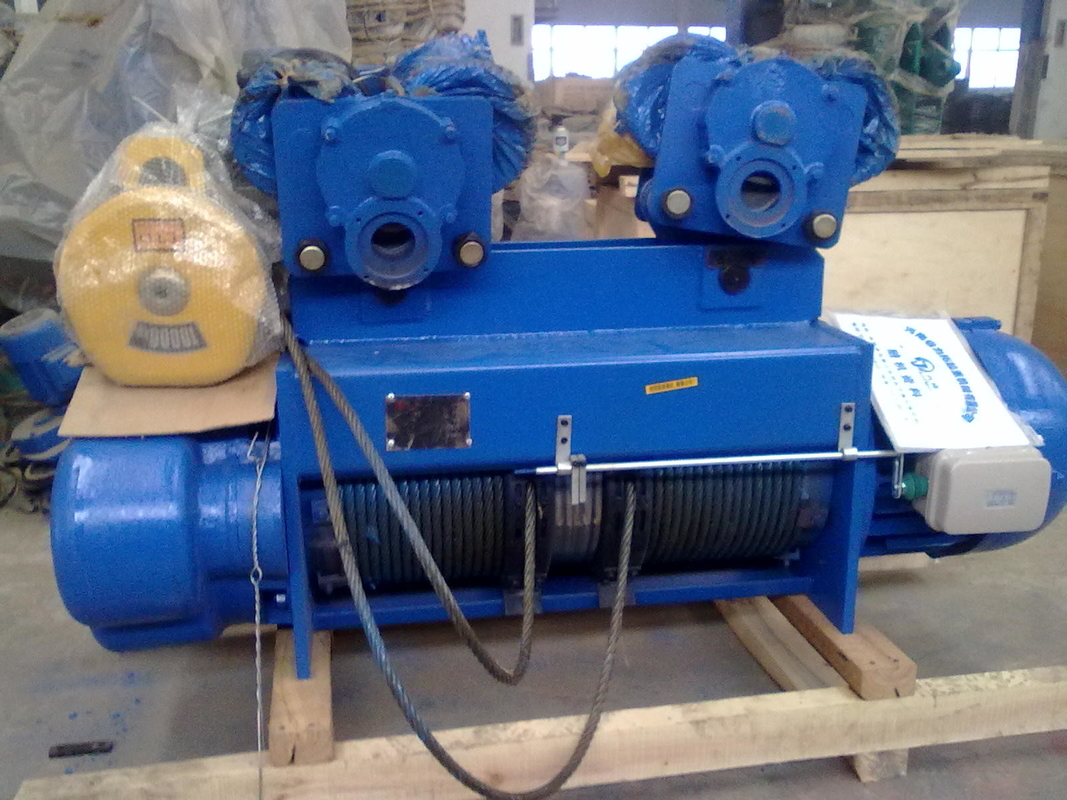

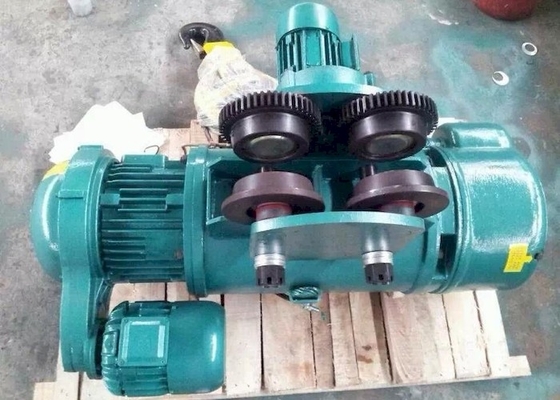

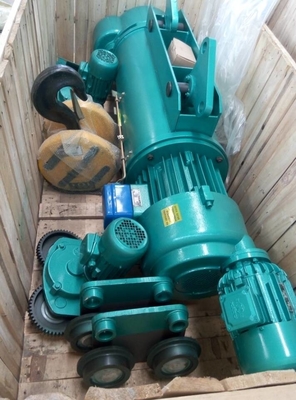

Photos:
