| Place of Origin: | China |
| Brand Name: | Santo Crane |
| Model Number: | CD1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 600USD/SET |
| Packaging Details: | Wooden case |
| Delivery Time: | 7 ~15 Working days |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 5000 Sets/ Year |
| Model: | CD1 | Lifting Capacity: | 0.5t-16t |
|---|---|---|---|
| Lifting Height: | 6m-18m | Condition: | New |
| Power Source: | Electirc | Sling Type: | Wire Rope |
| Usage: | Construction Hoist, Material Handling, Household | Color: | Customised, Yellow, Blue, Green |
| Voltage: | 220V,380V,400V,415V,440V | ||
| High Light: | M3 1 Ton Electric Wire Rope Hoist,1 ton wire rope hoist 6m Lift Height,CD1 electric wire rope hoist 1 ton |
||
1 Ton Electric Wire Rope Hoist With Remote Control Lifting Height 6m
Description:
Electric wire rope hoist also belongs to special lifting equipment, it can be installed on the I-beam alone, or it can be installed on electric or manual single beam, double beam, cantilever, gantry and other cranes. The motor generally uses a cone-type motor, which automatically locks the brake after stopping. The wire ropes matched with it include phosphating coated wire rope, galvanized wire rope and smooth wire rope.
Technical Parameters:
| The general details of wire rope electric hoist with standard type | |||||
| Model | CD | MD | |||
| Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
| Travelling mechanism | Travelling Speed (m/min) | 20, 30 | 20, 30 | ||
| Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
| Lifting mechanism | Lifting Speed (m/min) | 8 | 7, 3.5 | 8/0.8 | 7/0.7, 3.5/0.35 |
| Lifting height (m) | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
| Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
| Duty Class | M3 | ||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
| Working temperature | |||||
| Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
| Brake | Mounted on motors | ||||
| Control model | Pendant push button control or wireless remote control | ||||
Accurate orientetion ,hightly -efficient operation,improved logisitics effciency
Safe and reilable ,montioed operation ,easy maintance
Modularized design ,lower maintance cost ,perfect spare parts and components services.
The parts of wire rope electric hoist can be roughly divided into:
1. Reducer
2. Reel device
3. Hoisting motor
4. Electric trolley
5. Cone brake
6. Adjusting nut
7. Rope guide
8. Coupling
9. Hook device
10. Control button
11. Hollow shaft
12. Box
13. Sealing ring
14.09 Gear
15.06 Gear shaft
16.05 Gear shaft
17.04 Gear shaft
18. Ball bearing
19. Needle bearing
20. Box cover
21. Breathable plug
Application:
Application areas: lifting, pulling, loading and unloading heavy objects, flip welding of oil tanks, such as the installation and movement of various large and medium-sized concrete, steel structures and mechanical equipment, suitable for civil engineering and bridge construction in construction and installation companies, factories and mines, Machinery and equipment for infrastructure projects such as electric power, shipbuilding, automobile manufacturing, construction, highways, bridges, metallurgy, mining, slope tunnels, shaft control and protection.

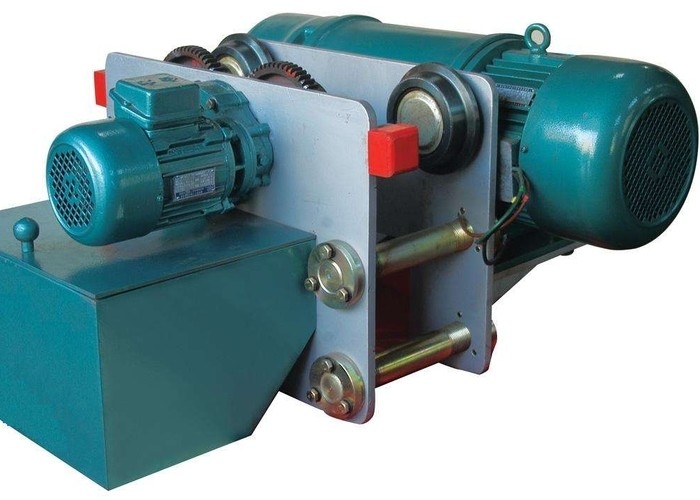

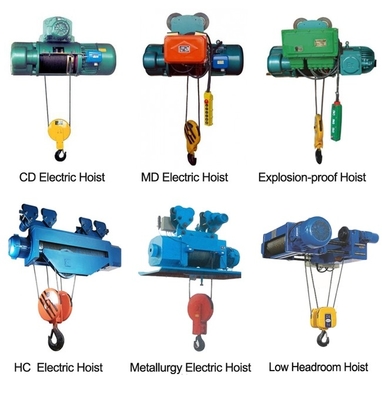

Photos:
