| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-4800/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
| Color: | Green, Yellow, Blue, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | 0.3-8m/min | HS Code: | 84251100 |
| High Light: | 8m/Min electric hoist with wireless remote control,0.3m/Min Electric Wire Rope Winch,SANTO 10 ton wire rope hoist |
||

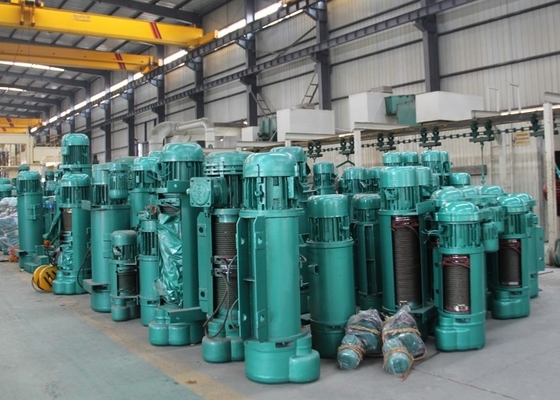

Wireless Remote Control 10 Ton Electric Wire Rope Hoist Used In Factories
Description:
Electric wire rope hoist also belongs to special lifting equipment, which can be installed on I-beams alone or on electric or manual single-beam, double-beam, cantilever, gantry and other cranes. The motor generally uses a conical motor, which automatically locks the brake after stopping. The wire ropes matched with it include phosphating-coated wire ropes, galvanized wire ropes and smooth wire ropes.
Specification:
| Load capacity (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lift height (m) | 3-9 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Hositing speed (m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | 3.5(3.5/0.35) | 3 |
| Traveling speed (m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | 20 |
| Recommend track | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45b-63c | 56b-63c |
| Standard power source | 380V 50HZ 3 phase | |||||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Application:
Application areas: lifting, pulling, loading and unloading heavy objects, flip welding of oil tanks, such as the installation and movement of various large and medium-sized concrete, steel structures and mechanical equipment, suitable for construction and installation companies, civil engineering and bridge construction in factories and mines, Machinery and equipment for basic construction projects such as electric power, ships, automobile manufacturing, construction, highways, bridges, metallurgy, mining, slope tunnels, shaft management and protection.
Detailed Features:

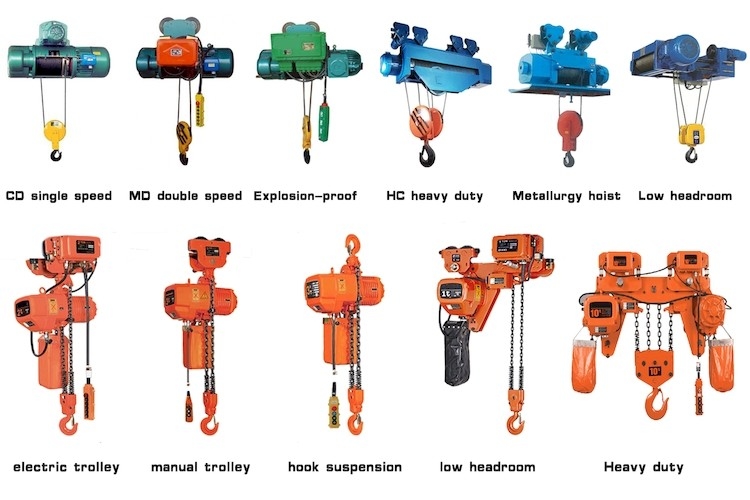

Photos:
