| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC/HM/YH |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-5800/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 9000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~20m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-10t |
| Color: | Green, Yellow, Blue, Or As Requirments | Safety Device: | Dual Brake, Overload Protection, Limit Switch |
| Power Supply: | 220V~480V 50/60Hz 3P | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | Single Speed 8m/min, Double Speed 2/8 M/min | HS Code: | 84251100 |
| High Light: | electric wire rope hoist 500kg,1380rpm Electric Wire Rope Hoist,Metallurgy wire rope crane hoist |
||
Heat Resistance Electric Wire Rope Hoist 500kg For Metallurgy Lifting
Description:
Metallurgical electric hoist is a perfect light metallurgical hoisting equipment, which can be installed on the flange bottom of single-girder cranes or under the fixed cantilever beams in workshops and used alone as a monorail system. Metallurgical electric hoist equipment is mainly used to lift molten metal. Its standard lifting weight is less than or equal to 10t, and the lifting height is less than or equal to 20m. The working environment temperature is -10℃~60℃, and the relative humidity is less than 50% under the temperature condition of 40℃.
Metallurgical electric hoist has a variety of safety devices such as double braking, double spacing, heat shield and so on.
Specification:
| Lifting capacity(t) | 2 | 3 | 5 | 10 | |
| Lifting height(m) | 9~20 | 9~20 | 9~20 | 9~20 | |
| Lifting speed | 8(2/8) | 8(2/8) | 8(2/8) | 7(1.75/7) | |
| Wire rope | Dia | 11 | 13 | 15 | 15 |
| spec | 6 x 37 + 1 | ||||
| Hoisting motor | Type | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 |
| Power(kw) | 3 | 4.5 | 7.5 | 13 | |
| 0.75/3.0 | 1.1/4.5 | 2.0/7.5 | 3.25/13 | ||
| Ratation speed(r/min) | 1380/330 | 1400/330 | |||
| Travelling | Type | ZDY112-4 | ZDY121-4 | ||
| Motor | Power(kw) | 0.4 | 0.8 | ||
| Rotate speed | 1380(r/min) | ||||
| NO of connecting | 300 | ||||
| Working system | Intermediate FC=50% | ||||
| Power source | 380V 50HZ 3phs | ||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Safety features:
1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operator
4. Main lifting motor: with thermal protection and currency protection.
Advantages:
| Rope drum | high-quality seamless pipes and processed by numeral control machine, after the special finishing, the rope groove on reel works coordinately with rope guide to efficiently prevent rope loose and tangling. | |
| Steel rope | Employ import steel rope with high strength which has tensile strength of 2160N/m2, with good safety performance and long service life. | |
| Rope guide | Strong abrasion resistance and good self-lubricating performance, which greatly reduces the wear of steel rope as main force safety components and then enhances safety of hoisting mechanism. | |
| Motor of hoisting mechanism | It has low current for start and large torque; With soft starting and good performance in speed up; Have long service life; The technique parameter comply with standards of FEM and HMI; With high rotational speed and low noise; |
|
| Brake | Have fast movement and high reliability. It's maintenance-free and self-regulated; Employ dustproof design and long service life. |
|
Note: can be according to your request make non-standard products.

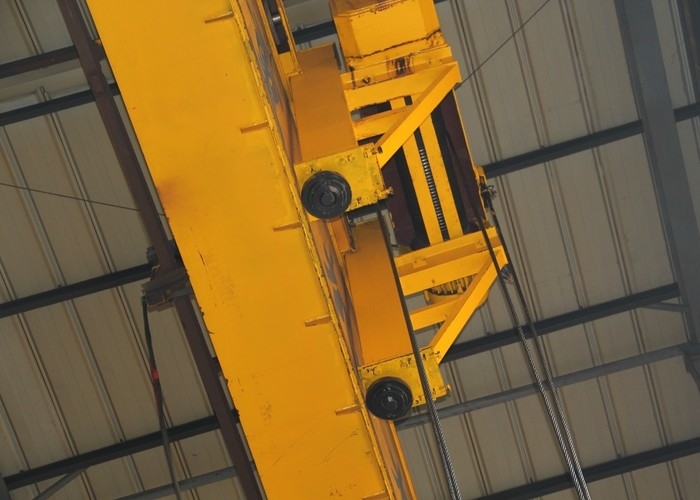

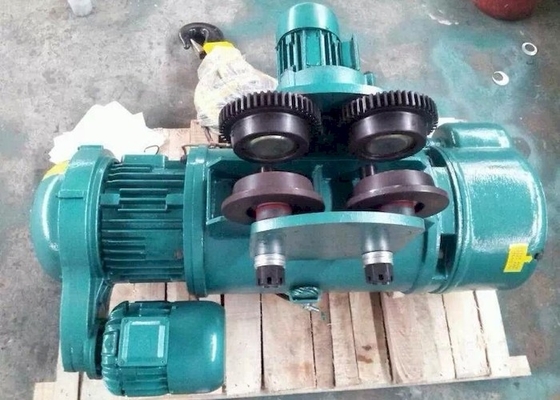

Photos:
