Name: 3 Ton 5 Ton 10 Ton Digital Wireless Crane Scale With Remote Control
Brand: SANTO
SKU: OCS
Price: 149 USD
Availability: InStock
Rating: 4.6 (193 reviews)

Home Products Crane Spare Parts

3 Ton 5 Ton 10 Ton Digital Wireless Crane Scale With Remote Control

Product Details:

Place of Origin:	China
Brand Name:	SANTO
Certification:	ISO, CE
Model Number:	OCS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD149-399
Packaging Details:	High quality cartons
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	9999 set/year

Contact Now

Detailed Product Description

Capacity:	1000~10000KG (d=100)	Power Supply:	AC/DC
Function:	Remote Control, Zero/Tare/Hold, Overload Alarm	Housing Material:	Al Alloy
Feature:	Support OEM	Display Type:	LED Display
Battery:	6V/4.5Ah Rechargeable Battery
High Light:	10 Ton Wireless Crane Scale , Digital Wireless Crane Scale , 3T Electronic Hanging Weight Scale

3 Ton 5 Ton 10 Ton Digital Wireless Crane Scale Electronic Hanging Weight Scale With Remote Control

Description of OCS- SX Crane Scale

Features:

1. High strength die forging load components.

2. Aluminum die-casting case.

3. High quality alloy steel load cell.

4. Low battery warning & Auto power off.

5. 30mm LED display..

6. American standard 360° rotatable hook.

7. Rechargeable battery.

8. Infrared remote control.

9. Capacity: 1t~10t.

Function:

1. Zero.Tare. Hold

2. Battery supervision

3. Overload alarm

4. Digital calibration

5. Auto zero point capture

6. Unit switch Kg/lb/N and Resolution switch

7. Gravity acceleration setting

8. Resistance to swing

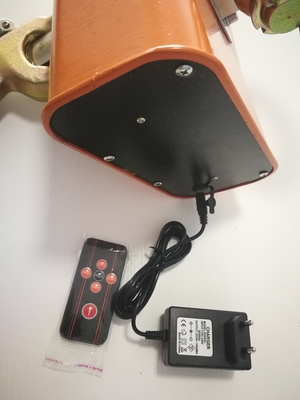

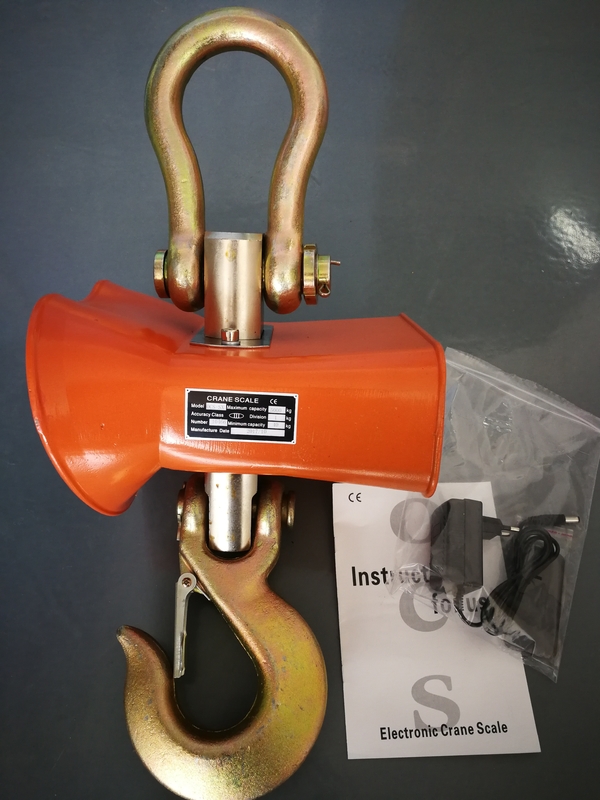

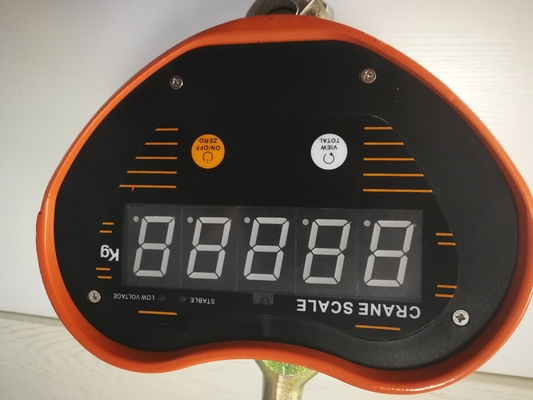

Pictures of OCS-SX Crane Scale

Specification

Function	Zero/Tare/Display hold/Voltage display Overload warning/Auto power off/Unit switch
Rated Capacity	1t 2t 3t 5t 10t
Min. Cap.	1% F.S.
Resolution	1kg, 2kg, 5kg
Accuracy Class	OIML Ⅲ
Tare Range	20% F.S.
Zero Range	4% F.S.
Safe Overload	125% F.S.
Damage Load	400% F.S.
Overload Warning	100% F.S. +9e
Battery of Crane Scale	Rechargeable lead-acid batteries 6V/4.5Ah
Charger	DC6V/1000mA
Battery Life	More than 50 hours
Display	30mm LED display
Temperature Range	-10℃~40℃
Remote Control Distance	10m
Battery of Remote Control	2*AAA1.5V

Weight and Dimension

Model	Max. Cap.	Resolution (kg)	n	A (mm)	B (mm)	C (mm)	E (mm)	H (mm)	N.W. (kg)	Packing Size (cm)
OCS-SX-1T	1t	1	2000	90	250	22	180	420	9.1	43×29×30.5
OCS-SX-2T	2t	1	2000	90	250	25	180	420	9.1	43×29×30.5
OCS-SX-3T	3t	1	3000	90	250	33	180	420	9.1	43×29×30.5
OCS-SX-5T	5t	2	2500	100	250	40	180	530	11.8	53×29×30.5
OCS-SX-10T	10t	5	2000	116	250	51	180	620	22	73×29×30.5
