| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | Casting, Forging; double flange, single flange, no flange |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD200-2000 |
| Packaging Details: | High quality wood box |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000set/year |
| Flange: | Double Flange, Single Flange, No Flange | Wheel Load: | Up To 200t |
|---|---|---|---|
| Condition: | New | Function: | Mobile Devices And Systems, As Single Components Or As Complete Travel Units |
| Material: | 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, And Ductile Iron 400, 500,600,700 Etc | Feature: | High Quality |
| Heat Treatment: | Quenched And Tempered | Manufacturing: | Casting And Forging |
| High Light: | 200T Overhead Crane Wheel Assembly,Crane Wheel Assembly ODM,ODM OEM Transfer Cart Wheels |
||
China Crane Wheel, Wheel Block, Wheel Sets, Wheel Assembly For Overhead Crane Gantry Crane Jib Crane Transfer Trolley Cart
Introduction of Crane Wheel:
Crane wheels are the most important parts in crane traveling system which are also the most vulnerable crane parts due to the friction between crane wheels and rail. Therefore, the crane wheels shall be replaced because of flange wear, flange breakage, and mechanical overloads characterized by pitting and spalling.
Each of these in-service factors must be carefully considered before the combination of wheel design, material selection, hardness pattern and heat treating technology is selected.
That’s why every SANTO hardened steel crane wheel is specially designed and heat treated to maximize its resistance to the damaging forces at work in heavy industrial applications.
Application of Crane Wheel:
SANTO Crane Wheel Service:
Advantages & Features:
Technical Specification:
| Type: | Forging Wheel/Casting Wheel |
| Application: | Crane,trolley,transfer car,heavy duty industry,Port crane,Steel factory etc |
| Material: | 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, and ductile iron 400, 500,600,700 etc |
| Dimension: | Φ250, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800, Φ 1000, Φ1200 or as your require |
| Process: | Forging/Casting |
| Quality Control: | UT,MT,RT,PT,chemical composition test,mechanical property test,etc. |
| Heat Treatment: | Quenching and Tempering |
| Quenching Depth: | no less than 20mm |
| Coating: | Black Oxide+Rust-proof oil |
| Inspection: | Besides our in-house inspecion, you could also choose a third party inspection |
| Standard: | ASTM, ASME, DIN, JIS, ISO, BS, API, EN,GOST,etc |
| Certificate: |
1, Raw material certificate(material chemical compositon) 2, Heat treatment sheet report 3, Dimension inspection report 4, UT/MT test report |
| Packing: | Seaworthy plywood packaged on steel pallets or as customer's request |
| Delivery Date: | 15~30 working days |
| Competitive Advantage: | Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery. |

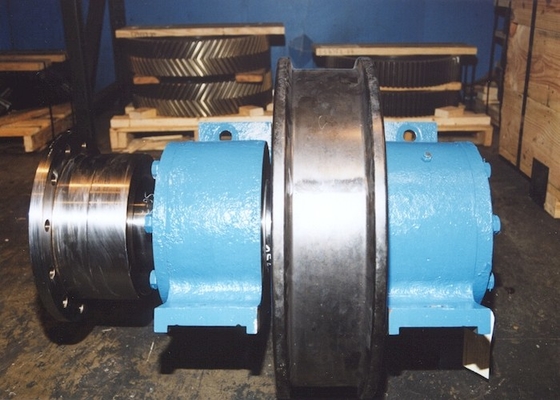

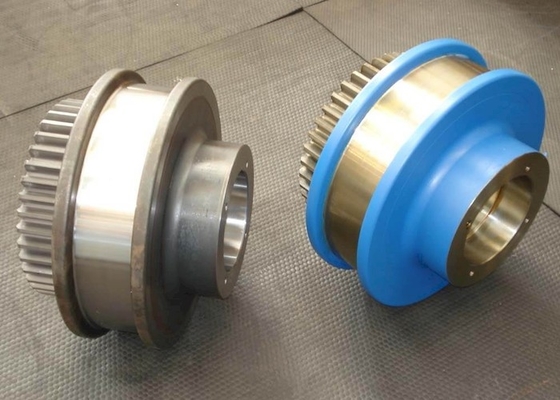

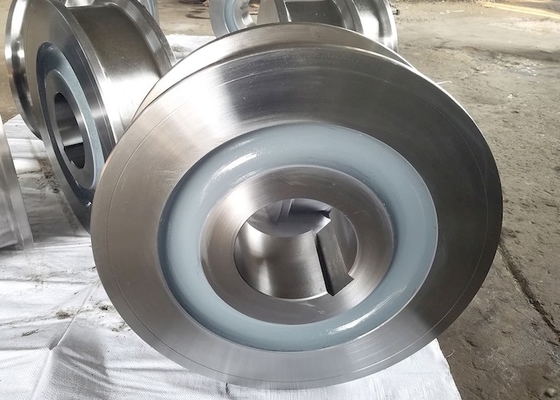

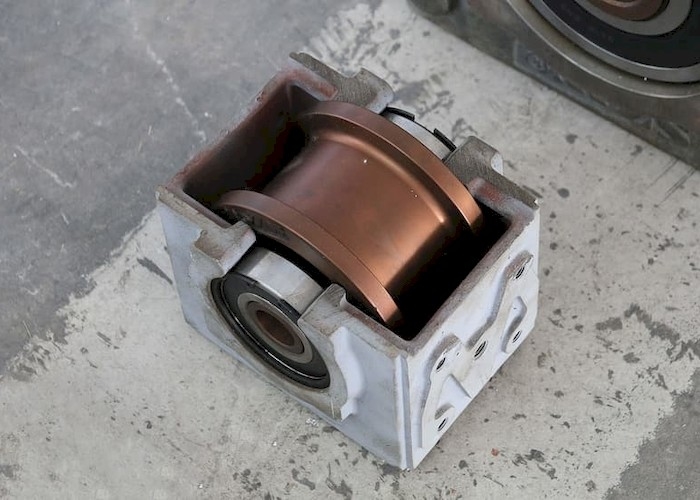

Crane Wheel:
About Us:
|
|
|
| Free Inquiry | |
|
We are a professional supplier of Cranes & Lifting Solutions with 37 years experience. Dedicated Cranes & Lifting Solutions Supplier, such as overhead cranes, gantry cranes, electric hoists, chain hoists, electric winches, jib cranes, truck cranes, or other lift equipment, we can provide you a full range of professional solution supporting and satisfied life cycle service.
|
|
