ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves

ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves

  • ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
  • ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
  • ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
  • ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
  • ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
  • ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves
Product Details:
Place of Origin: China
Brand Name: SANTO
Certification: ISO, CE
Model Number: Standard hook
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD600-3000
Packaging Details: High quality plywood crate by LCL container shipping
Delivery Time: 20-35 working days
Payment Terms: L/C, T/T
Supply Ability: 10000set/year
Contact Now
Detailed Product Description
Warranty: 1 Year Application: For Crane Material Handling
Condition: New Material: Standard
After-sales Service Provided: Online Support,Video Technical Support,Field Installation,commissioning And Training Feature: High Quality
High Light:

Crane Spare Parts Hook Block Assembly

,

DIN Crane Hook Block Assembly

,

ISO FEM crane hook block parts

ISO FEM DIN Hook Head Hook Block Assembly With Pulley Sheaves For Overhead Crane Gantry Crane Workshop Loading Unloading



Description:



Crane hooks are a part of a hoist or winch of cranes such as overhead crane and gantry crane. Santo provides light duty hooks (cap. 0.5t - 20t), heavy duty hooks (cap. 20t - 500t), forged hooks, laminated hooks and all kinds of special-purpose hooks.
1. Application scope: Hooks for Electric hoist, winch and crane.
2. Two shapes: single hook and double hook. Single hook is easy to make and convenient to use, and its lifting capacity is usually under 80t. When the lifting weight is large, double hook is a better choose for its load-bearing is symmetric.
3. Two types: casting hook and laminated hook. Laminated hook is safer, and its dead weight is larger. It’s usually used to lift large weights and steel ladle.
4. Good-tenacity and high-quality carbon steel is the best material to make hook since it’s good to absorb impact.
5. Hook lifting capacity is 5t to 500t.



Crane forging hook
  1. Capacity: 1- 500t
  2. Pulley: 1- 12 pulley,
  3. use on overhead, gantry cranes and all kinds hoist,
  4. strength grade: M, P, S, T, V grade
Materials:
  • M grade with DG20, or DG20Mn
  • P grade with DG20Mn
  • S grade with DG34CrMo
  • T grade below 40t with DG34CrMo, more than 40t with DG34CrNiMo or DG30Cr2Ni2Mo
  • V grade below 40t with DG34CrNiMo or DG30Cr2Ni2Mo, more than 40t with DG30Cr2Ni2Mo.
Model:
  • Single hook: 5t/6t/10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t
  • Double hook: 10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t/450t
  • Hook Block model: 3.2t/ 5t/10t/16t/20t/25t/32t/50t/75t/100t/200t and so on



Hook No:



Different Strength Grade & Mechanism Working Grade & Hook Lifting Capacity

(Hook Capacity Selection Standard)



Material Grade Mechanism Working Grade (According to GB3811 )
M         M3 M4 M5 M6 M7 M8
P       M3 M4 M5 M6 M7 M8
S     M3 M4 M5 M6 M7 M8
T   M3 M4 M5 M6 M7
V M3 M4 M5 M6 M7
Hook No. Lifting Capacity (t)
1   4 3.2 2.5 2 1.6 1.25 1 0.8 0.63
1.6   6.3 5 4 3.2 2.5 2 1.6 1.25 1
2.5   10 8 6.3 5 4 3.2 2.5 2 1.6
4   16 12.5 10 8 6.3 5 4 3.2 2.5
5 25 20 16 12.5 10 8 6.3 5 4 3.2
6 32 25 20 16 12.5 10 8 6.3 5 4
8 40 32 25 20 16 12.5 10 8 6.3 5
10 50 40 32 25 20 16 12.5 10 8 6.3
12 63 50 40 32 25 20 16 12.5 10 8
16 80 63 50 40 32 25 20 16 12.5 10
20 100 80 63 50 40 32 25 20 16 12.5
25 125 100 80 63 50 40 32 25 20 16
32 160 125 100 80 63 50 40 32 25 20
40 200 160 125 100 80 63 50 40 32 25
50 250 200 160 125 100 80 63 50 40 32
63 320 250 200 160 125 100 80 63 50 40
80 400 320 250 200 160 125 100 80 63 50
100 500 400 320 250 200 160 125 100 80 63
125   500 400 320 250 200 160 125 100 80
160     500 400 320 250 200 160 125 100
200       500 400 320 250 200 160 125
250         500 400 320 250 200 160
Note: If working grade below M3, pls take it as M3 into consideration.



Sketches:



heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

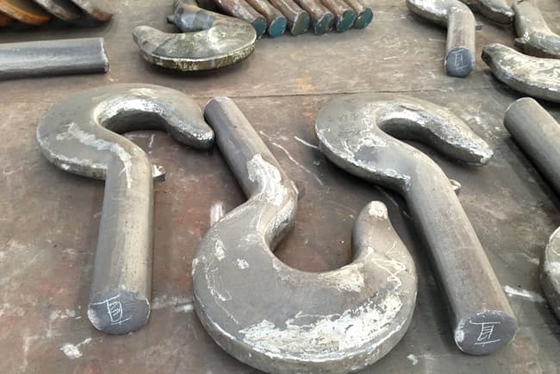

Production:



ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves 3

ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves 4ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves 5

ISO FEM DIN Crane Spare Parts Hook Block Assembly With Pulley Sheaves 6

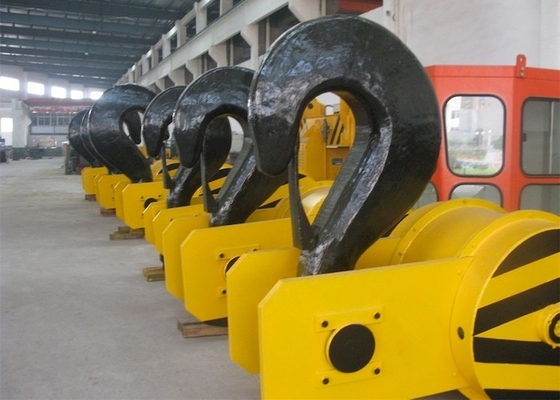

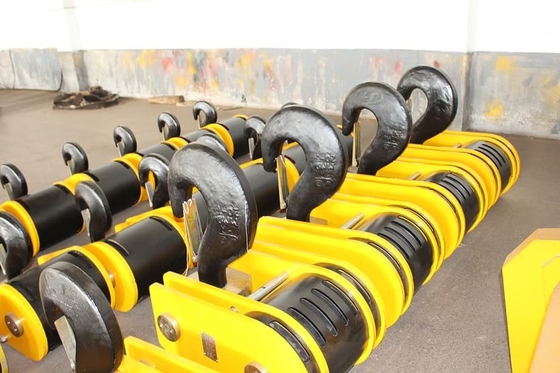

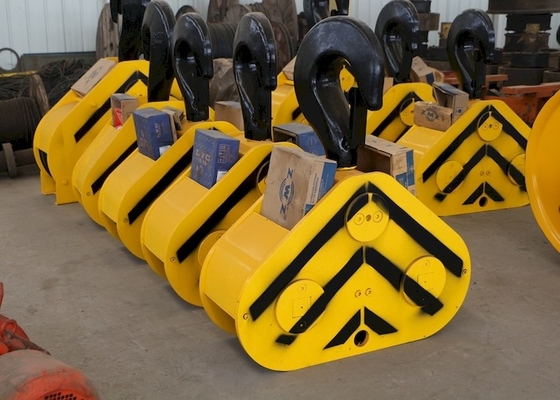

Hook Photos:



heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

heavy duty steel wire hook for overhead crane

To know more details pls contact us now!
