Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant

Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant

  • Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant
  • Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant
  • Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant
  • Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant
Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant
Product Details:
Place of Origin: China
Brand Name: SANTO
Certification: ISO, CE
Model Number: Casting, Forging; double flange, single flange, no flange
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD200-2000
Packaging Details: High quality wood box
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 20000set/year
Contact Now
Detailed Product Description
Flange: Double Flange, Single Flange, No Flange Wheel Load: Up To 200t
Wheel Tread Hardness: HB330-380, HRC50-56 Function: Mobile Devices And Systems, As Single Components Or As Complete Travel Units
Material: 42CrMo ;40CrNi2Mo, 65Mn (SWQR-1 ); 60 And So On Depth Of Quenching: Up To 15mm
Heat Treatment: Quenching & Termpering Manufacturing: Casting And Forging
High Light:

EU Standard Forged Crane Wheels

,

Forged Crane Wheels Wearproof

,

gantry crane wheels Fracture Resistant

European Standard Forged Crane Wheels Heat Treated Hardness For Overhead Crane With Resistant To Flange Fracture Or Wear



Forging crane wheel description:

Forged wheel set is mainly used for crane with large load and severe working conditions, such as metallurgical crane, quenching crane, etc.

Forging wheel is a kind of classification of forgings, mainly used in gantry crane, bridge crane, mining machinery, light rail car also has applications. Also known as: traveling wheel, crown wheel, wheel forging.

Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant 0

Forging wheel group is to use forging machinery to produce plastic deformation on metal blank, and to obtain certain mechanical properties and shapes.

1.Forging Crane wheel form: single flange wheel , double flange wheel , without flange wheel

2.Crane wheel of size available: OD 250mm-950mm

3.Forging crane wheel material: high strength alloy steel, such as Chinese standard #60, 65Mn, 42CrMo and so on or according customer request for Crane wheel .

4. Crane wheel tread surface and flange heat treatment HB300-380, hardness depth more than 10mm .

  • Manufactured from high quality materials, which can be customized as standard.
  • Heat treated using our in house processes to provide a uniform contour hardness in the tread and inner flange wear surfaces, while maintaining a ductile core to resist shock loads.
  • High resistance to wear or flange fracture, pitting and spalling, with a long working life.
  • Reduce maintenance cost of your wheels and wheel assemblies.
  • Improve the life of your rail.
  • Provide an additional 40% load carrying capability over rim toughened wheels.
  • Delivery in 2-5 weeks, less when required



Application of Crane Wheel:

  • Overhead cranes
  • Gantry and portal cranes
  • Jib cranes
  • Transfer carts



SANTO Crane Wheel Service:

  • Crane wheels with advanced design and supervised quality are at your choices.
  • Wide range of crane wheels with the diameters of 150mm to 900mm (6” to 36”) are at your services.
  • Various kinds of crane wheels are provided, such as, single and double flange wheels, forging and casting wheels, etc.
  • Customized crane wheels are available at SANTO.



Advantages of Forged Wheel:

In the forging process of forged wheel, the defects of loose as cast metal produced in the smelting process can be eliminated by forging, the structure of structure can be optimized, and the complete metal flow line can be maintained at the same time. Therefore, the mechanical properties of the forged wheel group are much better than the cast wheels of the same material. We usually use free forging for the forged wheels with large size and small batch, and die forging is the main method for the wheels with small size and large batch.

Each of these in-service factors must be carefully considered before the combination of wheel design, material selection, hardness pattern and heat treating technology is selected.

That’s why every SANTO hardened steel crane wheel is specially designed and heat treated to maximize its resistance to the damaging forces at work in heavy industrial applications.



Technical Specification:

Type: Forging Wheel/Casting Wheel
Application: Crane,trolley,transfer car,heavy duty industry,Port crane,Steel factory etc
Material: Chinese standard #60, 65Mn, 42CrMo
Dimension: Φ250, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800, Φ 1000, Φ1200 or as your require
Process: Forging/Casting
Quality Control: UT,MT,RT,PT,chemical composition test,mechanical property test,etc.
Heat Treatment: Quenching and Tempering
Quenching Depth: no less than 15mm
Coating: Black Oxide+Rust-proof oil
Inspection: Besides our in-house inspecion, you could also choose a third party inspection
Standard: ASTM, ASME, DIN, JIS, ISO, BS, API, EN,GOST,etc
Certificate:

1, Raw material certificate(material chemical compositon)

2, Heat treatment sheet report

3, Dimension inspection report

4, UT/MT test report

Packing: Seaworthy plywood packaged on steel pallets or as customer's request
Delivery Date: 15~30 working days
Competitive Advantage: Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.

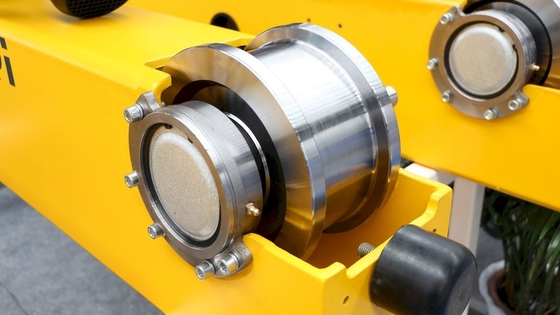

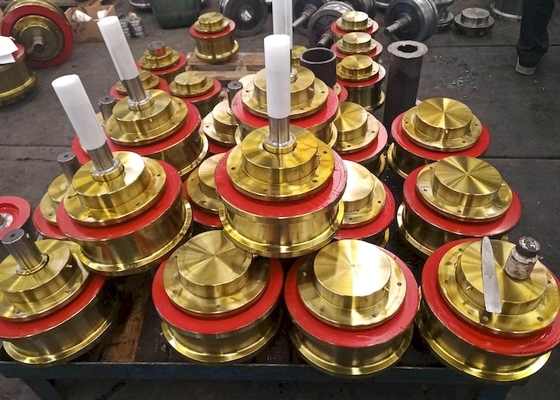

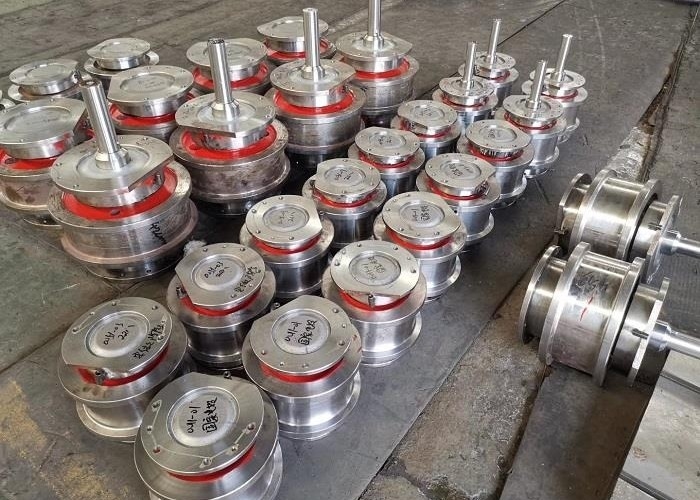

Crane Wheel:

Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant 1

Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant 2Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant 3



Free Inquiry:

We are a professional supplier of Cranes & Lifting Solutions with 37 years experience.
We are the market leader in China and a preferred brand globally. Our market covers over 90 countries, such as Australia, Bangladesh, Iraq, Pakistan, Philippines, USA, Egypt, Peru, India, Turkmenistan, Singapore and so on.

Dedicated Cranes & Lifting Solutions Supplier, such as overhead cranes, gantry cranes, electric hoists, chain hoists, electric winches, jib cranes, truck cranes, or other lift equipment, we can provide you a full range of professional solution supporting and satisfied life cycle service.

Heat Treated Hardness EU Standard Forged Crane Wheels Wearproof Fracture Resistant 4
