| Place of Origin: | China |
| Brand Name: | Telecrane |
| Certification: | ISO |
| Model Number: | F23-A++ |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 79USD-179USD |
| Packaging Details: | Carton Packing |
| Delivery Time: | 5-8 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 8000 Sets / Year |
| Product Name: | F23-A++ Wireless Remote Controller | Material: | Plastic And Silicone, Glass-Fiber PA |
|---|---|---|---|
| Function: | Waterproof, Single Serve | Application: | Lifting Machinery, Crane,hydraulic Crane |
| Color: | Yellow / Red | Protection Level: | IP65 |
| Frequency Range: | 50-60HZ | ||
| High Light: | IP65 Wireless Crane Remote Control,Industrial Wireless Crane Remote Control,Waterproof wireless crane remote |
||

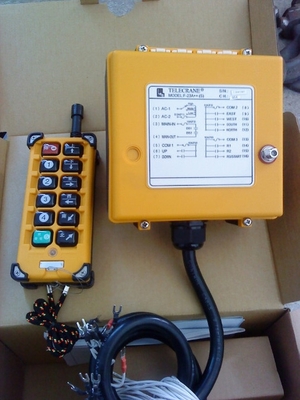

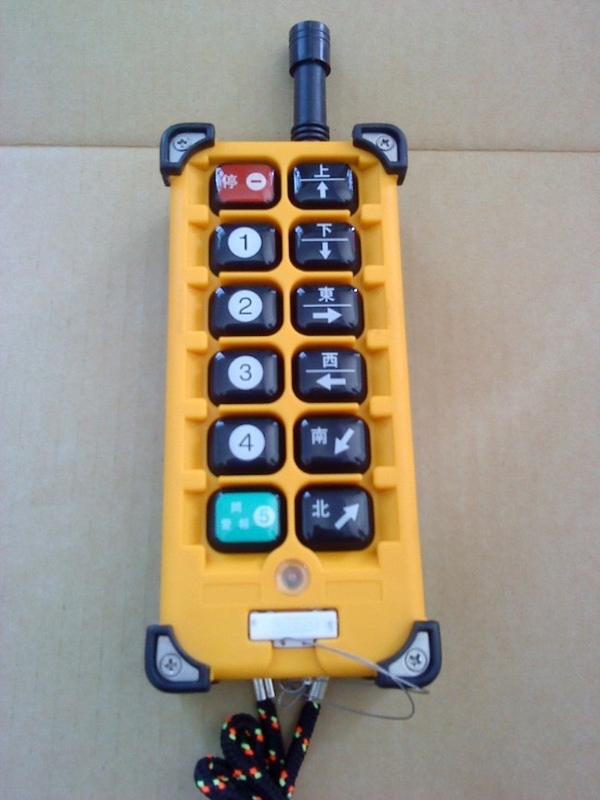

Telecrane F23 Series Remote Controls F23-A++ Industrial Wireless Crane Remote Control
1. With 10 function buttons (10 single speed,3 and 4 are invalid).
2. Control contact is up to 10.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
7. Spare buttons 1-2 can be programed to be normal, toggle, interlock, on/off etc.
8. Start button can be program to be start, normal, toggle function etc.
| Frequency range | 50-60HZ |
| Safety code | 32 bits (4.3 billion) |
| Transmitted power | ≤10dBm |
| Receiver sensitivity | -110dBm |
| Safety code | 32 bits (4.3 billion) |
| Transmitter power supply | 2 AA batteries |
| Receiver power supply | 36V AC,220V AC,380V AC (optional) |
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
| Cable lengtht | 1.65 meters |
| Control distance | Approx100m |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Temperature range | -40℃~+85℃ |
| Transmitter Dimension | 168 x 75 x 46mm |
| Transmitter Weight | 315g(without batteries) |
| Receiver Dimension | 168x166x93mm |
| Receiver Weight | 780g |
