| Place of Origin: | China |
| Brand Name: | Telecrane |
| Certification: | ISO |
| Model Number: | F24-6D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 99USD-199USD |
| Packaging Details: | Carton Packing |
| Delivery Time: | 5-8 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 9999 Sets / Year |
| Product Name: | F24-6D | Material: | Plastic, Plastic And Silicone, Metal |
|---|---|---|---|
| Function: | Waterproof, LED Indicator Light, Anti Shock, Automatic, | Application: | Lifting Machinery, Crane,hydraulic Crane |
| Color: | Yellow,Black | Protection Level:: | IP65 |
| Battery: | AAA | Code: | Copy Code Optional |
| Control Distance: | 100m | ||
| High Light: | IP65 Industrial Overhead Crane,Wireless Industrial Overhead Crane,IP65 Remote Control Overhead Crane |
||

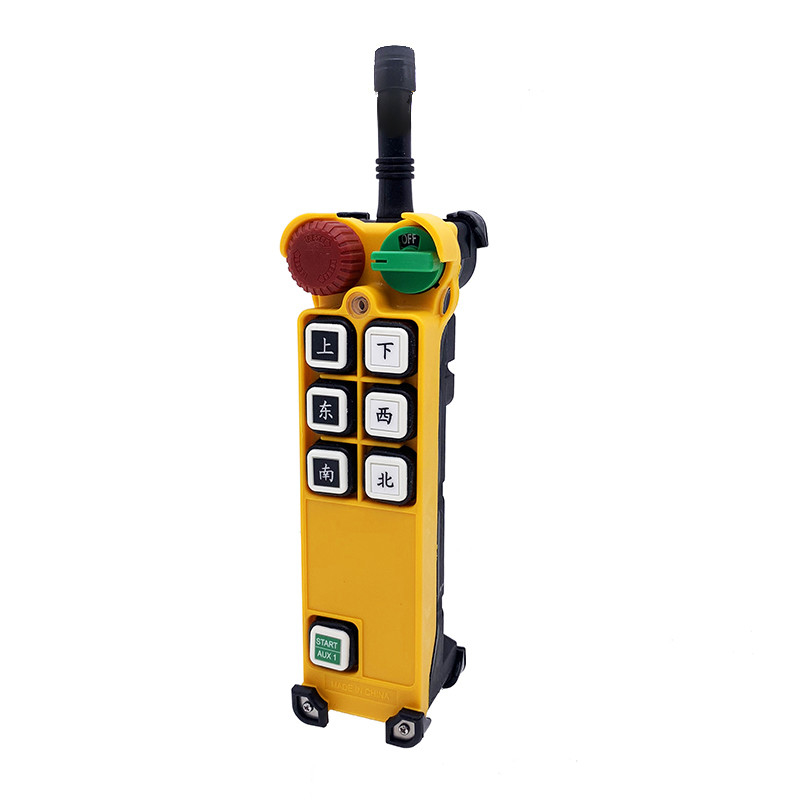

F24-6D Industrial Overhead Crane Telecrane Wireless Remote Control
F24-6D Telecrane 6 Button 2 Speed Factory Wireless Crane Remote Control Industrial Remote Control
1. With ratio module,analog signals can be output (additional costs). Ratio output: standard 0-10V
2. 2 five steps of 10 million times mechanical life Pure proportion joystick without fault of poor contact
3. 6 function keys
4. three positions/tow positions rotating switches
5. Light weight and neck hanging design for Asian ergonomics
6. With 3 steps battery voltage alarm device, the power is cut off during low power
7. Safety key switch
8. Enhanced watch-dog circuit with automatically stop device
9. Signal search and frequency automatic tracking circuit
10. Prevent power from sudden breaking
11. Programmable relays outputs
12. 3 super heterodyne receiving circuits
13. LED and indicator outputs
14. Variety functions and parameters can be set by computer interface
15. Setting free up to users requirements
Product Parameter
| Transmitter Parameters: F24. -TX | |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF: 310~331 MHz; UHF: 425~446MHz |
| Transmitter power | ≤10dBm |
| Transmitter power supply | 2 AA batteries |
| Safety code | 32 bits (4.3 billion) |
| Temperature range | - 40℃~+85℃ |
| Control distance | Approx 100m (200 meters is customized) |

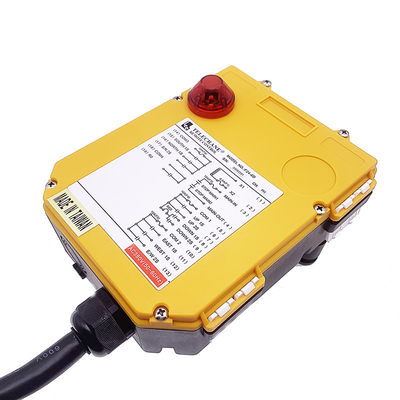

| Receiver Parameters: F24-RXC | |
| Material | Glass -Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF: 310~331MHz; UHF: 425~446MHz |
| Receiver sensitivity | -110dBm |
| Receiver power supply | 18~65V AC/DC / 65~440V AC/DC ( optional ) |
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
| Control distance | Approx 100m (200 meters is customized) |
| Safety code | 32 bits (4.3 billion) |
| Temperature range | - 40℃~+85℃ |
