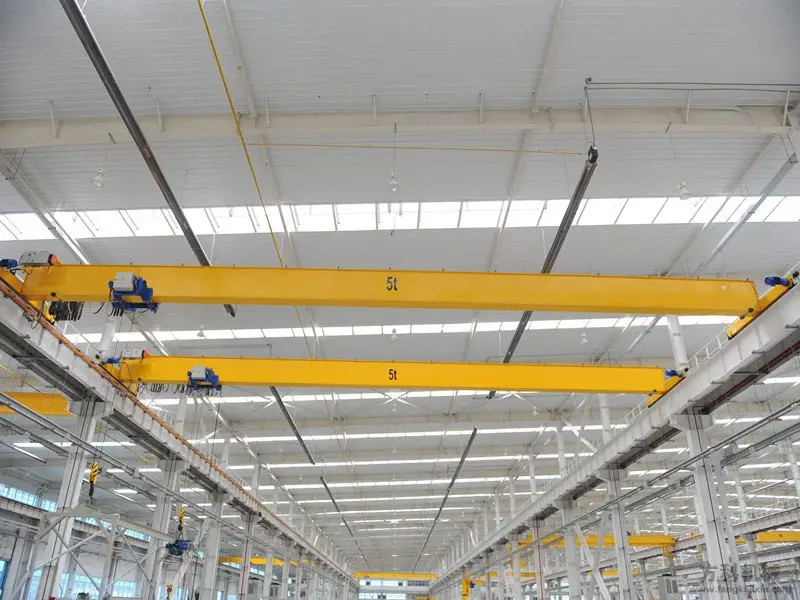

1t-20t FEM Standard 2M European Overhead Crane Single Girder Eot Crane

1t-20t FEM 2M European Model Single Girder Overhead Crane Direct Supplier

Description:

The new European hoist crane is designed and manufactured according to the FEM standards. Cranes are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other components. The standard lifting capacity are 5~20 t. We also can customized the lifting capacity depend on customer requirements. Span is from 7.5 m to 31.5 m. The crane is used widely, it is not only extremely safe, good design, ergonomic, material handling convenient and efficient, but also save the warehouse space due to its compact size structure. Used for machinery manufacturing assembly, warehouse and other places, for the machine equipment manufacturing, maintenance, warehouses and other places, but not suitable for the self-explosion and fire to do dangerous, full corrosive gas medium and relative humidity greater than 85% of the work in the place, not suitable for hanging transport metal.

Features:

1. The lifting hoist adopts M5 working class with double lifting speed.

2. Lifting motor with ABM German brand motor.

3. Long Travelling motor uses SEW/ABM geared motor gear motors.

4. Cross and long traveling are variable travelling speed.

5. Electrical parts adopt Schneider brand.

6. The protection class is IP 54.

7. The working duty can reach to FEM 2M/ISO M5.

Application:

New type single girder bridge crane is design widely used for workshop or warehouse heavy loads transferring in mechanical, Metallurgy, petroleum, petrochemical, ports, railways, civil aviation, electricity, food, paper, building materials, electronics. Especially for loads precise position or precision assembly of large spare parts.



Specification:

Lifting Capacity (t)	Span (m)	Lifting Height (m)	Lifting Speed (m/min)	Hoist Traveling Speed(m/min)	Crane Traveling Speed (m/min)	Recommended Rail Track
1	7.5~31.5	6~12	0.8/5	2~20	3~30	P24
2		6~12	0.8/5	2~20	3~30	P24
3.2		6~12	0.8/5	2~20	3~30	P24
5		6~12	0.8/5	2~20	3~30	P24,P30
10		6~12	0.8/5	2~20	3~30	P30
12.5		6~12	0.66/4	2~20	3~30	P30
16		9~12	0.66/4	2~20	3~30	P43
20		9~12	0.66/4	2~20	3~30	P43
Work Duty	A5
Power	380V, 50Hz or Other
Temperature of Working Environment	﹣20℃~﹢40℃
	Notes: Span, lifting height is customizable as requirements









Crane Details:



1. Light self weight, low noise and few faults, generally used in normal working condition. 2. Designed base on DIN standard 3. Save the power, lower wheel load, so it can reduce the cost of support beam.
	Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.
	Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration.
	The main electric elements adopts the international brands include Siemens, ABB. The protective grade of the electric control box shall no less than IP 54.
	The wheel forged by 55 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.



Safety Protection:



1. Locked fall-proof reducer;

2. Outdoor hoist with rain-cover;

3. Alarm indicator lights;

4. Infrared anti-collision;









Factors need to know for quotation:



Please inform us the following data for the purpose of servicing you better!

Lifting capacity.
Span (rail center to rail center)
Lifting height (Lowest point to ground)
Power supply (380V, 50Hz, AC, 3-Phase, is that ok?)
Working condition: Which materials to lift? Temperature?
