| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5000-45000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | Max. Lifting Height: | 6m~30m |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Lifting Mechanism: | Electric Hoist | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | 0.8/5m/min | Place Of Origin: | Henan Of China |
| Working Duty: | A3-A5 | ||
| High Light: | 22m span Single Girder Bridge Crane,22m span european overhead crane,Single Girder Bridge Crane Energy Efficient |
||

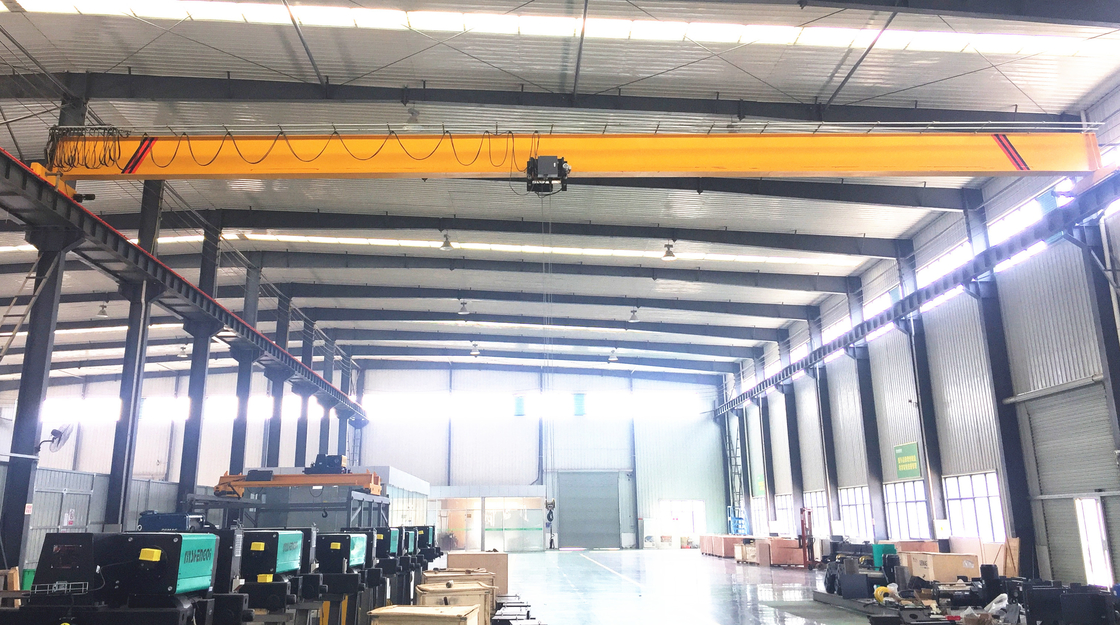

10ton 22m Span Indoor Using European Model Single Girder Overhead Bridge Crane
Description:
European bridge cranes have light weight, compact structure and low energy consumption. A trolley and a hoisting mechanism are set on the bridge. The trolley can run forward and backward, and the cart can run and other mechanisms to realize the transportation of materials in three-dimensional space. European cranes With unique design concept, it has the characteristics of small size, light weight and small wheel pressure.
Standard Specification:
|
Lifting Capacity (t) |
Span (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
Crane Traveling Speed (m/min) |
Recommanded Track |
||
| 1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | ||
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |||
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |||
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |||
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| Duty Class | ISO A5 / FEM 2m / ANSI, ASME HST-4 H4 | |||||||
| Power | 380V, 50Hz or Other | |||||||
| Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||||
Crane Advantage:
|
Item |
List in details |
Main Description |
|
Main Girder |
Steel Structure |
The main beam adopts box-type structure |
|
Hoist System |
Lifting Motor |
60% ED IP55 |
|
Lifting Gear |
Hardened Gear |
|
|
Lifting Brake |
Disk Brake |
|
|
Steel Wire Rope |
High strength galvanizing |
|
|
Main elec. parts |
SCHNEIDER |
|
|
End carriage
|
Structure |
European Design |
|
Painting |
Primer painting only |
|
|
Joint bolts |
10.9 High strength bolt |
|
|
LT Electrical cabinet |
Electric Box |
IEC / IP55 |
|
Inverter |
Equipped |
|
|
Main electrical parts |
Schneider |
|
|
Accessories
|
Cable for trolley and lifting |
Equipped |
|
Festoon rail & cable trolley |
C Type Rail |
|
|
Bracket for trolley LS |
Equipped |
|
|
Bracket for bridge cubicle |
Equipped |
Application:
European Overhead Crane could be widely used in the machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil-aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handing situations, esp. Applied to material handling that needs precise positioning, large components precise assembly situation.
In order to save cost and time for you,we need your provide below information:
1. Which kinds of overhead crane do you need?
2. FOB or CIF price?(If CIF price,tell us your destination port)
3. Quantity?(set)
4. Lifting capacity?(ton)
5. Lifting height?(m)
6. Span?(m)
7. Which kind of material does if lift?
8. Working voltage?(V,HZ,Phase)
9. Working environment?
10. How many hours the crane works one day?
11. Any other requirement do you need?
