| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5500-45000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 20-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500set/year |
| Span: | 7.5-31.5m | Feature: | Bridge Crane |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Product Name: | Overhead Travelling Crane,Electric Double Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale |
| Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
| Color: | Yellow, Red, Or As Requirments | Power Supply: | 220V~480V 50/60Hz |
| Lifting Mechanism: | Double Girder Electric Hoist With Trolley, Open Winch Hoist Trolley | Lifting Speed: | Inverter Speed 0~8m/min |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | ||
| High Light: | European Overhead Crane Variable Speed,Electric Bridge Crane Variable Speed,6.3ton Electric Bridge Crane |
||

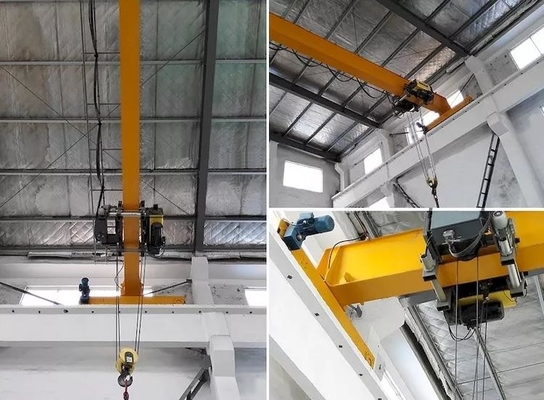

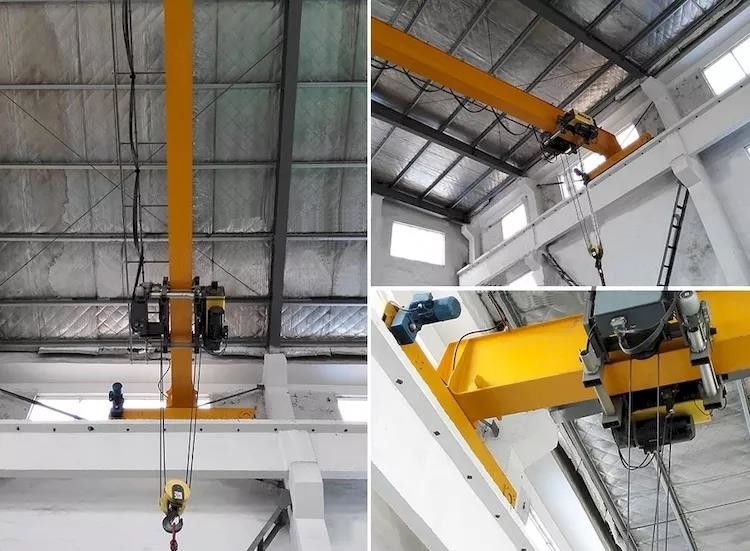

6.3ton European Model Single Beam Girder Crane With Variable Speed For Hoist And Crane
Description:
FEM/DIN standard double girder overhead crane is designed and manufactured with European standard. The lifting capacity of this FEM/DIN double standard overhead crane can be up to 550t. The trolley is installed between two main girders. Thus it increases the traveling scope of spreader. This crane is with reliable performance, flexible application range, easy to operate and convenient to maintain.
Specification:
| Control way | Pendent line control, Cabin control and remote control |
| Electrical parts | SCHNEIDER, SIEMENS, CHINT |
| VFD | SCHNEIDER, SIEMENS, CHINT, YASKAWA |
| Motor | XINDALI, JMU, ABM. ABB, WEG. SIEMENS or any special specified |
| Reducer | TAILONG, TAIXING, SEW or any special specified |
| Working duty | A5/A6/A7/A8 |
| Overload limiter | YES/NO |
| Audible and visual alarm | YES/NO |
Features:
1. Lightweight and Modular Design, Overall height is 20%~25% lower than traditional cranes;
2. Self-weight is lighter by 20%~30%;
3. Max wheel load reduces 15%~20%;
4. Smaller limiting size increases working scope;
5. Light structure reduces the cost of workshops;
6. Every component designed to be a standard series and interchangeable;
7. Modularization design is easy for transporting;
8. Standard modular design makes good quality and fast delivery.
Advanced Manufacturing Technology:
1. Sandblast pretreatment on steel plates and the surface quality reaches Sa2.5;
2. CNC cutting machine cuts webs plate to insure the curved surface is smooth and accurate;
3. Seams are soldered by automatic arc welding and detected by ultrasonic and X-ray ;
4. The structure of girder and trolley is manufactured by floor-type boring lathe to insure flatness.
Intelligent:
1. Electric anti-sway tech realize accurate positioning;
2. Advanced electric control tech turn it into a crane robot with semi-automatic control and full-automatic control;
Safety Protection:
Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.
Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
Contact Person: Miss. Alice Yuan
Tel: 13569821405
