| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5000-15000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500set/year |
| Condition: | New | Span: | 7.5-31.5m |
|---|---|---|---|
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Max. Lifting Load: | 1-20t | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Supply: | 220V~480V 50/60Hz |
| Lifting Speed: | Inverter Speed Or Dual Speed 0~5m/min | ||
| High Light: | customizable Single Beam EOT Crane,customizable 5 ton EOT Crane,European Single Beam EOT Crane |
||
Description:

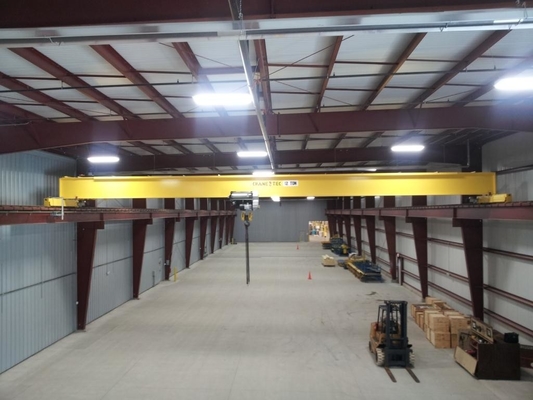

Single-beam Overhead Crane are designed with high configuration, which is developed with advanced design technology referring to
European FEM standard. Cranes are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other
components.
This newly developed overhead crane are with compact layout and modularized structural design allows effective use of the
available lifting height and reduce the investment on the steel structure of workshop.
Specification:
|
Lifting Capacity (t) |
Span (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
Crane Traveling Speed (m/min) |
Recommended Rail Track |
| 1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 |
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
| Work Duty | A5 | |||||
| Power | 380V, 50Hz or Other | |||||
| Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||
| Notes: Span, lifting height is customizable as requirements | ||||||
Safety Protection:
1. Locked fall-proof reducer;
2. Outdoor hoist with rain-cover;
3. Alarm indicator lights;
4. Infrared anti-collision;
