| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD800-5000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
| Color: | Green | Power Supply: | 220V~480V 50/60Hz |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | Lifting Speed: | 0.3-8m/min |
| HS Code: | 84251100 | Traveling Speed: | 20m/min |
| High Light: | OEM 3 ton wire rope hoist,Electric Wire Rope Hoist 20m/min,wire rope crane hoist 20m/min |
||

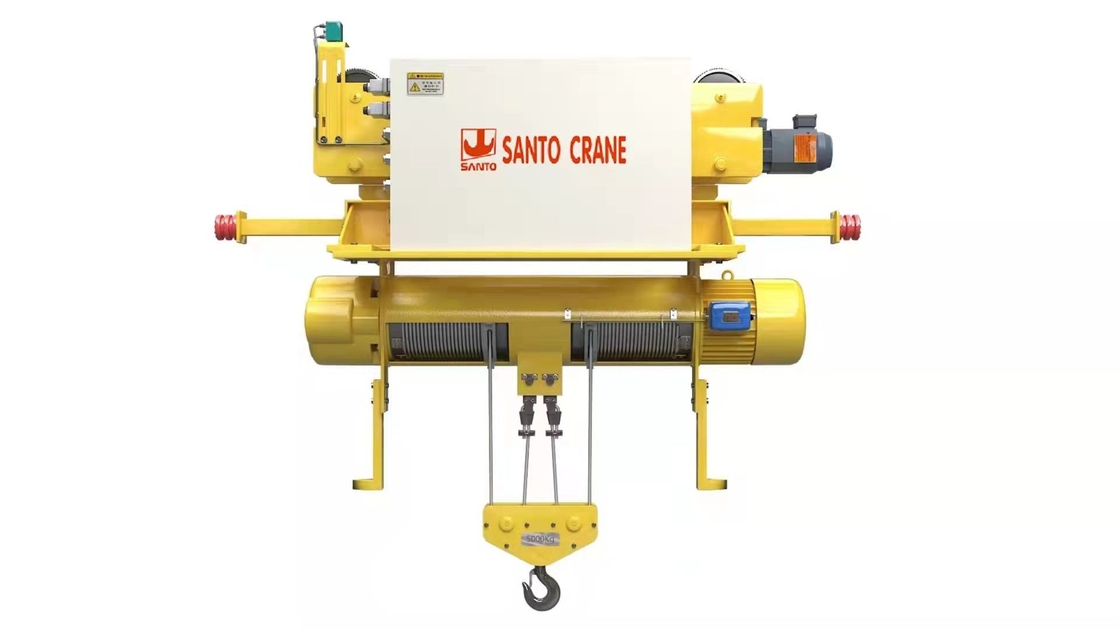

Hot Sale 3 Ton OEM Electric Wire Rope Hoist Winch With Lifting Motor Electric Hoist
Description:
An electric wire rope hoist is driven by an electric motor to make heavy lifting easier. Furthermore, it is both secure and handy. Because electric wire rope hoists are more convenient than manual hoists, they are used by around 80% of businesses. From general manufacturing, to tools and die plants, or steel foundries.These are just a few industries where a wire rope hoist is needed to lift and move heavy loads of tools, raw materials, or even finished products.
Application:
The hoist is mounted to the trolley and performs the actual lifting function via a hook or lifting attachment. There are two basic types of hoist. Our Santo Wire Rope Hoist which is very durable and will provide long term, reliable usage. The other type of hoist is Chain Hoist.
Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Advantages of SANTO Wire Rope Electric Hoist:
Superior quality and heavy-duty hoists.
Easy as well as potent load handling.
It is useful for crane modifications and plant reconstruction.
DC Disk motor brake.
High-quality rope for wear resistance.
Models that are adaptable and offer a wide range of options based on exertion.
Comprehensive, compact design.
Easily available in the market.
Portable and weatherproof.
Standard Technical Specification of Wire Rope Electric Hoist:
| Model | CD | MD | |||
| Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 | 10, 20, 30 | ||
| Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
|
Lifting mechanism |
Lifting Speed (m/min) |
8 | 7, 3.5 | 8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
| Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
| Duty Class | M3 | ||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
| Working temperature | -20~40℃ | ||||
| Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
| Brake | Integrated on motors | ||||
| Control model | Pendant pushbutton control or wireless remote control | ||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Detailed Features:
Work duty is high,can be applied to all kinds of bad place,and the price is good.
Testing System:
SANTO invests a lot in hi-tech equipment to improve strength of the enterprise.
Arrivals of large enterprises have enhanced automation of production and strengthened scientific content and quality of SANTO Products.
SANTO has its own technical test center which recognized by national standards on labs audited by CNAS
Photos:
