Place of Origin: | CHINA |
Brand Name: | SANTO |
Certification: | ISO, CE |
Model Number: | CD/MD/BCD/BMD/HC |
Minimum Order Quantity: | 1set |
---|---|
Price: | 600USD~1800USD |
Packaging Details: | Packed by high quality plywood crate |
Delivery Time: | 7-15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10000set/year |
Max. Lifting Height: | 6m~30m | Control Method: | Wireless Remote Control, Pendant Control |
---|---|---|---|
Rated Loading Capacity: | 0.5-20t, Max Up To 50t | Color: | Green, Yellow, Blue, Or As Requirments |
Power Source: | 3 Phase 380V 50hz Or Be Customized | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
Lifting Speed: | 0.3-8m/min | HS Code: | 84251100 |
Application: | Warehouse And So On,Factory | ||
High Light: | Wire Rope Crane Hoist Wear Resistance,compact Wire Rope Hoist Wear Resistance,weatherproof Wire Rope Crane Hoist |

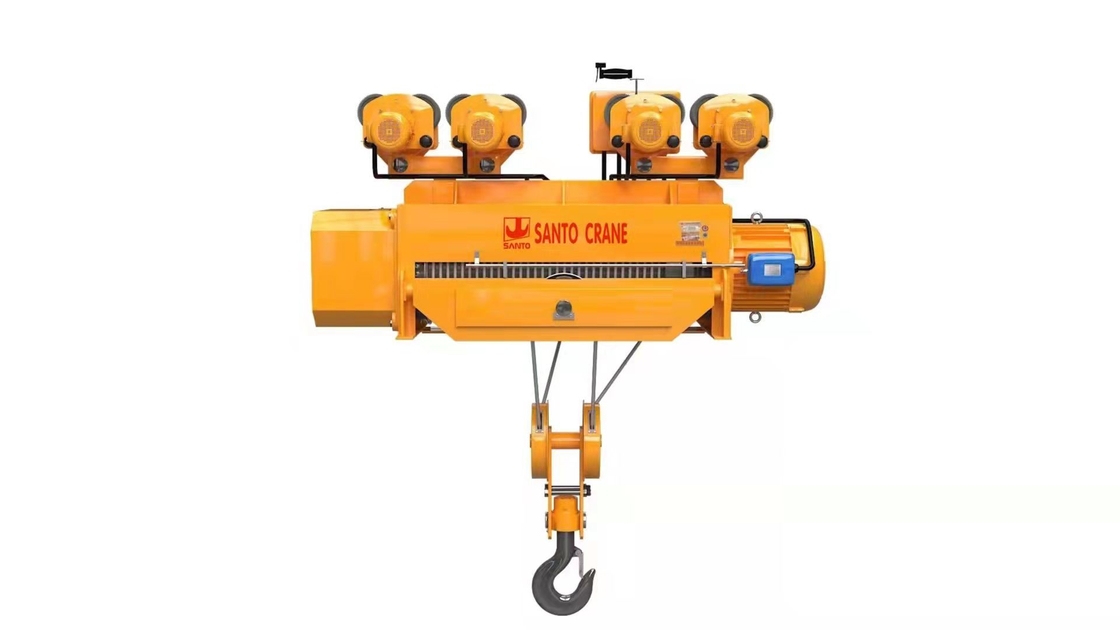

Wireless Remote Control Electric Wire Rope Hoist With Ropes Drum
Description:
CD1/MD1 type electric hoist has the characteristics of compact structure, light weight, small size, convenient operation, etc. CD1 type is single-speed while MD1 type has dual speed.It can be installed on bridge cranes, gantry cranes and cantilever cranes. Therefore, it is commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, etc.
Application:
The hoist is mounted to the trolley and performs the actual lifting function via a hook or lifting attachment. There are two basic types of hoist. Our Santo Wire Rope Hoist which is very durable and will provide long term, reliable usage. The other type of hoist is Chain Hoist.
Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Advantages of SANTO Wire Rope Electric Hoist:
Superior quality and heavy-duty hoists.
Easy as well as potent load handling.
It is useful for crane modifications and plant reconstruction.
DC Disk motor brake.
High-quality rope for wear resistance.
Models that are adaptable and offer a wide range of options based on exertion.
Comprehensive, compact design.
Easily available in the market.
Portable and weatherproof.
Details:
CD MD Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured accord demand.
MOTORS: We offer hoist & crane duty Vz hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.
ROPE DRUM: The rope drum is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.
ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is designed to ensure proper tensioning of the rope.
GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.
CONSTRUCTION: brake, motors, gear box & control panel are independent units and accessible easily. The complete hoist can be easily maintained by keeping it in its installed position, thus saving precious labor as well as down time and maintenance time.
Standard Technical Specification of Wire Rope Electric Hoist:
Model | CD | MD | |||
Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 | 10, 20, 30 | ||
Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
Lifting mechanism |
Lifting Speed (m/min) |
8 | 7, 3.5 | 8/0.8 |
7/0.7, 3.5/0.35 |
Lifting height (m) |
6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
Duty Class | M3 | ||||
Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
Working temperature | -20~40℃ | ||||
Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
Brake | Integrated on motors | ||||
Control model |
Pendant pushbutton control or wireless remote control |
NOTE: According to your needs, we can also provide electric hoist to custom.
