| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 600USD~1800USD |
| Packaging Details: | Packed by high quality plywood crate |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000set/year |
| Max. Lifting Height: | 6m~30m | Control Method: | Wireless Remote Control, Pendant Control |
|---|---|---|---|
| Rated Loading Capacity: | 0.5-20t, Max Up To 50t | Color: | Green, Yellow, Blue, Or As Requirments |
| Power Source: | 3 Phase 380V 50hz Or Be Customized | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | 0.3-8m/min | HS Code: | 84251100 |
| Application: | Warehouse And So On,Factory | ||
| High Light: | 5Ton Electric Wire Rope Hoist,Pendant Control Electric Wire Rope Hoist |
||

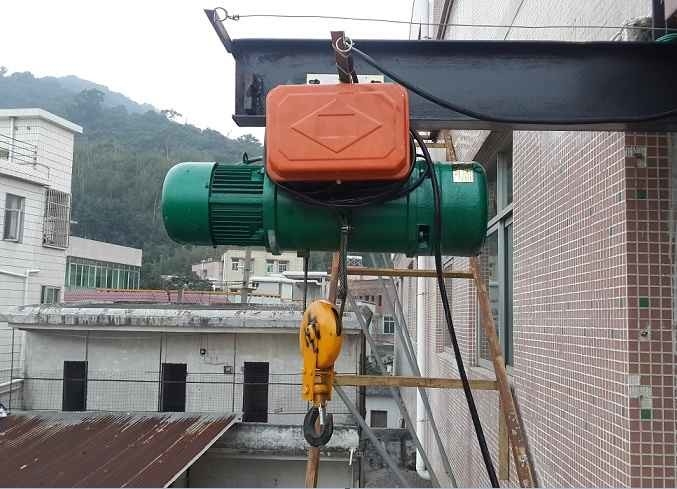

Pendant Control 5Ton Electric Wire Rope Hoist With Motorized Trolley
Description:
CD1/MD1 type electric hoist has the characteristics of compact structure, light weight, small size, convenient operation, etc. CD1 type is single-speed while MD1 type has dual speed.It can be installed on bridge cranes, gantry cranes and cantilever cranes. Therefore, it is commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, etc.
Application:
The hoist is mounted to the trolley and performs the actual lifting function via a hook or lifting attachment. There are two basic types of hoist. Our Santo Wire Rope Hoist which is very durable and will provide long term, reliable usage. The other type of hoist is Chain Hoist.
Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Advantages of SANTO Wire Rope Electric Hoist:
Superior quality and heavy-duty hoists.
Easy as well as potent load handling.
It is useful for crane modifications and plant reconstruction.
DC Disk motor brake.
High-quality rope for wear resistance.
Models that are adaptable and offer a wide range of options based on exertion.
Comprehensive, compact design.
Easily available in the market.
Portable and weatherproof.
Standard Technical Specification of Wire Rope Electric Hoist:
| Model | CD | MD | |||
| Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 | 10, 20, 30 | ||
| Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
|
Lifting mechanism |
Lifting Speed (m/min) |
8 | 7, 3.5 | 8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
| Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
| Duty Class | M3 | ||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
| Working temperature | -20~40℃ | ||||
| Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
| Brake | Integrated on motors | ||||
| Control model |
Pendant pushbutton control or wireless remote control |
||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Testing System:
SANTO invests a lot in hi-tech equipment to improve strength of the enterprise.
Arrivals of large enterprises have enhanced automation of production and strengthened scientific content and quality of SANTO Products.
SANTO has its own technical test center which recognized by national standards on labs audited by CNAS
Photos:
