Place of Origin: | CHINA |
Brand Name: | SANTO |
Certification: | ISO, CE |
Model Number: | CXTS |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD2000-10000/set |
Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
Delivery Time: | 30-35 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000set/year |
Condition: | New | Warranty: | 12 Months |
---|---|---|---|
Span: | 7.5-31.5m | Feature: | Bridge Crane |
Max. Lifting Height: | 6m~30m | Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist, Double Girder Wire Rope Overhead Travelling Crane For Sale |
Application: | Workshop,Warehouse,plants,factory,warehouse And So On | Control Method: | Wireless Remote Control,Ground Control,pendant Control |
Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | ||
High Light: | 10t European Overhead Crane,10ton European Travelling Crane,European Overhead Crane With Sew Motor |

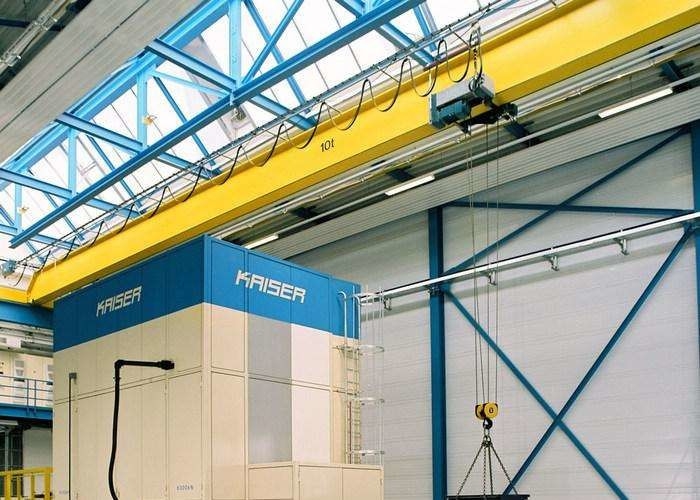

10ton Single Beam European Travelling Crane With Sew Motor
Description:
Features:
1. The lifting hoist adopts M5 working class with double lifting speed.
2. Lifting motor with ABM German brand motor.
3. Long Travelling motor uses SEW/ABM geared motor gear motors.
4. Cross and long traveling are variable travelling speed.
5. Electrical parts adopt Schneider brand.
6. The protection class is IP 54.
7. The working duty can reach to FEM 2M/ISO M5.
Specification:
Lifting Capacity (t) |
Span (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
Crane Traveling Speed (m/min) |
Recommended Rail Track |
1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 |
2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |
5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |
10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |
12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |
16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |
Work Duty | A5 | |||||
Power | 380V, 50Hz or Other | |||||
Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||
Notes: Span, lifting height is customizable as requirements |
Advantage:
1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;
2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;
3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;
4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.
5. Low energy consumption and maintenance free;
6. Whole crane energy saving about 30%;
7. All-in-one transmission mechanism making it work more efficient;
8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;
9. Less and easy maintenance reduces the cost of maintenance;
10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost.
Crane Details:
1. Light self weight, low noise and few faults, generally used in normal working condition. |
|
Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation. | |
Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration. | |
The main electric elements adopts the international brands include Siemens, ABB. The protective grade of the electric control box shall no less than IP 54. | |
The wheel forged by 55 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life. |
Safety Protection:
1. Locked fall-proof reducer;
2. Outdoor hoist with rain-cover;
3. Alarm indicator lights;
4. Infrared anti-collision;
Factors need to know for quotation:
Please inform us the following data for the purpose of servicing you better!
Lifting capacity.
Span (rail center to rail center)
Lifting height (Lowest point to ground)
Power supply (380V, 50Hz, AC, 3-Phase, is that ok?)
Working condition: Which materials to lift? Temperature?
