| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD800-1800/set |
| Packaging Details: | Packed by high quality plywood crate |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
| Color: | Green, Yellow, Blue, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider | HS Code: | 84251100 |
| Hook: | High Class Alloy Steel With High Strength And Security | ||
| High Light: | 3 Ton Electric Wire Rope Hoist,OEM Electric Wire Rope Hoist,OEM 3 Ton Electric Hoist |
||
Hot Sale 3 Ton OEM Electric Wire Rope Hoist Winch With Lifting Motor Electric Hoist
Description:
CD1 MD1 Electric hoist holds the advantage of light dead weight, small size, compact structure and steady working. They could be installed on single girder crane, jib crane and other lift equipment. The lift speed of CD1 type is single speed, could fit different factory, mine, port, warehouse and shop application.
Application:
Steel 10 Ton Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Advantages of SANTO Wire Rope Electric Hoist:
1, High Efficiency and Make the Most of space
2, Accurate orientation,highly-efficient operation,improved logistics efficiency.
3, Safe and reliable,monitored operation,easy maintenance.
4, Modularized desigh,low maintenance cost,perfect spare parts and components services
Detailed Features:
Work duty is high,can be applied to all kinds of bad place,and the price is good.
| Rope drum | high-quality seamless pipes and processed by numeral control machine, after the special finishing, the rope groove on reel works coordinately with rope guide to efficiently prevent rope loose and tangling. | |
| Steel rope | Employ import steel rope with high strength which has tensile strength of 2160N/m2, with good safety performance and long service life. | |
| Rope guide | Strong abrasion resistance and good self-lubricating performance, which greatly reduces the wear of steel rope as main force safety components and then enhances safety of hoisting mechanism. | |
| Motor of hoisting mechanism | It has low current for start and large torque; With soft starting and good performance in speed up; Have long service life; The technique parameter comply with standards of FEM and HMI; With high rotational speed and low noise; |
|
| Brake | Have fast movement and high reliability. It's maintenance-free and self-regulated; Employ dustproof design and long service life. |
|
Note: can be according to your request make non-standard products.
Specification:
| Load capacity (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lift height (m) | 3-9 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Hositing speed (m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | 3.5(3.5/0.35) | 3 |
| Traveling speed (m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | 20 |
| Recommend track | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45b-63c | 56b-63c |
| Standard power source | 380V 50HZ 3 phase | |||||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Testing System:
SANTO invests a lot in hi-tech equipment to improve strength of the enterprise.
Arrivals of large enterprises have enhanced automation of production and strengthened scientific content and quality of SANTO Products.
SANTO has its own technical test center which recognized by national standards on labs audited by CNAS

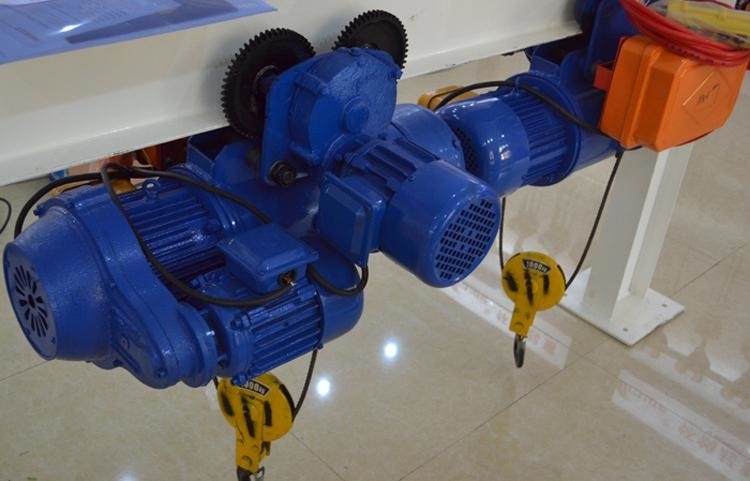

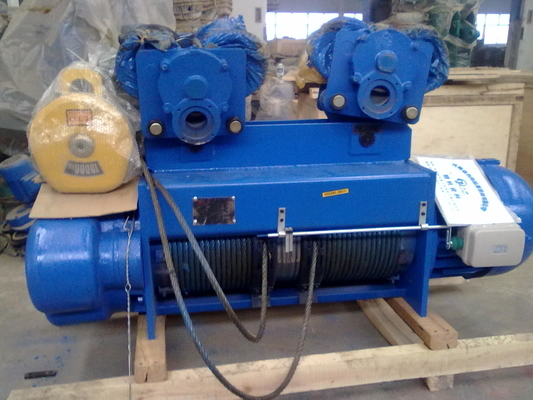

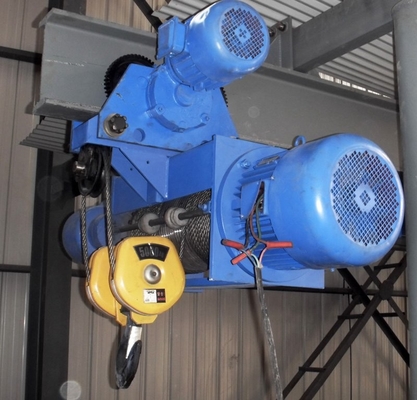

Photos:
