| Place of Origin: | China |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | Standard hook |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD100-3000 |
| Packaging Details: | High quality plywood crate by LCL container shipping |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000set/year |
| Warranty: | 1 Year | Application: | For Crane Material Handling |
|---|---|---|---|
| Condition: | New | Material: | Standard |
| After-sales Service Provided: | Online Support,Video Technical Support,Field Installation,commissioning And Training | Feature: | High Quality |
| Name: | 10 Ton Crane Hook Block Mobile Crane Hooks Lifting Hook | ||
| High Light: | ISO Crane Lifting Block Hook,10Ton Crane Lifting C Hook |
||
Crane Lifting Spare Block Hook C Hook Crane Parts
Description:
Crane hooks are a part of a hoist or winch of cranes such as overhead crane and gantry crane. Santo provides light duty hooks (cap. 0.5t - 20t), heavy duty hooks (cap. 20t - 500t), forged hooks, laminated hooks and all kinds of special-purpose hooks.
1. Application scope: Hooks for Electric hoist, winch and crane.
2. Two shapes: single hook and double hook. Single hook is easy to make and convenient to use, and its lifting capacity is usually under 80t. When the lifting weight is large, double hook is a better choose for its load-bearing is symmetric.
3. Two types: casting hook and laminated hook. Laminated hook is safer, and its dead weight is larger. It’s usually used to lift large weights and steel ladle.
4. Good-tenacity and high-quality carbon steel is the best material to make hook since it’s good to absorb impact.
5. Hook lifting capacity is 5t to 500t.
| Crane forging hook |
|
| Materials: |
|
| Model: |
|
Hook No:
Different Strength Grade & Mechanism Working Grade & Hook Lifting Capacity
(Hook Capacity Selection Standard)
| Material Grade | Mechanism Working Grade (According to GB3811 ) | |||||||||
| M | M3 | M4 | M5 | M6 | M7 | M8 | ||||
| P | M3 | M4 | M5 | M6 | M7 | M8 | ||||
| S | M3 | M4 | M5 | M6 | M7 | M8 | ||||
| T | M3 | M4 | M5 | M6 | M7 | |||||
| V | M3 | M4 | M5 | M6 | M7 | |||||
| Hook No. | Lifting Capacity (t) | |||||||||
| 1 | 4 | 3.2 | 2.5 | 2 | 1.6 | 1.25 | 1 | 0.8 | 0.63 | |
| 1.6 | 6.3 | 5 | 4 | 3.2 | 2.5 | 2 | 1.6 | 1.25 | 1 | |
| 2.5 | 10 | 8 | 6.3 | 5 | 4 | 3.2 | 2.5 | 2 | 1.6 | |
| 4 | 16 | 12.5 | 10 | 8 | 6.3 | 5 | 4 | 3.2 | 2.5 | |
| 5 | 25 | 20 | 16 | 12.5 | 10 | 8 | 6.3 | 5 | 4 | 3.2 |
| 6 | 32 | 25 | 20 | 16 | 12.5 | 10 | 8 | 6.3 | 5 | 4 |
| 8 | 40 | 32 | 25 | 20 | 16 | 12.5 | 10 | 8 | 6.3 | 5 |
| 10 | 50 | 40 | 32 | 25 | 20 | 16 | 12.5 | 10 | 8 | 6.3 |
| 12 | 63 | 50 | 40 | 32 | 25 | 20 | 16 | 12.5 | 10 | 8 |
| 16 | 80 | 63 | 50 | 40 | 32 | 25 | 20 | 16 | 12.5 | 10 |
| 20 | 100 | 80 | 63 | 50 | 40 | 32 | 25 | 20 | 16 | 12.5 |
| 25 | 125 | 100 | 80 | 63 | 50 | 40 | 32 | 25 | 20 | 16 |
| 32 | 160 | 125 | 100 | 80 | 63 | 50 | 40 | 32 | 25 | 20 |
| 40 | 200 | 160 | 125 | 100 | 80 | 63 | 50 | 40 | 32 | 25 |
| 50 | 250 | 200 | 160 | 125 | 100 | 80 | 63 | 50 | 40 | 32 |
| 63 | 320 | 250 | 200 | 160 | 125 | 100 | 80 | 63 | 50 | 40 |
| 80 | 400 | 320 | 250 | 200 | 160 | 125 | 100 | 80 | 63 | 50 |
| 100 | 500 | 400 | 320 | 250 | 200 | 160 | 125 | 100 | 80 | 63 |
| 125 | 500 | 400 | 320 | 250 | 200 | 160 | 125 | 100 | 80 | |
| 160 | 500 | 400 | 320 | 250 | 200 | 160 | 125 | 100 | ||
| 200 | 500 | 400 | 320 | 250 | 200 | 160 | 125 | |||
| 250 | 500 | 400 | 320 | 250 | 200 | 160 | ||||
| Note: If working grade below M3, pls take it as M3 into consideration. | ||||||||||
Sketches:
Production:

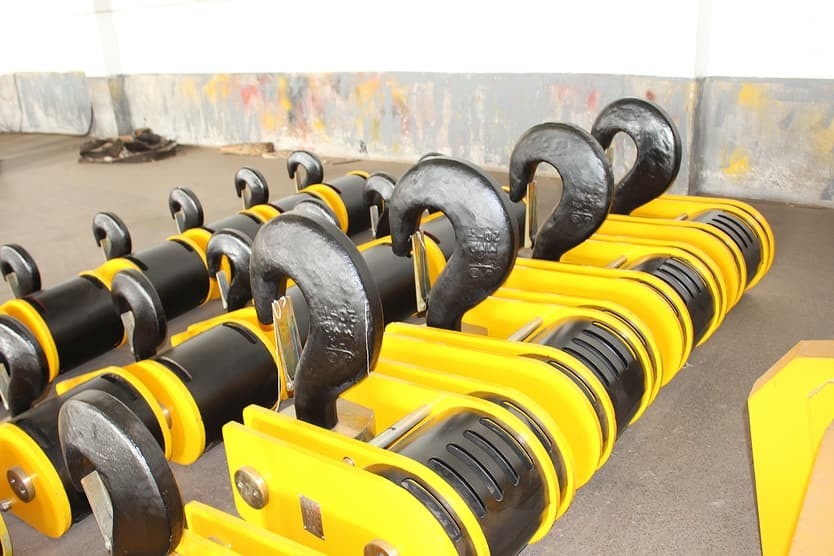

Hook Photos:
To know more details pls contact us now!
