| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD800-4800/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 8000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
| Color: | Green, Yellow, Blue, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | 0.3-8m/min | HS Code: | 84251100 |
| High Light: | Concrete Lifting Electric Wire Rope Hoist,Cd Electric Wire Rope Hoist,Md Electric Hoist |
||
Made In China Concrete Lifting Electric Wirerope Hoist Equipment For Sale Cd Md Electric Hoist
Description:
Electric wire rope hoist also belongs to special lifting equipment, which can be installed on I-beams alone or on electric or manual single-beam, double-beam, cantilever, gantry and other cranes. The motor generally uses a conical motor, which automatically locks the brake after stopping. The wire ropes matched with it include phosphating-coated wire ropes, galvanized wire ropes and smooth wire ropes.
Advantages of SANTOWire Rope Electric Hoist:
1, High Efficiency and Make the Most of space
2, Accurate orientation,highly-efficient operation,improved logistics efficiency.
3, Safe and reliable,monitored operation,easy maintenance.
4, Modularized desigh,low maintenance cost,perfect spare parts and components services
Specification:
| Load capacity (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lift height (m) | 3-9 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
| Hositing speed (m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | 3.5(3.5/0.35) | 3 |
| Traveling speed (m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | 20 |
| Recommend track | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45b-63c | 56b-63c |
| Standard power source | 380V 50HZ 3 phase | |||||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Detailed Features:
Work duty is high,can be applied to all kinds of bad place,and the price is good.
Application:
Steel 10 Ton Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Testing System:
SANTO invests a lot in hi-tech equipment to improve strength of the enterprise.
Arrivals of large enterprises have enhanced automation of production and strengthened scientific content and quality of SANTO Products.
SANTO has its own technical test center which recognized by national standards on labs audited by CNAS

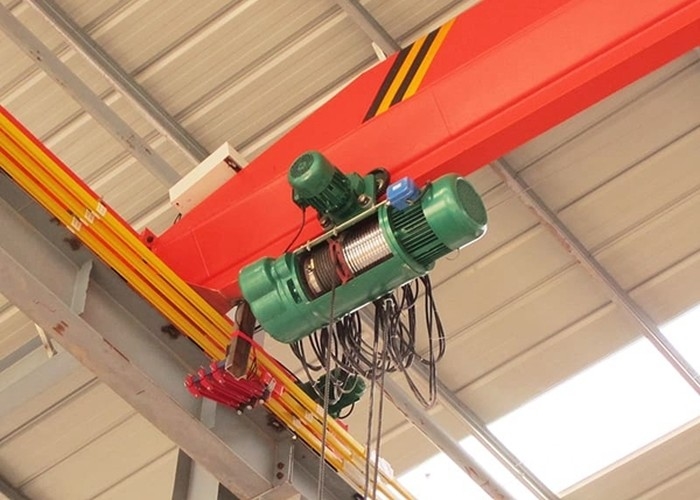

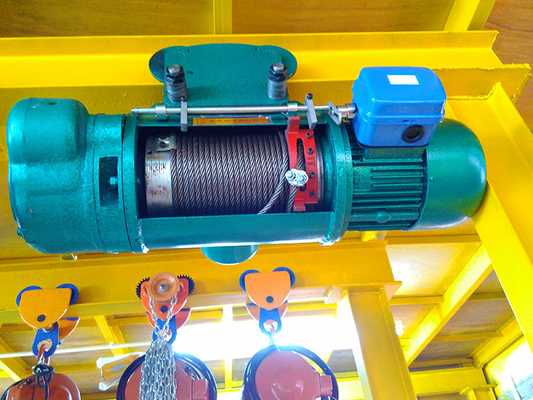

Photos:
