European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane

Product Details:

Place of Origin:	CHINA
Brand Name:	SANTO
Certification:	ISO, CE
Model Number:	CXTS, CXTD

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2000-10000/set
Packaging Details:	Packed by high quality plywood crate
Delivery Time:	10-25 working days
Payment Terms:	L/C, T/T
Supply Ability:	5000set/year

Contact Now

Detailed Product Description

Condition:	New	Warranty:	12 Months
Max. Lifting Load:	20t	Max. Lifting Height:	3-18m
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service	Rated Lifting Moment:	Different
Product Name:	European Type Electric Hoist	Application:	Workshop,Warehouse,plants,factory,warehouse And So On
Control Method:	Wireless Remote Control,Ground Control,pendant Control	Rated Loading Capacity:	1-20t
Color:	Yellow,Blue,Green, Or As Requirments	Power Source:	3 Phase 380V 50hz Or Be Customized
Power Supply:	220V~480V 50/60Hz	Type:	Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane
Lifting Mechanism:	Electric Hoist	Lifting Speed:	0~8m/min
Main Electrical Parts:	Chint, Or As Requirments Siemens, Schneider
High Light:	10Ton Electric Wire Rope Hoist , 8m/min Electric Wire Rope Hoist , 18m European Overhead Crane

For Lifting Crane 5 Ton 10 Ton European Standard Electric Wire Rope Hoist

FEM/DIN Package Monorail Electric Hoist

The electric wire rope hoist designed for single girder cranes follows the European FEM /DIN standards with compact structure, safe and efficient, easy operation. Industries use these electric wire rope hoists along with electric trolley for single girder cranes or another alternative like a fixed suspension type for applications involving goods lifting.

Electric Hoist part

Cap.	Lift height	Code	Lift speed	Lift power	Travel speed	Travel power	Lift duty class	Travel duty class	H	C	Gauge
t	m	Code	m/min	KW	m/min	KW	Lift duty class	Travel duty class	mm	mm	mm
2	6	SQ021413FBNA	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	9	SQ021413FBNB	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	12	SQ021413FBNC	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	15	SQ021413FBND	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	18	SQ021413FBNE	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
3.2	6	SQ031413FBNA	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	9	SQ031413FBNB	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	12	SQ031413FBNC	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	15	SQ031413FBND	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	18	SQ031413FBNE	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
5	6	SQ051415FENA	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	9	SQ051415FENB	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	12	SQ051415FENC	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	15	SQ051415FEND	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	18	SQ051415FENE	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
6.3	6	SQ061415FENA	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	9	SQ061415FENB	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	12	SQ061415FENC	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	15	SQ061415FEND	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	18	SQ061415FENE	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
8	6	SQ082411FHNA	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	9	SQ082411FHNB	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	12	SQ082411FHNC	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	15	SQ082411FHND	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	18	SQ082411FHNE	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
10	6	SQ102411FHNA	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	9	SQ102411FHNB	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	12	SQ102411FHNC	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	15	SQ102411FHND	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	18	SQ102411FHNE	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
12.5	6	SQ122411FJNA	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	9	SQ122411FJNB	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	12	SQ122411FJNC	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	15	SQ122411FJND	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	18	SQ122411FJNE	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	250~350
16	6	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	9	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	12	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	15	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	18	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
20	6	SQ204412EKLA	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	9	SQ204412EKLB	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	12	SQ204412EKLC	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	15	SQ204412EKLD	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	18	SQ204412EKLE	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350

- Loading capacity: 1.25 ~ 20t

- Lifting height: 6 ~ 18m

- Lifting speed Double speed: 0.8/5 m/min; or customized

- Traveling speed Variable frequency speed: 2 ~ 20 m/min; or customized

- Working class: M5 / M6 (FEM 2M/3M)

- Working temperature: -20 ~ 40 ℃

- Power supply: AC-3Phase-220//230/380/400/415/440V-50/60Hz

- Control voltage: DC-36 / 48V

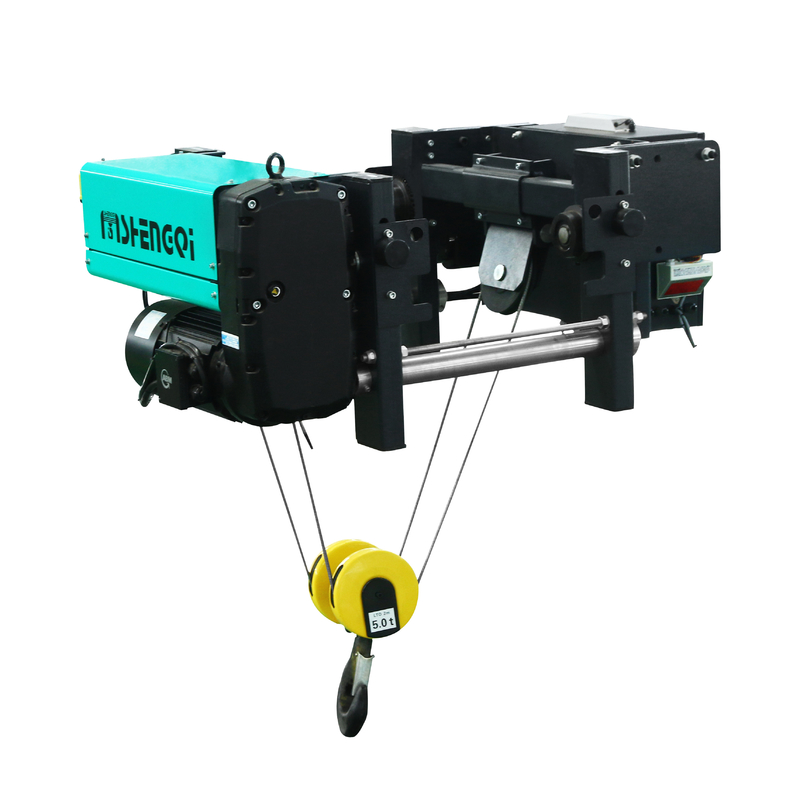

European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane 0

European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane 1
