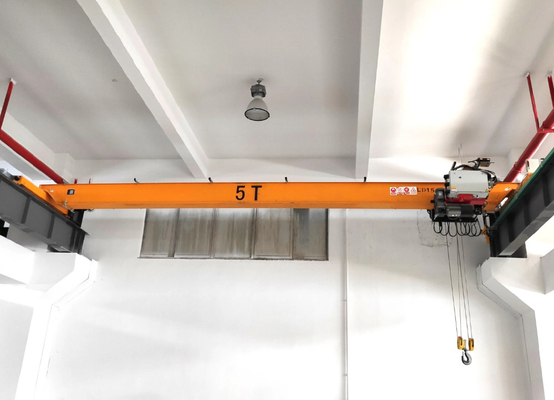

FEM 5Ton Single Beam European Overhead Crane With Trolley Yellow Painting

Specification:

Advantage:

1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;

2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;

3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;

4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.

5. Low energy consumption and maintenance free;

6. Whole crane energy saving about 30%;

7. All-in-one transmission mechanism making it work more efficient;

8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;

9. Less and easy maintenance reduces the cost of maintenance;

10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost.

Crane Details:

1. Light self weight, low noise and few faults, generally used in normal working condition. 2. Designed base on DIN standard 3. Save the power, lower wheel load, so it can reduce the cost of support beam.
	Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.
	Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration.
	The main electric elements adopts the international brands include Siemens, ABB. The protective grade of the electric control box shall no less than IP 54.
	The wheel forged by 55 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.

Safety Protection:

1. Locked fall-proof reducer;

2. Outdoor hoist with rain-cover;

3. Alarm indicator lights;

4. Infrared anti-collision;

Company Information:

Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.

Factors need to know for quotation:

Please inform us the following data for the purpose of servicing you better!

Lifting capacity.
Span (rail center to rail center)
Lifting height (Lowest point to ground)
Power supply (380V, 50Hz, AC, 3-Phase, is that ok?)
Working condition: Which materials to lift? Temperature?
