| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CXTS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-10000/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000set/year |
| Condition: | New | Warranty: | 12 Months |
|---|---|---|---|
| Span: | 7.5-31.5m | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service |
| Feature: | Bridge Crane | Max. Lifting Height: | 6m~30m |
| Rated Lifting Moment: | Different | Max. Lifting Load: | 20t |
| Product Name: | Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist,5 Ton Single Girder Wire Rope Overhead Travelling Crane For Sale | Application: | Workshop,Warehouse,plants,factory,warehouse And So On |
| Control Method: | Wireless Remote Control,Ground Control,pendant Control | Rated Loading Capacity: | 1-20t |
| Color: | Yellow, Red, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Crane Feature: | Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane |
| Type: | Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane | Lifting Mechanism: | Electric Hoist |
| Lifting Speed: | 0~8m/min | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| High Light: | Single Beam Overhead Bridge Crane,10Ton Overhead Bridge Crane,Remote Control European Overhead Crane |
||

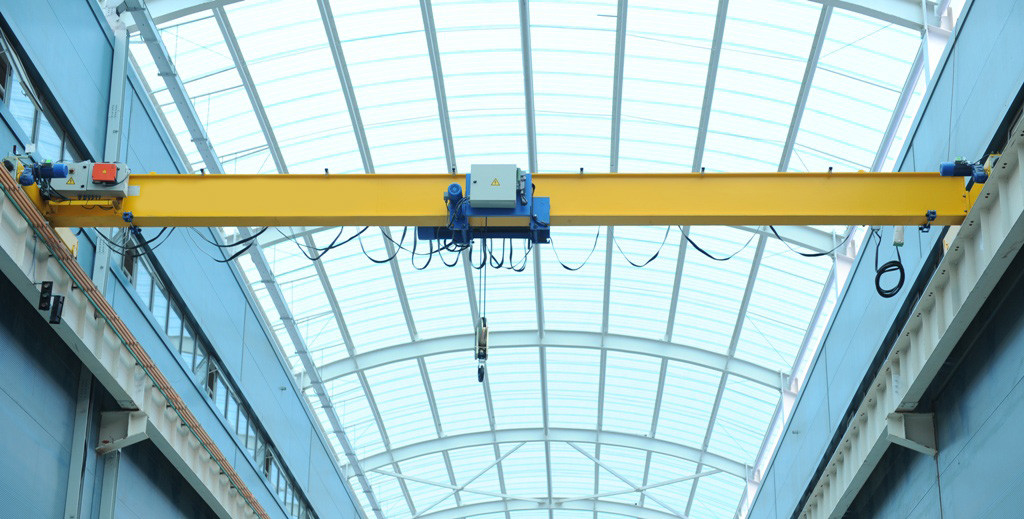

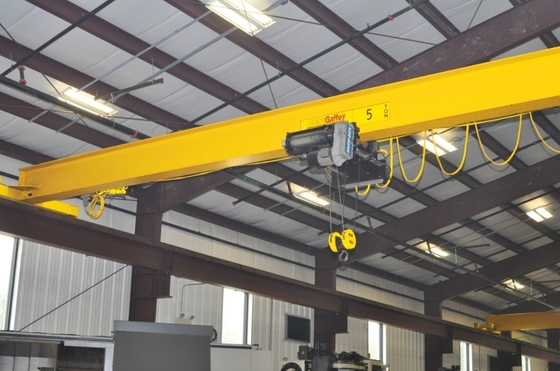

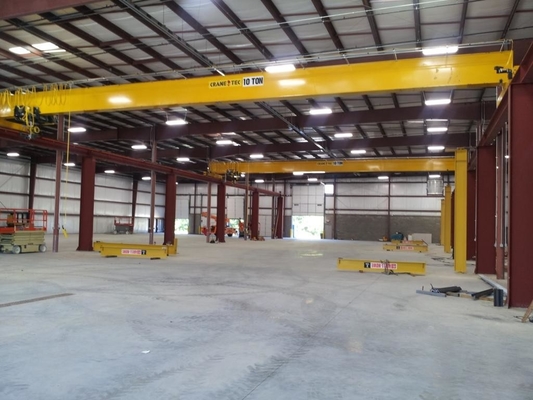

Indoor European Single Beam Overhead Light Top Running Bridge Crane 10 Ton Remote Control
Description:
European bridge cranes have light weight, compact structure and low energy consumption. A trolley and a hoisting mechanism are set on the bridge. The trolley can run forward and backward, and the cart can run and other mechanisms to realize the transportation of materials in three-dimensional space. European cranes With unique design concept, it has the characteristics of small size, light weight and small wheel pressure.
Compared with traditional cranes, the limit distance from the hook to the ground (floor) is the smallest, and the clearance height is the lowest. Keli cranes can work closer to the front and have a higher lifting height, which actually increases the effective working space of the existing workshop. As the crane has the characteristics of light weight and small wheel pressure, the new workshop can be designed with smaller space and more complete functions. Smaller plants mean considerable savings in initial construction investment, as well as long-term heating, air conditioning and other maintenance costs.
Standard Specification:
|
Lifting Capacity (t) |
Span (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Hoist Traveling Speed(m/min) |
Crane Traveling Speed (m/min) |
Recommanded Track |
||
| 1 | 7.5~31.5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | ||
| 2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 3.2 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24 | |||
| 5 | 6~12 | 0.8/5 | 2~20 | 3~30 | P24,P30 | |||
| 10 | 6~12 | 0.8/5 | 2~20 | 3~30 | P30 | |||
| 12.5 | 6~12 | 0.66/4 | 2~20 | 3~30 | P30 | |||
| 16 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| 20 | 9~12 | 0.66/4 | 2~20 | 3~30 | P43 | |||
| Duty Class | ISO A5 / FEM 2m / ANSI, ASME HST-4 H4 | |||||||
| Power | 380V, 50Hz or Other | |||||||
| Temperature of Working Environment | ﹣20℃~﹢40℃ | |||||||
Safety Device:
1. Crane traveling limit switch
2. Overload protection system
3. Emergency stop syestem
4. Voltage lower protection function
5. Current overload protection system
6. Hoisting upper and lower limit switch
Crane Advantage:
|
Item |
List in details |
Main Description |
|
Main Girder |
Steel Structure |
The main beam adopts box-type structure |
|
Hoist System |
Lifting Motor |
60% ED IP55 |
|
Lifting Gear |
Hardened Gear |
|
|
Lifting Brake |
Disk Brake |
|
|
Steel Wire Rope |
High strength galvanizing |
|
|
Main elec. parts |
SCHNEIDER |
|
|
End carriage
|
Structure |
European Design |
|
Painting |
Primer painting only |
|
|
Joint bolts |
10.9 High strength bolt |
|
|
LT Electrical cabinet |
Electric Box |
IEC / IP55 |
|
Inverter |
Equipped |
|
|
Main electrical parts |
Schneider |
|
|
Accessories
|
Cable for trolley and lifting |
Equipped |
|
Festoon rail & cable trolley |
C Type Rail |
|
|
Bracket for trolley LS |
Equipped |
|
|
Bracket for bridge cubicle |
Equipped |
Application:
European Overhead Crane could be widely used in the machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil-aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handing situations, esp. Applied to material handling that needs precise positioning, large components precise assembly situation.
In order to save cost and time for you,we need your provide below information:
1. Which kinds of overhead crane do you need?
2. FOB or CIF price?(If CIF price,tell us your destination port)
3. Quantity?(set)
4. Lifting capacity?(ton)
5. Lifting height?(m)
6. Span?(m)
7. Which kind of material does if lift?
8. Working voltage?(V,HZ,Phase)
9. Working environment?
10. How many hours the crane works one day?
11. Any other requirement do you need?
