| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | GTZN |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD55000-89000/set |
| Packaging Details: | Standard export packing by FCL or LCL shipping. |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set per year |
| Warranty: | 1 Year | Lift Mechanism: | Scissor Lift |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Rated Loading Capacity: | Max. Up To 680kg |
| Max. Lifting Height: | 18m | Color: | Blue,Customers' Requirements |
| Material: | High Strength Manganese Steel | Power Source: | Diesel Engine |
| High Light: | 680kg Diesel Scissor Lift,1.83m Platform diesel scissor lift,3.98m scissor lift for uneven ground |
||
Efficient And Safer Scissor Lift Platform Machine With Diesel Engine
General description:
Rough Terrain Scissor Lifts are tough, construction-oriented four-wheel drive machines with positive traction control — ideal for increasing productivity in demanding outdoor worksites. Rough Terrain scissor lifts are able to traverse through uneven or rough terrain environments more efficiently. They are equipped with four-wheel drive and positive traction control for traction when you need it most. They offer up to 50% gradeability when driving on slopes.
Specification:
|
Size |
|||
|
Model |
GTJN 10 |
GTJN 13 |
GTJN 16 |
|
Maximum Working Height(A) |
12m |
15m |
18m |
|
Maximum Platform Height(B) |
10m |
13m |
16m |
|
Overall Length(C) |
4..88m |
4..88m |
4..88m |
|
Overall Width(D) |
2.27m |
2.27m |
2.27m |
|
Platform Size(Length/Width F) |
3.98 x 1.83m |
3.98 x 1.83m |
3.98 x 1.83m |
|
Slide-out platform extension |
1.30m |
1.30m |
1.30m |
|
Minimum Ground Clearance |
0.22m |
0.22m |
0.22m |
|
Wheel Base |
2.86m |
2.86m |
2.86m |
|
Performance |
|||
|
S.W.L |
1000kg |
680kg |
680kg |
|
S.W.L On Extension |
230kg |
230kg |
230kg |
|
Maximum platform occupancy |
7 |
7 |
7 |
|
Minimum Turning Radius(Inside/Outside) |
2.35m/5.2m |
2.35m/5.2m |
2.35m/5.2m |
|
Travel Speed(Stowed) |
6.8km/h |
6.8km/h |
6.8km/h |
|
Travel Speed(Raised) |
1km/h |
1 km/h |
1 km/h |
|
Maximum Gradeability |
50% |
50% |
50% |
|
Maximum Working Slope |
3° |
3° |
3° |
|
Tyre - rough terrain |
33×12-20 |
33×12-20 |
33×12-20 |
|
Power |
|||
|
Power source |
Perkins404D22 38kW/3000rpm |
Perkins404D22 38kW/3000rpm |
Perkins404D22 38kW/3000rpm |
|
Auxiliary Power unit |
12V DC |
12V DC |
12V DC |
|
Fuel tank capacity |
100L |
100L |
100L |
|
Hydraulic system capacity |
130L |
130L |
130L |
|
Weight |
|||
|
Gross Weight(with outriggers) |
7940kg |
8200kg |
9190kg |
Advantages:
► For narrow rough terrain applications, Excellent crossing ability on the outdoor tough working sites.
► Large working platform and handing with multi-position extensions capacity to generate great productivity.
► Self leveling hydraulic outriggers make it more durable at uneven ground.
► Vertical lift maintenance. On-board diagnostics for easy troubleshooting.
► Work cycle is double than other scissor lift.
Applications:
The scissor lift table can walk fast and slow at different heights, and can continuously complete up and down, forward, backward, steering and other work in a convenient operating platform in the air. This product adopts high-quality structural steel, laser welding electronic manipulator single-sided welding double-sided forming process, aerospace cartridge valve technology, the platform is equipped with alarm devices such as level alarm, balance valve, automatic safety board, etc., the platform is safe, reliable and durable, and the working height can be adjusted. Up to 12 meters, with a load of 300 kilograms, the fence can be extended horizontally, which greatly expands the scope of work, and is suitable for customers who need high-altitude operations such as factory workshops, square lobby airports, and parks.

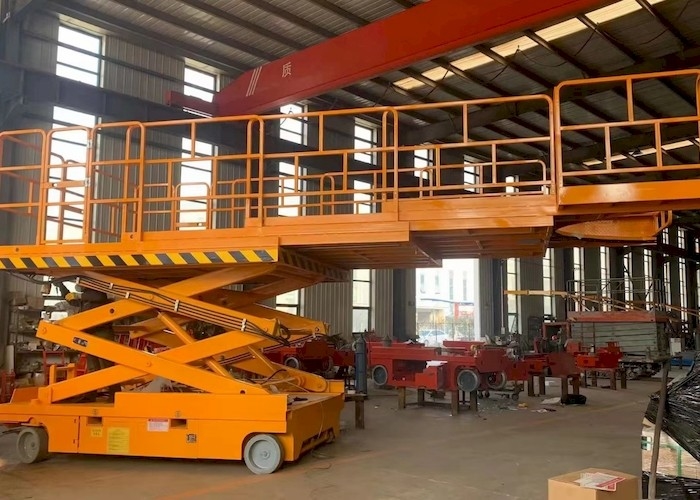

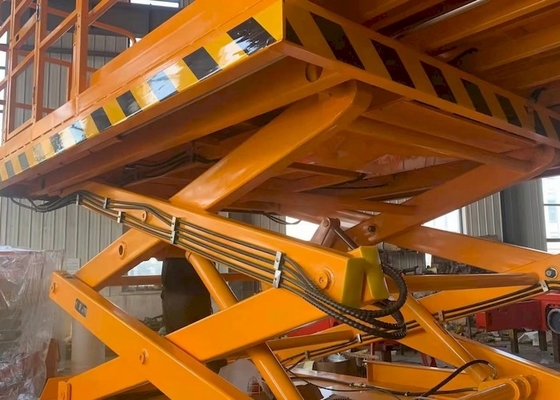

Picture show:
