| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | GTJZ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD8000-18000/set |
| Packaging Details: | Standard export packing by FCL or LCL shipping. |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set per year |
| Warranty: | 1 Year | Lift Mechanism: | Hydraulic Scissor Lift |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Rated Loading Capacity: | 230kg, 320kg, Max. Up To 450kg |
| Max. Lifting Height: | 14m | Color: | Blue,Customers' Requirements |
| Material: | High Strength Manganese Steel | Power Source: | Battery |
| Application: | Aerial Work Platform | Origin: | China |
| High Light: | Self Propelled Electric Scissor Lift,14m Height Electric Scissor Lift,300kg Mobile Aerial Work Platform |
||
8m 10m 12m 14m Working Height 300kg Capacity Self Propelled Electric Scissor Lift Mobile Platform Aerial Work Platform
General description:
SANTOCRANES offers you the self propelled scissor lift series aerial work platform (AWP), comes with vertical lift and platform extension functions, suitable for indoor and outdoor environments. Widely used in electrical, petrochemical, aircraft maintenance, manufacturing equipment installation and maintenance fields. The user can complete the walking and lifting operation directly on the platform to realize the continuous operation of a single person at high altitude. Chassis on both side of the spin out of the electrical box,easy access to components,easy maintenance.
Self Propelled Scissor Lift provides long lasting performance and great productivity. It is ideal for indoor and outdoor construction, maintenance and installation applications with level surfaces. It can be used as an aerial work platform (AWP) for people or as a cargo lift for material.
Specification:
|
|
Electric Motor Drive |
Hydraulic Motor Drive |
|||||
|---|---|---|---|---|---|---|---|
|
Model |
GTJZ10E |
GTJZ12E |
GTJZ06M |
GTJZ06 |
GTJZ08 |
GTJZ10 |
GTJZ12 |
|
Lift Capacity(kg) |
320 |
320 |
230 |
230 |
230 |
320 |
320 |
|
Lift Capacity Extension(kg) |
113 |
113 |
120 |
120 |
113 |
113 |
113 |
|
Max Platform Occupants |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Max Working Height(m) |
12 |
14 |
7.8 |
7.8 |
10 |
12 |
14 |
|
Max Platform Height(m) |
10 |
12 |
5.8 |
5.8 |
8 |
10 |
12 |
|
Overall Length(m) |
2.47 |
2.47 |
1.83 |
1.83 |
2.47 |
2.47 |
2.47 |
|
Overall Width(m) |
1.18 |
1.18 |
0.76 |
0.81 |
0.81 |
1.18 |
1.18 |
|
Stowed Height-Rails Unfolded(m) |
2.4 |
2.56 |
2.1 |
2.1 |
2.32 |
2.4 |
2.56 |
|
Stowed Height-Rails Folded(m) |
1.8 |
1.96 |
/ |
/ |
1.99 |
1.8 |
1.96 |
|
Platform Size(LXW)(m) |
2.26×1.15 |
2.26×1.15 |
1.63×0.74 |
1.63×0.74 |
2.26×0.81 |
2.26×1.15 |
2.26×1.15 |
|
Platform Extension Length(m) |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Ground Clearance(Stowed)(m) |
0.1 |
0.1 |
0.06 |
0.06 |
0.1 |
0.1 |
0.1 |
|
Ground Clearance(Raised)(m) |
0.02 |
0.02 |
0.02 |
0.02 |
0.02 |
0.02 |
0.02 |
|
Wheelbase(m) |
1.85 |
1.85 |
1.32 |
1.32 |
1.85 |
1.85 |
1.85 |
|
Turning Radius(Inside/Outside)(m) |
0/2.3 |
0/2.3 |
0/1.55 |
0/1.55 |
0/2.1 |
0/2.3 |
0/2.3 |
|
Driving Motor |
24V/0.81kw |
24V/0.81kw |
/ |
/ |
/ |
/ |
/ |
|
Lifting Motor |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
24V/3.3kw |
|
Driving Speed(Stowed)(km/h) |
4 |
4 |
4 |
4 |
3.5 |
3.5 |
3.1 |
|
Driving Speed(Raised)(km/h) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Up/Down Speed(sec) |
62/74 |
65/90 |
16/29 |
16/29 |
30/40 |
62/74 |
65/90 |
|
Battery |
4×6V/225Ah |
4×12V/300Ah |
4×6V/225Ah |
4×6V/225Ah |
4×6V/225Ah |
4×6V/225Ah |
4×12V/300Ah |
|
Charger |
24V/27.1A |
24V/27.1A |
24V/30A |
24V/30A |
24V/27.1A |
24V/27.1A |
24V/27.1A |
|
Max Gradeability |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Max Slope(°) |
2/3 |
1.5/3 |
1.5/3 |
1.5/3 |
2/3 |
2/3 |
1.5/3 |
|
Tyre |
380×130 |
380×130 |
305×115 |
305×115 |
380×130 |
380×130 |
380×130 |
|
Machine Weight(kg) |
3000 |
3300 |
1560 |
1570 |
2000 |
3000 |
3300 |
Features & Details
► Only two hydraulic lines and four fittings, 90% more simple than similar products, greatly reducing the possibility of leakage.
► Equipped with no-marking solid tires, more flexible and suitable for traveling on soft ground.
► Complete self-diagnosis and alarm function can automatically troubleshoot and reset, and reflect equipment status, battery status and dangerous working conditions, such as pit, tilt, lift and so on.
► Equipped with the DC drive motor and single hydraulic cylinder, combined with unique scissor design, greatly improving the overall efficiency. Energy saving, so that the battery cycle can last twice as long or more.
Standard configuration
| ● Proportional controls | ● Tilt protection system |
| ● Self-lock gate on platform | ● All Motion Alarm |
| ● Unidirection extended platform | ● Horn |
| ● Full travel | ● Work schedule |
| ● Non marking tyre | ● Safety brackets |
| ● Hydraulic motor drive | ● Forklift pockets |
| ● Automatic brakes system | ● Charger protection |
| ● Emergency lowering system | ● Flashing beacon |
| ● Emergency stop button | ● Folding guardrails |
| ● Tubing explosion system | ● Automatic pothole protection |
| ● Fault diagnosis system |
Optional configuration
| ● Overload sensor | ● AC power on the platform |
| ● Platform work lights | ● Airline to the platfrom |
Rough Terrain Scissor Lift
Excellent crossing ability on the outdoor tough working sites.
Much larger working area and more loading capacity to generate great productivity.
Optional Hydraulic Leveling Oil Cylinder makes it more durable at uneven ground.
Work cycle is double than other scissor lifts.
Heavy Load Scissor Lift
Simple structure, easy operation. Extra ordinary lifting capacity , up to 500kg. Larger work area (wider platform, no change on max lifting capacity on extension), higher efficiency.
Advantages:
Advanced controlling system and first class hydraulic components to ensure you reaching the expected height with good steadiness.
High tensile steel scissor mechanism , advanced processing technology and our slot sewing techniques can ensures you feeling as stable as on the ground.
Premium brand hydraulic components, qualified reliable pumps and valves to ensure the excellent crossing ability in the rough terrain application.
Reinforced chassis with thicker steel plate, hydraulic motor drive and enlarged balance weight ensure the great stability on work.

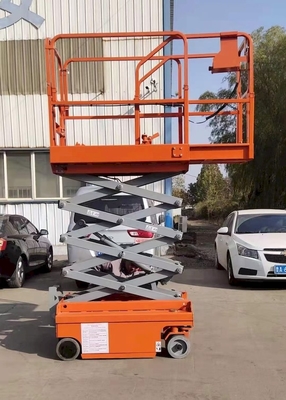

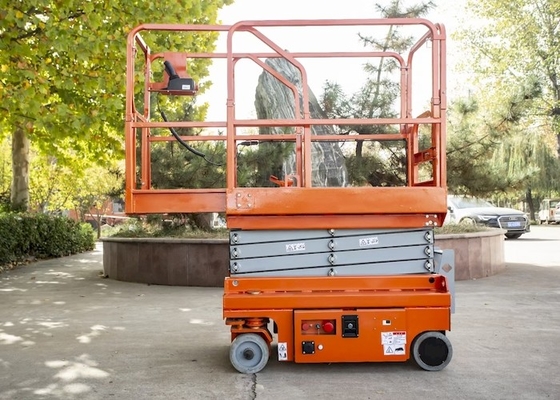

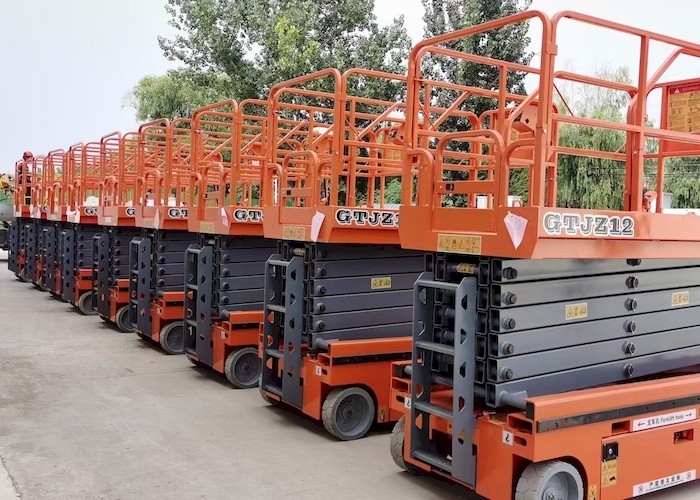

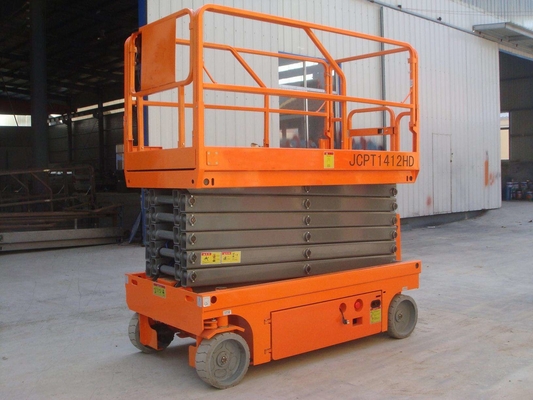

picture show:
