| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | GTJZ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD8000-18000/set |
| Packaging Details: | Standard export packing by FCL or LCL shipping. |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set per year |
| Warranty: | 1 Year | Lift Mechanism: | Hydraulic Scissor Lift |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Rated Loading Capacity: | 230kg, 320kg, Max. Up To 450kg |
| Max. Lifting Height: | 14m | Color: | Blue,Customers' Requirements |
| Material: | High Strength Manganese Steel | Power Source: | Battery |
| Application: | Aerial Work Platform | Origin: | China |
| High Light: | GTJZ 300kg Hydraulic Lifting Platform,GTJZ 14m Hydraulic Lifting Platform,Manganese Steel Mobile Aerial Platform |
||
High Strength Manganese Steel 14m 300kg Hydraulic Lifting Platform Aerial Work Platform
General description:
The scissor lift table can walk fast and slow at different heights, and can continuously complete up and down, forward, backward, steering and other work in a convenient operating platform in the air. This product adopts high-quality structural steel, laser welding electronic manipulator single-sided welding double-sided forming process, aerospace cartridge valve technology, the platform is equipped with alarm devices such as level alarm, balance valve, automatic safety board, etc., the platform is safe, reliable and durable, and the working height is adjustable. Up to 12 meters, with a load of 300 kilograms, the fence can be extended horizontally, which greatly expands the operating range, and is suitable for customers who have high-altitude operation requirements such as factory workshops, square lobby airports, and parks.
Specification:
| Type | SJY3 | SJY6 | SJY7.5 | SJY9 | SJY11 | SJY12 | |
| Max. working height | mm | 3000 | 6000 | 7500 | 9000 | 11000 | 12000 |
| Low table height | mm | 850 | 980 | 1250 | 1500 | 1600 | 1700 |
| Table size | mm | 1300×700 | 1850×880 | 1800×1000 | 1800×1000 | 2100×1150 | 2450×1350 |
| Capacity | kg | 450 | 450 | 450 | 450 | 450 | 450 |
| Up time | s | 16 | 54 | 72 | 83 | 88 | 90 |
| Power supply | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3.0 |
| Length | mm | 1450 | 2000 | 2000 | 2000 | 2250 | 2600 |
| Width | mm | 900 | 1080 | 1200 | 1200 | 1350 | 1550 |
| Height | mm | 980 | 980 | 1250 | 1500 | 1600 | 1700 |
| Deadweight | kg | 400 | 650 | 1100 | 1260 | 1380 | 1850 |
Features & Details:
► Only two hydraulic lines and four fittings, 90% more simple than similar products, greatly reducing the possibility of leakage.
► Equipped with no-marking solid tires, more flexible and suitable for traveling on soft ground.
► Complete self-diagnosis and alarm function can automatically troubleshoot and reset, and reflect equipment status, battery status and dangerous working conditions, such as pit, tilt, lift and so on.
► Equipped with the DC drive motor and single hydraulic cylinder, combined with unique scissor design, greatly improving the overall efficiency. Energy saving, so that the battery cycle can last twice as long or more.
Rough Terrain Scissor Lift:
Excellent crossing ability on the outdoor tough working sites.
Much larger working area and more loading capacity to generate great productivity.
Optional Hydraulic Leveling Oil Cylinder makes it more durable at uneven ground.
Work cycle is double than other scissor lifts.
Heavy Load Scissor Lift:
Simple structure, easy operation. Extra ordinary lifting capacity , up to 500kg. Larger work area (wider platform, no change on max lifting capacity on extension), higher efficiency.
Advantages:
Lifting with steadiness
Advanced controlling system and first class hydraulic components to ensure you reaching the expected height with good steadiness.
Operation with Stability
High tensile steel scissor mechanism , advanced processing technology and our slot sewing techniques can ensures you feeling as stable as on the ground.
Lift and Drive with High Speed
Premium brand hydraulic components, qualified reliable pumps and valves to ensure the excellent crossing ability in the rough terrain application.
Heavy Chassis , Great Stability
Reinforced chassis with thicker steel plate, hydraulic motor drive and enlarged balance weight ensure the great stability on work.

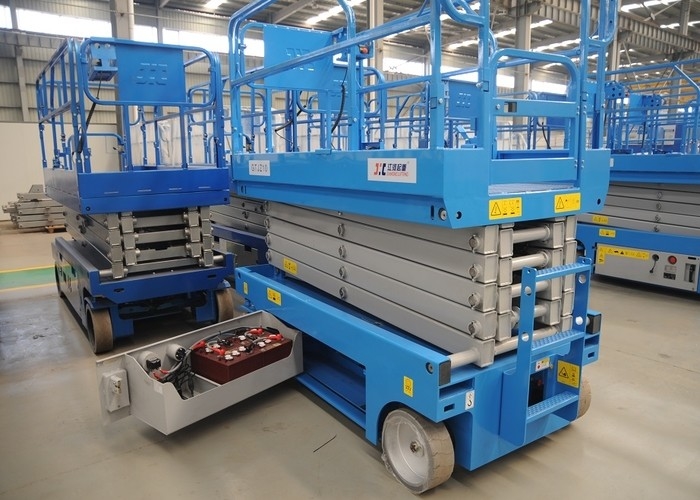

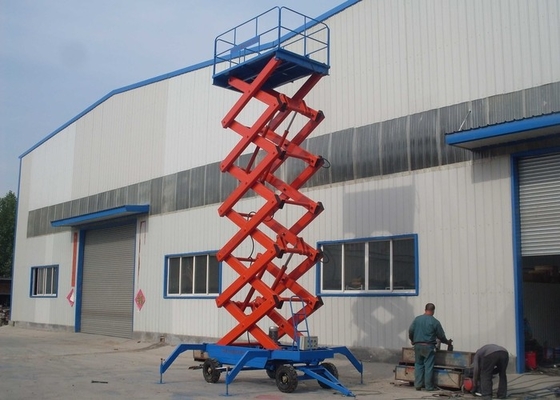

picture show:
