| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | SJG |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD2000-5000/set |
| Packaging Details: | Standard export packing by FCL or LCL shipping. |
| Delivery Time: | 30-35 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000set per year |
| Warranty: | 1 Year | Lift Mechanism: | Hydraulic Scissor Lift |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Rated Loading Capacity: | 1000kg To 3000kg |
| Max. Lifting Height: | 6m | Color: | Blue,Customers' Requirements |
| Material: | High Strength Manganese Steel | Power Source: | Electric |
| Application: | Lift Platform, Lift Table For Construction, For Industrial Applications, Indoor, Outdoor | Origin: | China |
| High Light: | AC380V Hydraulic Lifting Platform,Hydraulic Lifting Platform 2000*2000mm,2000*2000mm Loading Dock Scissor Lift |
||
Heavy Load Hydraulic Lifting Platform Lift Loading And Unloading Goods
General description:
Scissor type aerial work platform: It is a wide range of special equipment for aerial work. Its scissor mechanical structure makes the lifting platform have high stability, wide working platform and high bearing capacity, so that the aerial work range is larger, and it is suitable for multiple people to work at the same time. It makes aerial work more efficient and safer. It is widely used in aerial work in urban construction, oil field, transportation, municipal administration, factories and other industries. The scissor type aerial work platform is divided into fixed scissor type, mobile scissor type, self-propelled scissor type, and vehicle-mounted scissor type.
Installation Model:
1. One is to be installed on ground to load and then reach a certain height for unloading.
2. The other is installed in a lift pit. Then platform table is at the same level with the ground which is convenient to load the cargo onto it.
Specification:
| Item/model | SJG1-4 | SJG3-4 | SJG1-5 | SJG3-5 | SJG3-6 | |
| Rated capacity | kg | 1000 | 3000 | 1000 | 3000 | 3000 |
| Lifting height | mm | 4000 | 4000 | 5000 | 500 | 6000 |
| Max. height | mm | 4680 | 4800 | 5800 | 5960 | 7120 |
| Min. height | mm | 680 | 800 | 800 | 960 | 1120 |
| Platform size | mm | 2000*2000 | 2000*2000 | 2000*2000 | 2000*2000 | 2000*2000 |
| working voltage | V | AC380 | AC380 | AC380 | AC380 | AC380 |
| Motor power | kw | 2.2 | 5.5 | 2.5 | 5.5 | 5.5 |
| Net weight | kg | 1500 | 2000 | 1700 | 2500 | 3000 |
Note: Load capacity, platform size, and lifting height can be totally customized according to requirements.
Application:
Hydraulic scissor lift tables are widely installed in factory production lines, warehouses, ports, loading docks, 4S stores, workshops, etc.
Stationary Hydraulic Scissor Lift is used to lifting goods among different floors. It is widely used in factory, warehouse, logistic center, airport and so on. Those scissor lift tables can be totally customized with load capacity, platform size, and lifting height.
Santo's industrial lift tables are available in a variety of capacities and sizes with standard or custom designs. Designed to lift anything from pallets or crates to large industrial equipment, our lift tables come from many types: custom scissor lifts, heavy-duty versions, mini scissor lift tables, low profile lift tables, rotating lift tables and car scissor lifts. Browse our available options to find the right scissor lift table for your application!

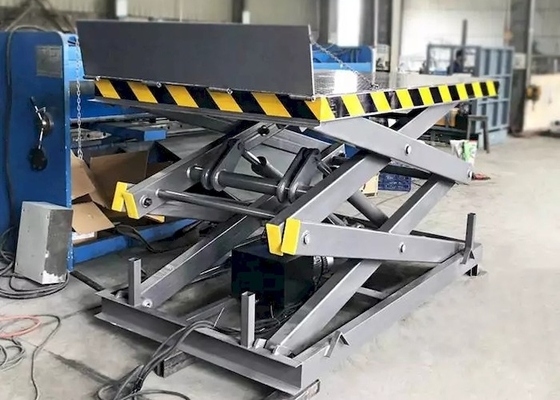

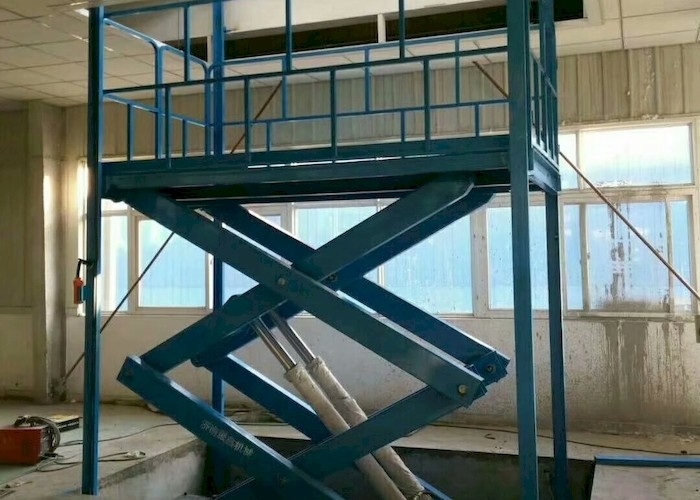

Picture show:
