ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton

ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton

  • ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton
  • ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton
  • ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton
ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton
Product Details:
Place of Origin: CHINA
Brand Name: SANTO
Certification: ISO, CE
Model Number: CXTS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-10000/set
Packaging Details: Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Delivery Time: 15-30 working days
Payment Terms: L/C, T/T
Supply Ability: 5000set/year
Contact Now
Detailed Product Description
Condition: New Warranty: 12 Months
Span: 7.5-31.5m After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service
Feature: Bridge Crane Max. Lifting Height: 6m~30m
Rated Lifting Moment: Different Max. Lifting Load: 20t
Product Name: Overhead Travelling Crane,Electric Single Girder 10 Ton Overhead Crane With Electric Hoist,5 Ton Single Girder Wire Rope Overhead Travelling Crane For Sale Application: Workshop,Warehouse,plants,factory,warehouse And So On
Control Method: Wireless Remote Control,Ground Control,pendant Control Rated Loading Capacity: 1-20t
Color: Yellow, Red, Or As Requirments Power Source: 3 Phase 380V 50hz Or Be Customized
Power Supply: 220V~480V 50/60Hz Crane Feature: Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT Crane,7.5tons Overhead Crane
Type: Hoist Single Girder Bridge Crane,Single Girder Overhead Crane,10 Ton Overhead Crane Lifting Mechanism: Electric Hoist
Lifting Speed: 0~8m/min Main Electrical Parts: Chint, Or As Requirments Siemens, Schneider
High Light:

HST 4 H4 Single Girder Bridge Crane


ASME single girder bridge crane


ISO A5 ANSI bridge crane 10 Ton

ISO A5 / FEM 2m / ANSI, ASME HST-4 H4 Single Girder Overhead Bridge Crane 1 Ton 2 Ton 3 Ton 5 Ton 10 Ton CE Certificated



Europe overhead crane advanced designed crane for the low headroom and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, long working lift etc. It could save your factory space and investment effectively.Its technology is advanced and design is based on international standard: DIN (Germany),FEM (Europe), and ISO (International).

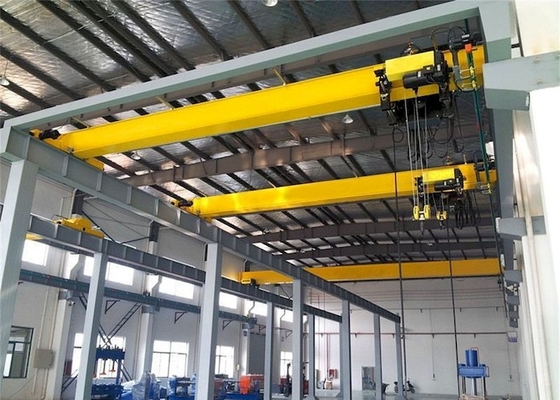

ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton 0


Safety Device:

1. Crane traveling limit switch
2. Overload protection system
3. Emergency stop syestem
4. Voltage lower protection function

5. Current overload protection system

6. Hoisting upper and lower limit switch


Main Features of FEM/DIN Single Girder Overhead Crane:
1. Computer optimized design of box-typed main girder, the full length of web plate is cut and formed through numerical control and its deflection is accurate.
2. Low clearance structure of trolley and reasonable size of hook allowing the crane wide application scope.
3. Arc wheels or flat wheels, anti-friction bearings, honey-typed buffers and anti-derailment devices.
4. Three-in-one motor drive, steeples speed control, hardened reducer, safety disc brake.
5. Good performance, runs smoothly with the steeples speed control
6. Shot blasting grade reaches Sa2.5 after welding and releasing internal stresses to insure the best performance of main girder.
7. Painting epoxy zinc-rich primer, and the thickness of oil film is 140 μm.



European Overhead Crane could be widely used in the machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil-aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handing situations, esp. Applied to material handling that needs precise positioning, large components precise assembly situation.


Standard Specification:

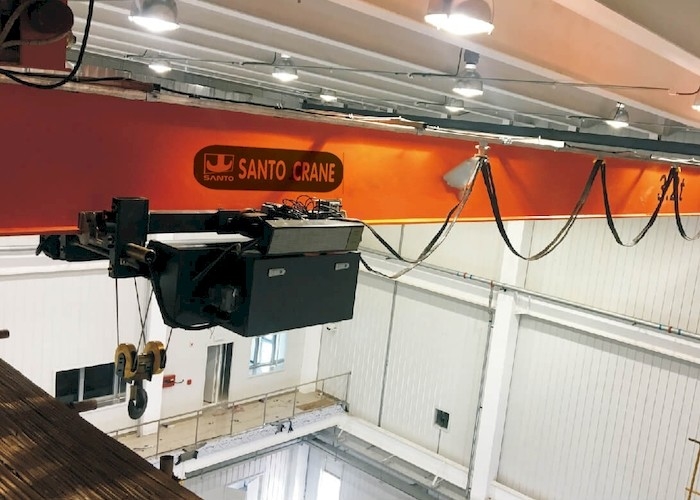

ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton 1



Capacity (t)



Lifting Height


Lifting Speed


Hoist Traveling


Crane Traveling

Speed (m/min)



1 7.5~31.5 6~12 0.8/5 2~20 3~30 P24
2 6~12 0.8/5 2~20 3~30 P24
3.2 6~12 0.8/5 2~20 3~30 P24
5 6~12 0.8/5 2~20 3~30 P24,P30
10 6~12 0.8/5 2~20 3~30 P30
12.5 6~12 0.66/4 2~20 3~30 P30
16 9~12 0.66/4 2~20 3~30 P43
20 9~12 0.66/4 2~20 3~30 P43
Duty Class ISO A5 / FEM 2m / ANSI, ASME HST-4 H4
Power 380V, 50Hz or Other
Temperature of Working Environment ﹣20℃~﹢40℃


Crane Advantage:


List in details

Main Description

Main Girder

Steel Structure

The main beam adopts box-type structure

 Hoist System

Lifting Motor

60% ED IP55

Lifting Gear

Hardened Gear

Lifting Brake

Disk Brake

Steel Wire Rope

High strength galvanizing

Main elec. parts


End carriage


European Design


Primer painting only

Joint bolts

10.9 High strength bolt


LT Electrical cabinet

Electric Box

IEC / IP55



Main electrical parts



Cable for trolley and lifting


Festoon rail & cable trolley

C Type Rail

Bracket for trolley LS


Bracket for bridge cubicle




Company Information:
Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country.

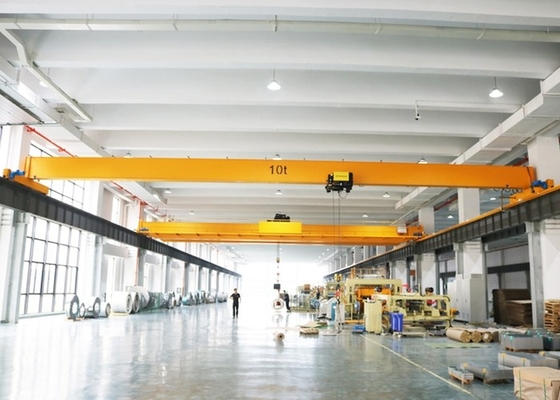

ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton 2


Reference Cases:

ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton 3


In order to save cost and time for you,we need your provide below information:

1.Which kinds of overhead crane do you need?

2.FOB or CIF price?(If CIF price,tell us your destination port)


4.Lifting capacity?(ton)

5.Lifting height?(m)


7.Which kind of material does if lift?

8.Working voltage?(V,HZ,Phase)
9.Working environment?
10.How many hours the crane works one day?
11.Any other requirement do you need?

ISO A5 ANSI ASME HST-4 H4 Single Girder Bridge Crane 1 Ton To 10 Ton 4
