| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1200-4800/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
| Color: | Green, Yellow, Blue, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
| Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | 0.3-8m/min | HS Code: | 84251100 |
| High Light: | 20 ton electric wire rope hoist,0.5T electric wire rope hoist,Pendant Control electric cable hoist |
||
Electric Wire Rope Hoists With Rope Guide Rod Type Power Breaker Safety Device, Overload Protection, Limit Switch
Description:
An electric wire rope hoist is driven by an electric motor to make heavy lifting easier. Furthermore, it is both secure and handy. Because electric wire rope hoists are more convenient than manual hoists, they are used by around 80% of businesses. From general manufacturing, to tools and die plants, or steel foundries.These are just a few industries where a wire rope hoist is needed to lift and move heavy loads of tools, raw materials, or even finished products.
Application:
The hoist is mounted to the trolley and performs the actual lifting function via a hook or lifting attachment. There are two basic types of hoist. Our Santo Wire Rope Hoist which is very durable and will provide long term, reliable usage. The other type of hoist is Chain Hoist.
Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Advantages of SANTO Wire Rope Electric Hoist:
Superior quality and heavy-duty hoists.
Easy as well as potent load handling.
It is useful for crane modifications and plant reconstruction.
DC Disk motor brake.
High-quality rope for wear resistance.
Models that are adaptable and offer a wide range of options based on exertion.
Comprehensive, compact design.
Easily available in the market.
Portable and weatherproof.
Detailed Features:
Work duty is high,can be applied to all kinds of bad place,and the price is good.
| Rope drum | high-quality seamless pipes and processed by numeral control machine, after the special finishing, the rope groove on reel works coordinately with rope guide to efficiently prevent rope loose and tangling. | |
| Steel rope | Employ import steel rope with high strength which has tensile strength of 2160N/m2, with good safety performance and long service life. | |
| Rope guide | Strong abrasion resistance and good self-lubricating performance, which greatly reduces the wear of steel rope as main force safety components and then enhances safety of hoisting mechanism. | |
| Motor of hoisting mechanism | It has low current for start and large torque; With soft starting and good performance in speed up; Have long service life; The technique parameter comply with standards of FEM and HMI; With high rotational speed and low noise; |
|
| Brake | Have fast movement and high reliability. It's maintenance-free and self-regulated; Employ dustproof design and long service life. |
|
Note: can be according to your request make non-standard products.
Standard Technical Specification of Wire Rope Electric Hoist:
| Model | CD | MD | |||
| Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 | 10, 20, 30 | ||
| Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
|
Lifting mechanism |
Lifting Speed (m/min) |
8 | 7, 3.5 | 8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
| Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
| Duty Class | M3 | ||||
| Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
| Working temperature | -20~40℃ | ||||
| Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
| Brake | Integrated on motors | ||||
| Control model |
Pendant pushbutton control or wireless remote control |
||||
NOTE: According to your needs, we can also provide electric hoist to custom.
Testing System:
SANTO invests a lot in hi-tech equipment to improve strength of the enterprise.
Arrivals of large enterprises have enhanced automation of production and strengthened scientific content and quality of SANTO Products.
SANTO has its own technical test center which recognized by national standards on labs audited by CNAS

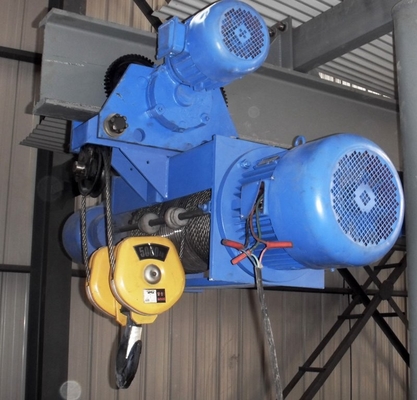

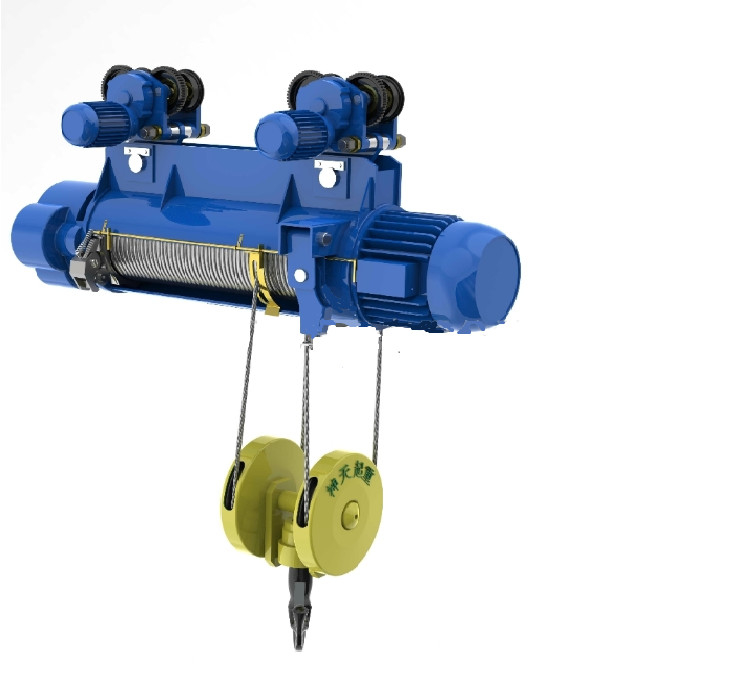

Photos:
