| Place of Origin: | CHINA |
| Brand Name: | SANTO |
| Certification: | ISO, CE |
| Model Number: | CD/MD/BCD/BMD/HC/HM/YH |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2000-5800/set |
| Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
| Delivery Time: | 15-30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 9000set/year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
|---|---|---|---|
| Max. Lifting Height: | 6m~20m | Rated Lifting Moment: | Different |
| Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-10t |
| Color: | Green, Yellow, Blue, Or As Requirments | Safety Device: | Dual Brake, Overload Protection, Limit Switch |
| Power Supply: | 220V~480V 50/60Hz 3P | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
| Lifting Speed: | Single Speed 8m/min, Double Speed 2/8 M/min | HS Code: | 84251100 |
| High Light: | 13KW Electric Lifting Winch,Metallurgy 3KW Electric Lifting Winch,1380r/min flame proof hoist |
||
Metallurgy Electric Hoist Metallurgy Crane For Lifting Molten Metal With Safety Dual Brake And Heat Resistance Shield
Description:
Metallurgy Electric Hoist is a perfect ligt-duty metallurgy hoisting equipment that can be mounted on the flange bottom of the single girder crane, as well can be installed under workshop fixed suspending beam to use as monorail system individually. Metallurgy Electric Hoist equipment mainly used for lifting molten metal. Its standard lifting capacity is less than or equal to 10t and lifting height is less than or equal to 20m. The working environment temperature is -10℃~60℃ and relative humidityis less than 50% under the condition of 40℃ temperature.
Metallurgy electric Hoist has many safety device such as double braking, double spacing, and heat insulation shield and so on.
Safety features:
1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operator
4. Main lifting motor: with thermal protection and currency protection.
Advantages:

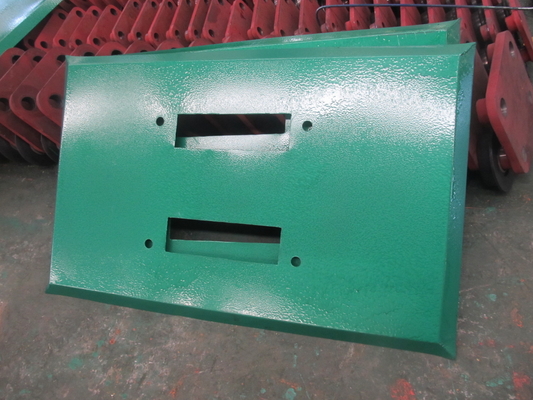

Two sets of independent brake, double spacing, heat insulation plate
Reasonable structure, Favorable performance
Smooth starting and stopping system, Safe and reliable traveling mechanism
Low noise, commodious cabin and good view
Convenient maintenance, excellent exchange for parts and components
Long service life, High mechanical efficiency
Remote control, No flashlight door handle line limit
Overload protection, Traveling and lifting distance limit
| Rope drum | high-quality seamless pipes and processed by numeral control machine, after the special finishing, the rope groove on reel works coordinately with rope guide to efficiently prevent rope loose and tangling. | |
| Steel rope | Employ import steel rope with high strength which has tensile strength of 2160N/m2, with good safety performance and long service life. | |
| Rope guide | Strong abrasion resistance and good self-lubricating performance, which greatly reduces the wear of steel rope as main force safety components and then enhances safety of hoisting mechanism. | |
| Motor of hoisting mechanism | It has low current for start and large torque; With soft starting and good performance in speed up; Have long service life; The technique parameter comply with standards of FEM and HMI; With high rotational speed and low noise; |
|
| Brake | Have fast movement and high reliability. It's maintenance-free and self-regulated; Employ dustproof design and long service life. |
|
Note: can be according to your request make non-standard products.
Specification:
| Lifting capacity(t) | 2 | 3 | 5 | 10 | |
| Lifting height(m) | 9~20 | 9~20 | 9~20 | 9~20 | |
| Lifting speed | 8(2/8) | 8(2/8) | 8(2/8) | 7(1.75/7) | |
| Wire rope | Dia | 11 | 13 | 15 | 15 |
| spec | 6 x 37 + 1 | ||||
| Hoisting motor | Type | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 |
| Power(kw) | 3 | 4.5 | 7.5 | 13 | |
| 0.75/3.0 | 1.1/4.5 | 2.0/7.5 | 3.25/13 | ||
| Ratation speed(r/min) | 1380/330 | 1400/330 | |||
| Travelling | Type | ZDY112-4 | ZDY121-4 | ||
| Motor | Power(kw) | 0.4 | 0.8 | ||
| Rotate speed | 1380(r/min) | ||||
| NO of connecting | 300 | ||||
| Working system | Intermediate FC=50% | ||||
| Power source | 380V 50HZ 3phs | ||||
NOTE: According to your needs, we can also provide electric hoist to custom.

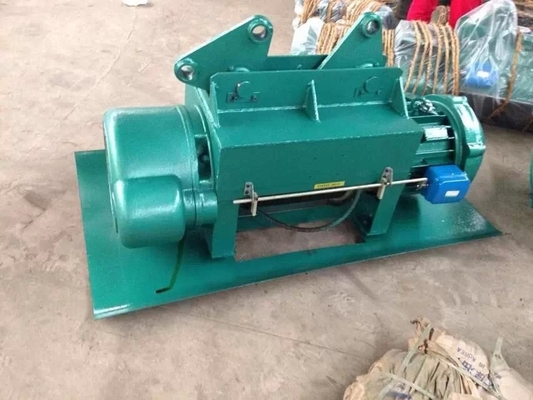

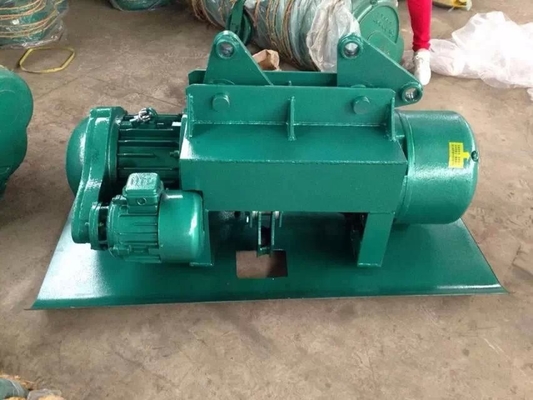

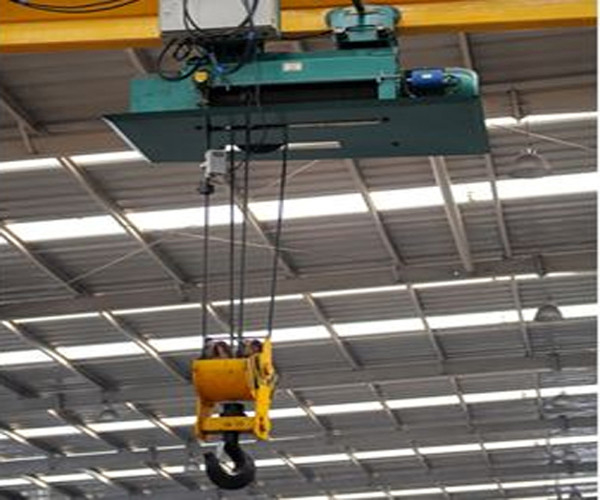

Photos:
