Place of Origin: | CHINA |
Brand Name: | SANTO |
Certification: | ISO, CE |
Model Number: | CD/MD/BCD/BMD/HC |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD1200-4800/set |
Packaging Details: | Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth |
Delivery Time: | 15-30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000set/year |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Field Maintenance And Repair Service | Feature: | Wire Rope Hoist |
---|---|---|---|
Max. Lifting Height: | 6m~30m | Rated Lifting Moment: | Different |
Control Method: | Wireless Remote Control, Pendant Control | Rated Loading Capacity: | 0.5-20t, Max Up To 50t |
Color: | Green, Yellow, Blue, Or As Requirments | Power Source: | 3 Phase 380V 50hz Or Be Customized |
Power Supply: | 220V~480V 50/60Hz | Main Electrical Parts: | Chint, Or As Requirments Siemens, Schneider |
Lifting Speed: | 0.3-8m/min | HS Code: | 84251100 |
High Light: | 5 ton electric wire rope hoist,electric wire rope hoist 3 ton,2 ton electric wire rope hoist |
China Supplier 1 Ton 2 Ton 3 Ton 5 Ton 10 Ton Electric Wire Rope Hoist For Single Girder Crane With Competitive Price
Description:
Model CD1 MD1 Wire rope Electric Hoist is a small-sized lifting equipment, It has the advantages of light weight, small size, compact structure, more varieties of different specifications, running smoothly. They can do it in the same plane as straight, curved, recycling use of aerial orbit, and can also be used in crane such as steel electric single track beam, manual single girder, double girder bridge EOT crane, suspension under running, cantilever jib crane, gantry crane etc.
Application:
Steel 10 Ton Electric Wire Rope Hoist High Lift Multi Function Mini Elevator is widely used in factories, mines, harbors, terminal, warehouses and cargo storage areas, essential in raising working efficiency and improving working conditions.
Advantages of SANTOWire Rope Electric Hoist:
1, High Efficiency and Make the Most of space
2, Accurate orientation,highly-efficient operation,improved logistics efficiency.
3, Safe and reliable,monitored operation,easy maintenance.
4, Modularized desigh,low maintenance cost,perfect spare parts and components services
Detailed Features:
Work duty is high,can be applied to all kinds of bad place,and the price is good.
Rope drum | high-quality seamless pipes and processed by numeral control machine, after the special finishing, the rope groove on reel works coordinately with rope guide to efficiently prevent rope loose and tangling. | |
Steel rope | Employ import steel rope with high strength which has tensile strength of 2160N/m2, with good safety performance and long service life. | |
Rope guide | Strong abrasion resistance and good self-lubricating performance, which greatly reduces the wear of steel rope as main force safety components and then enhances safety of hoisting mechanism. | |
Motor of hoisting mechanism | It has low current for start and large torque; With soft starting and good performance in speed up; Have long service life; The technique parameter comply with standards of FEM and HMI; With high rotational speed and low noise; |
|
Brake | Have fast movement and high reliability. It's maintenance-free and self-regulated; Employ dustproof design and long service life. |
Note: can be according to your request make non-standard products.
Specification:
Load capacity (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
Standard lift height (m) | 3-9 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Hositing speed (m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | 3.5(3.5/0.35) | 3 |
Traveling speed (m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | 20 |
Recommend track | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45b-63c | 56b-63c |
Standard power source | 380V 50HZ 3 phase |
NOTE: According to your needs, we can also provide electric hoist to custom.
Testing System:
SANTO invests a lot in hi-tech equipment to improve strength of the enterprise.
Arrivals of large enterprises have enhanced automation of production and strengthened scientific content and quality of SANTO Products.
SANTO has its own technical test center which recognized by national standards on labs audited by CNAS

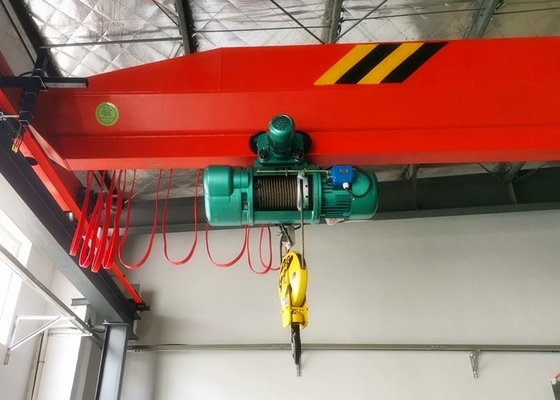

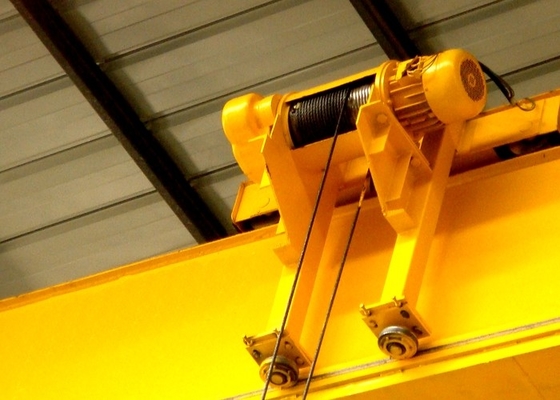

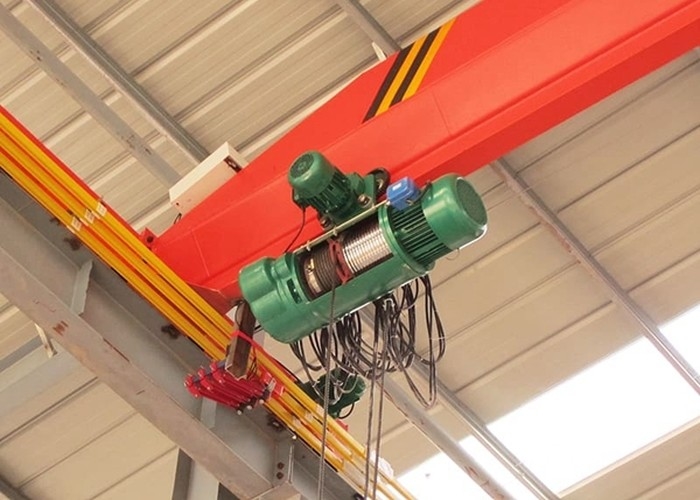

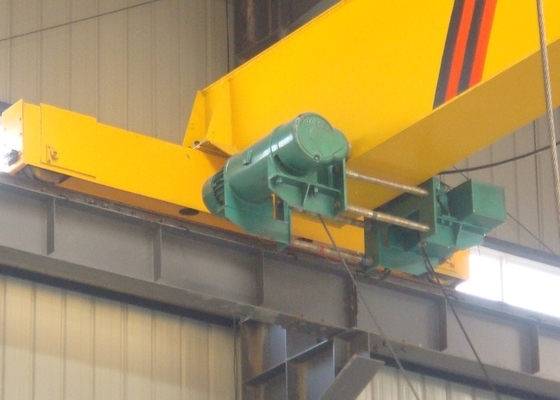

Photos:
